The Load 75 in stock and backed by the best service. Even more space for your freedom.


The Load 75 in stock and backed by the best service. Even more space for your freedom.
Riese and Muller

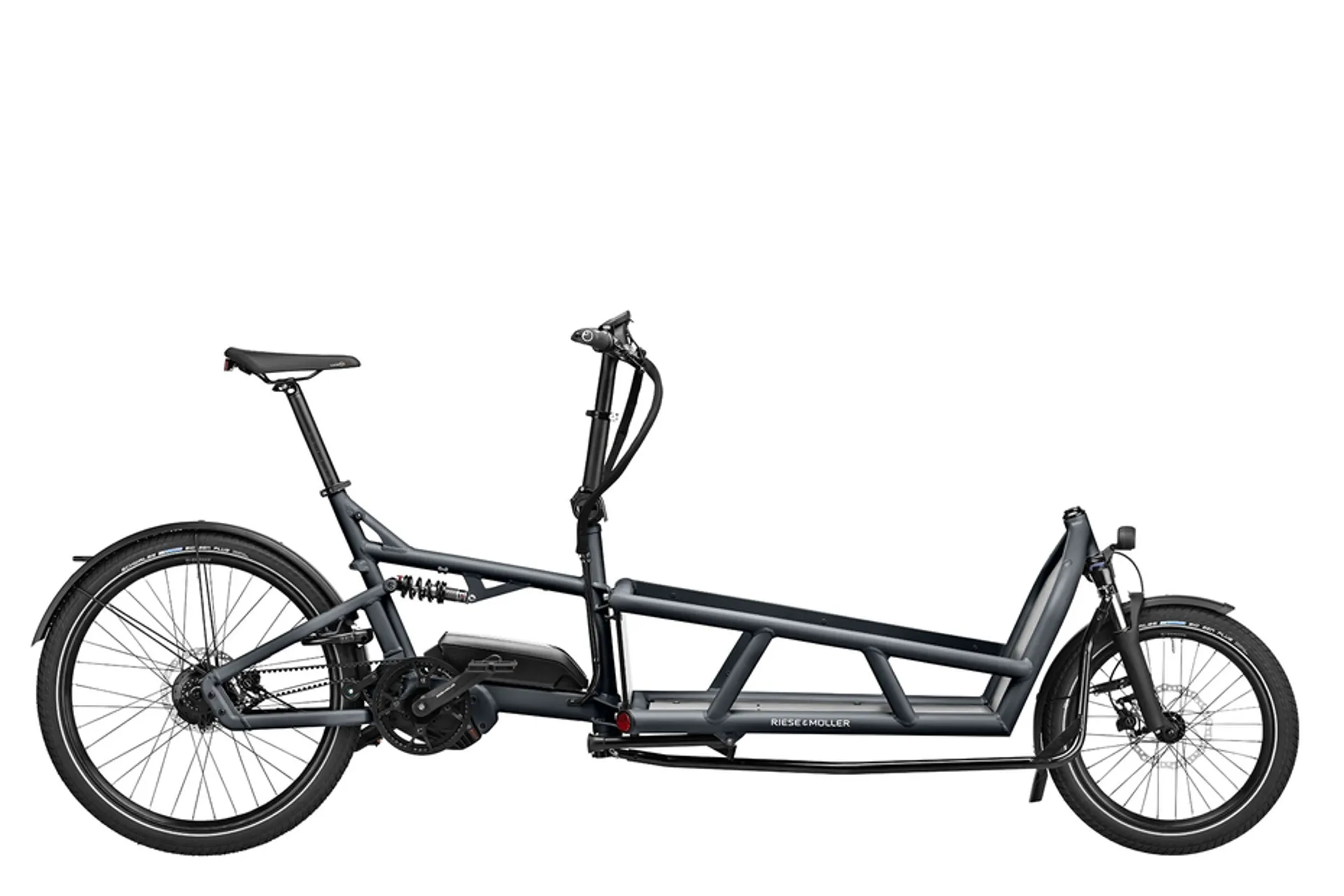

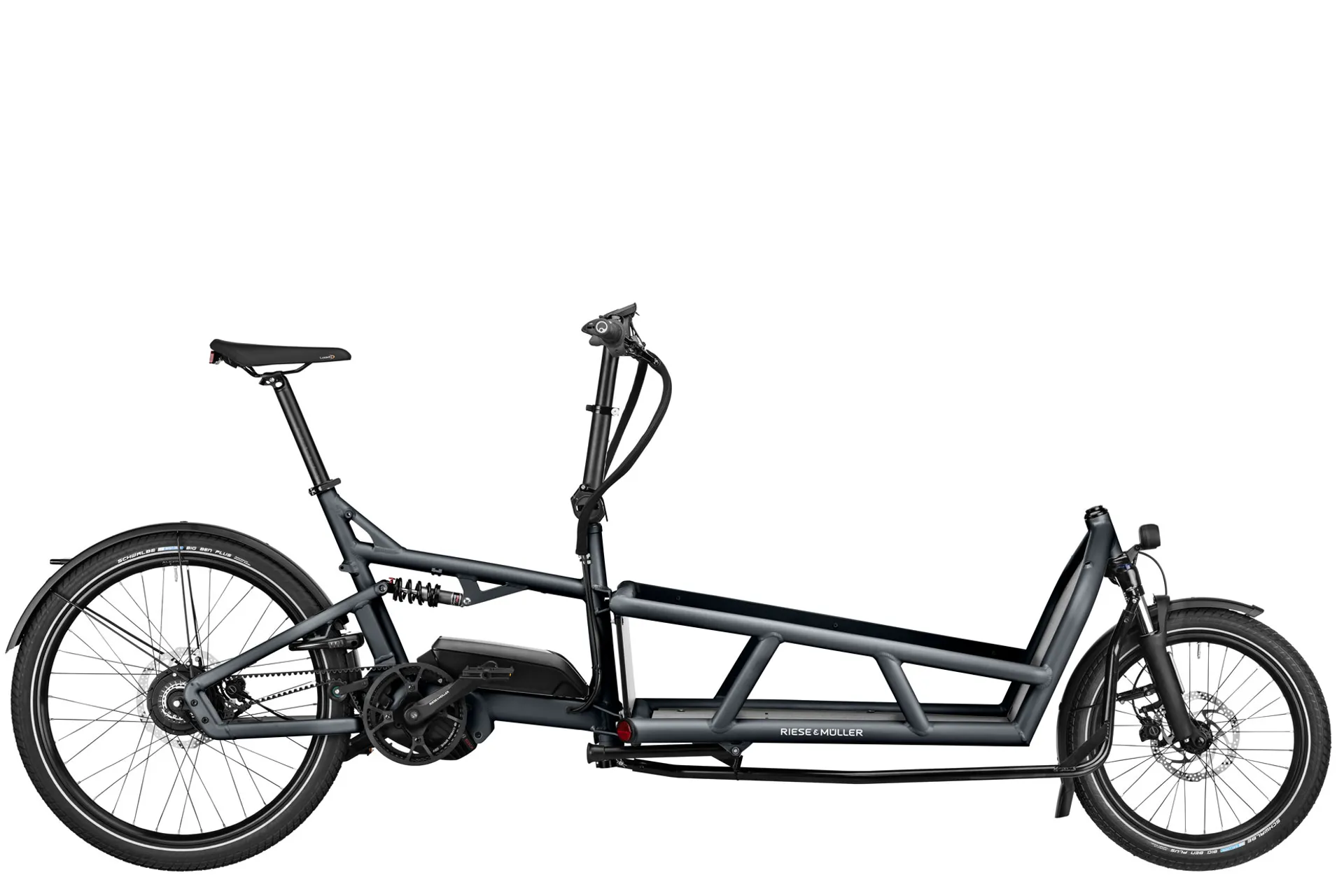

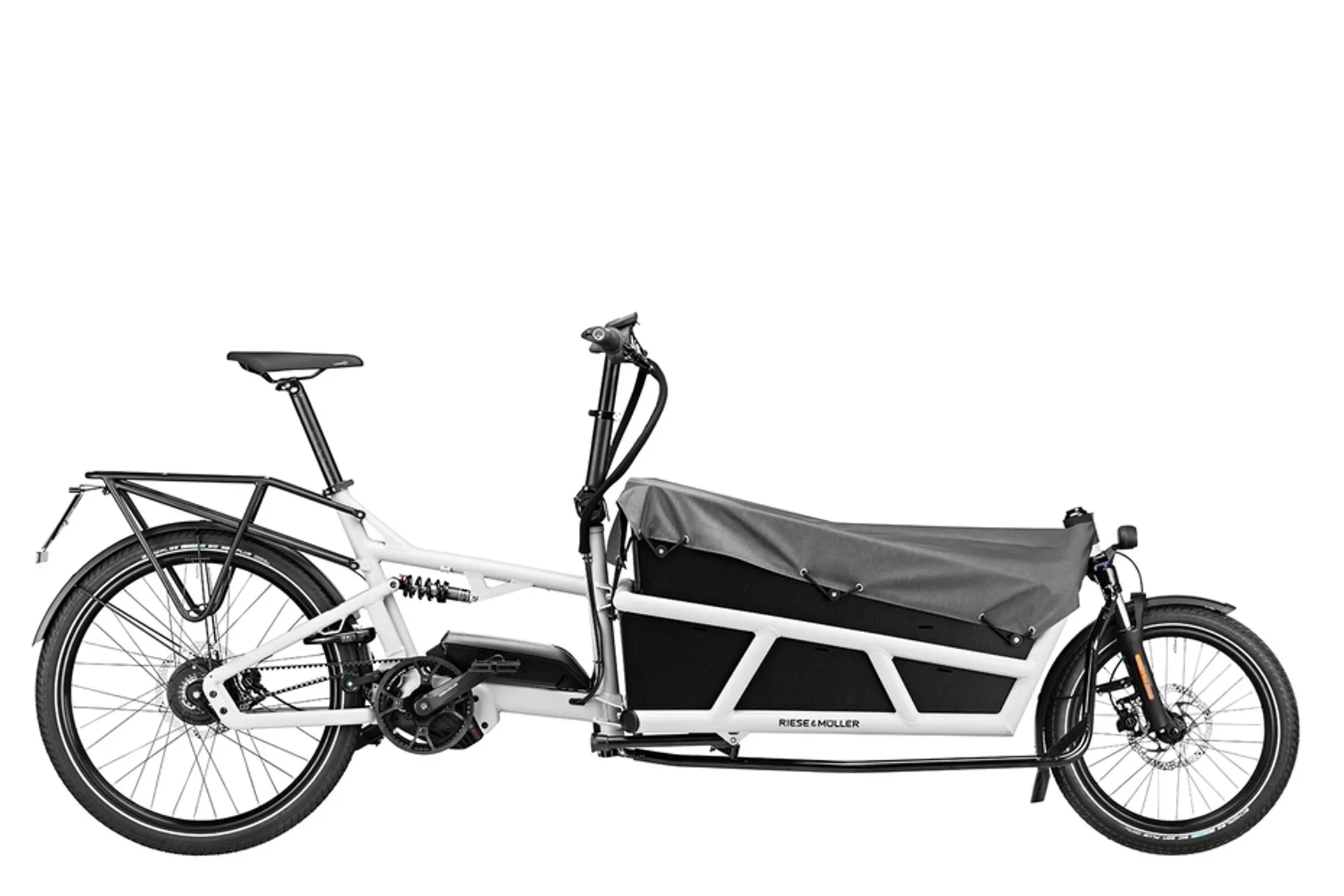

Riese and Muller Load 75 Vario Electric Bike Coal Grey Matt

£6,819.00 £6,889.00 1% off

With Pre-Order, you can purchase the latest items added to our store in advance of them arriving with us.

Your Pre-Order is prioritised (at no additional charge); meaning that as soon as the product arrives with us, we can wrap it straight back up; ready for collection via Click & Collect or despatch to you — it often never even hits the stock room shelves!


With Pre-Launch, the date when we expect to receive the product ourselves is still a little too hazy to be confident in accepting Pre-Orders.

So, instead, you can submit your email address against the item you are interested in and we will email you as soon as stock arrives on the system.

Estimated Delivery & Collection Dates

Estimated Delivery & Collection Dates are given on Pre-Order and Pre-Launch products. They are for indication purposes only and can change at any time without notice.

The dates we provide are based on indications given by our suppliers. Whenever we get updated information from our suppliers we will endeavour to update the Estimated Delivery & Collection Dates provided on product pages.

We estimate this will be ready for despatch to you or collection via Click & Collect on Undetermined

Hassle free returns & 28 day echange policy.

-Easy *Fast *Fair -

Download Returns PDF

Returns and Exchanges– for electric bikes and accessories

If you need to cancel the order or make an exchange under the distance selling regulations you must notify us within 14 days of receiving the item after which you will have a further 14 days to return the item. To do so please download the return form, complete it and include with the returned item. It couldn't be easier. We will process your exchange/refund as soon as we receive and open your return.

Items must be returned to the store you bought it from or your nearest store if purchased online. Shipping costs are paid by the buyer and are non refundable.

Refunds can only be made to the original card used for payment and if not known or available then we can at best offer a store credit to be used against future purchases.

Items must be returned in their original condition complete with all packaging, manuals, labels etc.

Custom, customised and special orders cannot be cancelled or returned. Riese & Muller eBikes are always configured to customer specifications and are therefore special orders and sales are final.

Used eBike Returns - We don't want you to be stuck with a bike you don't feel is right and so we accept returns for used bikes up to 28 days after purchase on the following conditions: 1. The condition is like new 2. All components and component packaging are present 3. All shipping, customisations and £10/mile of use will be charged for (minimum £100) along with a £50 restocking fee. 4. Used eBikes can only be exchanged and not refunded and this is entirely at our discretion.

Faulty Items
Faults - If your order arrives damaged or developes a fault we will use our wealth of experience as the UKs' very first ebike specialist to solve the issue quickly for you. Based on our support call history less than 16% of cases have required a visit to one of our sores. You can return a faulty item for a full refund within 30 days after which we reserve the right to have the opportunity to repair any faults. If you need any assistance we are here to help (even out of hours) simply contact, your nearest store or use our contact form.

Opened eBike Parts

We cannot accept returned eBike parts if the packaging has been opened. This is because components connected to faulty bikes may be damaged. To avoid disappointment we have a no nonsense professional diagnosis service available at all of our stores for a very reasonable set fee.

Riese and Muller Load 75 Vario Electric Bike Coal Grey Matt


Brand:Riese and Muller


The Load 75.

Even more space for your freedom.

Feel the wind in your hair, enjoy the speed, quick stops and fast starting. And take as much with you as you need. This is what freedom feels like. With its low centre of gravity, Riese & Müller Control Technology and a huge loading surface, the Load 75 combines riding dynamics and load options, like no other E-Cargo bike. The strong, latest-generation Bosch Performance CX motor delivers hitherto unknown power. And the Load 75 is also extremely reliable, thanks to its high-grade components.

Load 75 Options & Upgrades

Display Nyon - £280.00

SmartphoneHub - £94.00

Not for rohloff and HS models

DualBattery 1000 - £839.00

Additional PowerPack 500

GX option - £47.00

Fat Tire All-Terrain, flat pedals

Carrier - £122.00

Optional for all models, standard equipment with all HS models

Load 75 Low side walls, interior** - £75.00

Made of weather-resistant plastic, fitted inside

Load 75 Low side walls, interior, with child cover** - £559.00

Made of weather-resistant plastic, fitted inside, child cover offers protection from rain or insects, fitted quickly

Load 75 High side walls with tarpaulin** - £233.00

Made of weather-resistant plastic, fitted inside, tarpaulin offers protection from rain

Load 75 High side walls with lockable hard cover** - £280.00

Made of weather-resistant plastic, fitted inside, lockable hard cover protects luggage

Load 75 Two child seats** - £187.00

Used in combination with side walls, belts for two children

Load 75 Three child seats with footwell** - £606

Used in combination with side walls, two rear child seats, belts for 3rd child, footwell for children, not in combination with tarpaulin and lockable hard cover

Load 75 Three child seats with footwell, luggage shelf** - £606.00

Used in combination with side walls, two rear child seats, belts for 3rd child, footwell for children, space to store bags or drinks crates, not in combination with tarpaulin and lockable hard cover

Additional lock chain 130 cm - £47.00

Complements the standard frame lock, including chain bag
Technical Information


The Load 75 vario in detail

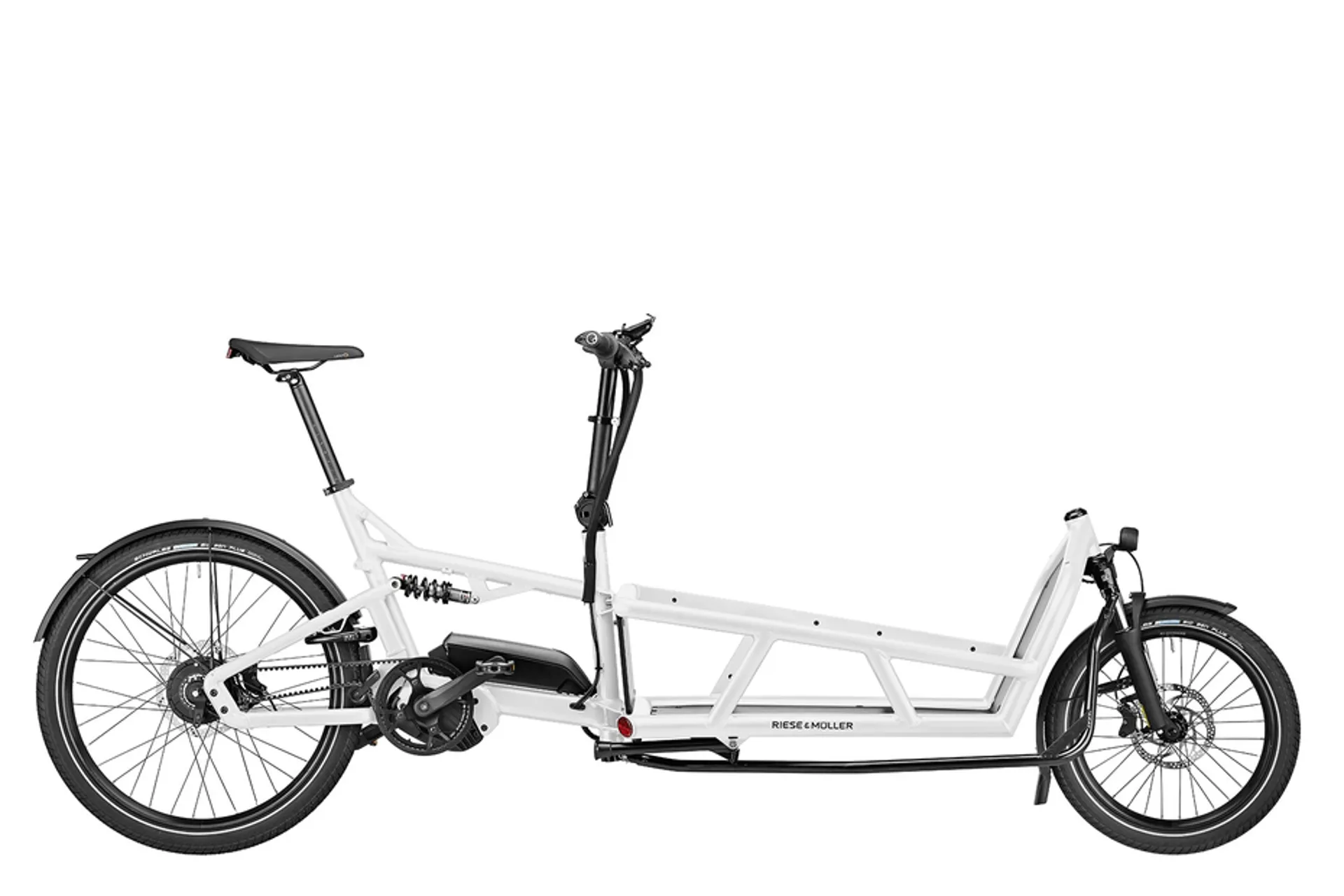

Frame colourcoal grey matt*; white*
Suspension forkSuntour Mobie A32, 20", 70mm

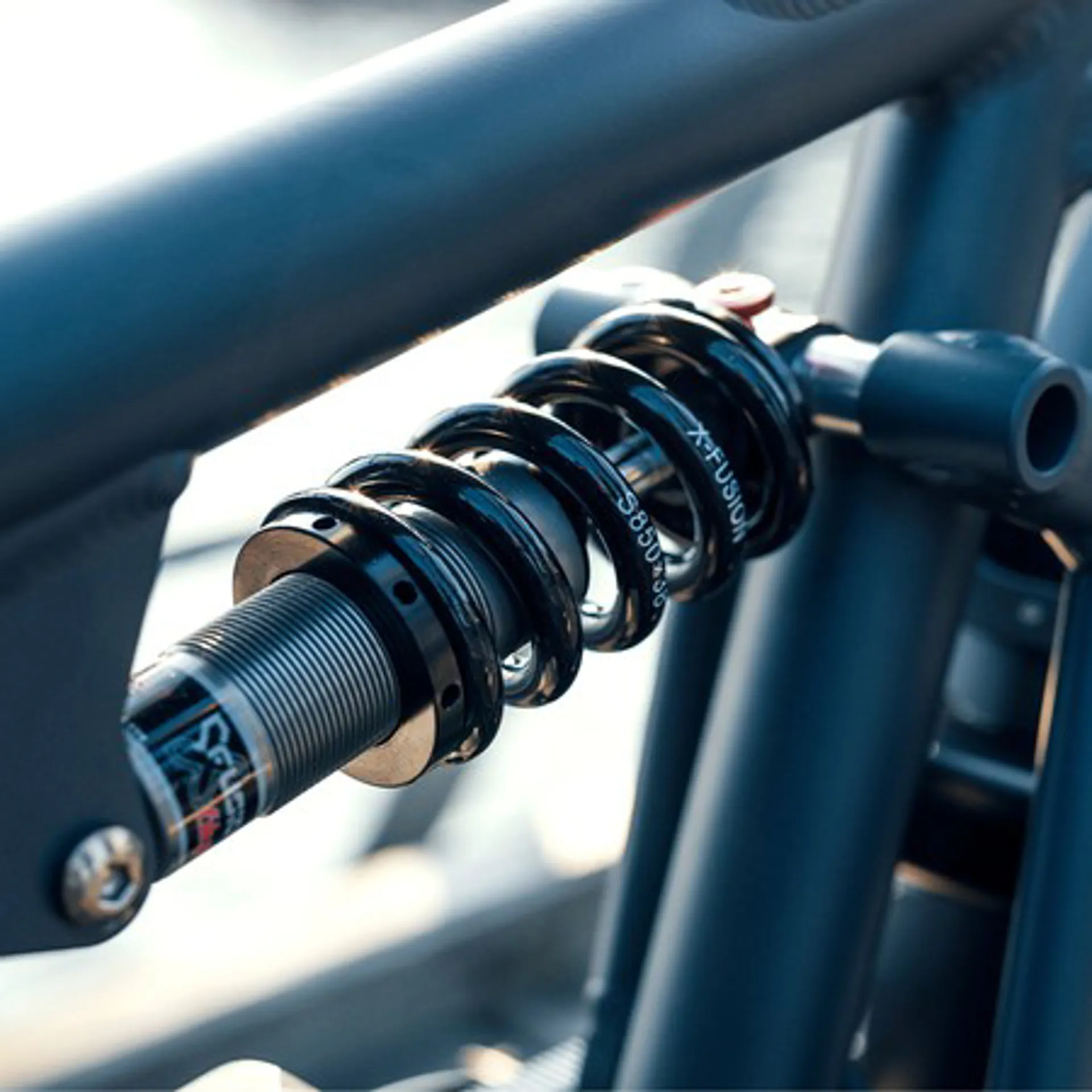

Rear shockX-Fusion Glyde
HeadsetAcros AZX-221, block lock; TH No. 9, semi-integrated
SeatpostJD/Riese & Müller, Alu, 34,9 x 430mm
SeatclampTranzX, 40,0 mm, QR
TiresSchwalbe Big Ben Plus 55-406 Reflex; Schwalbe Big Ben Plus 55-559 Reflex; Schwalbe Smart Sam 57-559*; Schwalbe Smart Sam 60-406*
TubesSchwalbe AV13; Schwalbe AV7
RimsAlex MD30, 20"; Alex MD30, 26"
Front hubNovatec Disc 32H
Rear hubEnviolo 380, 36H

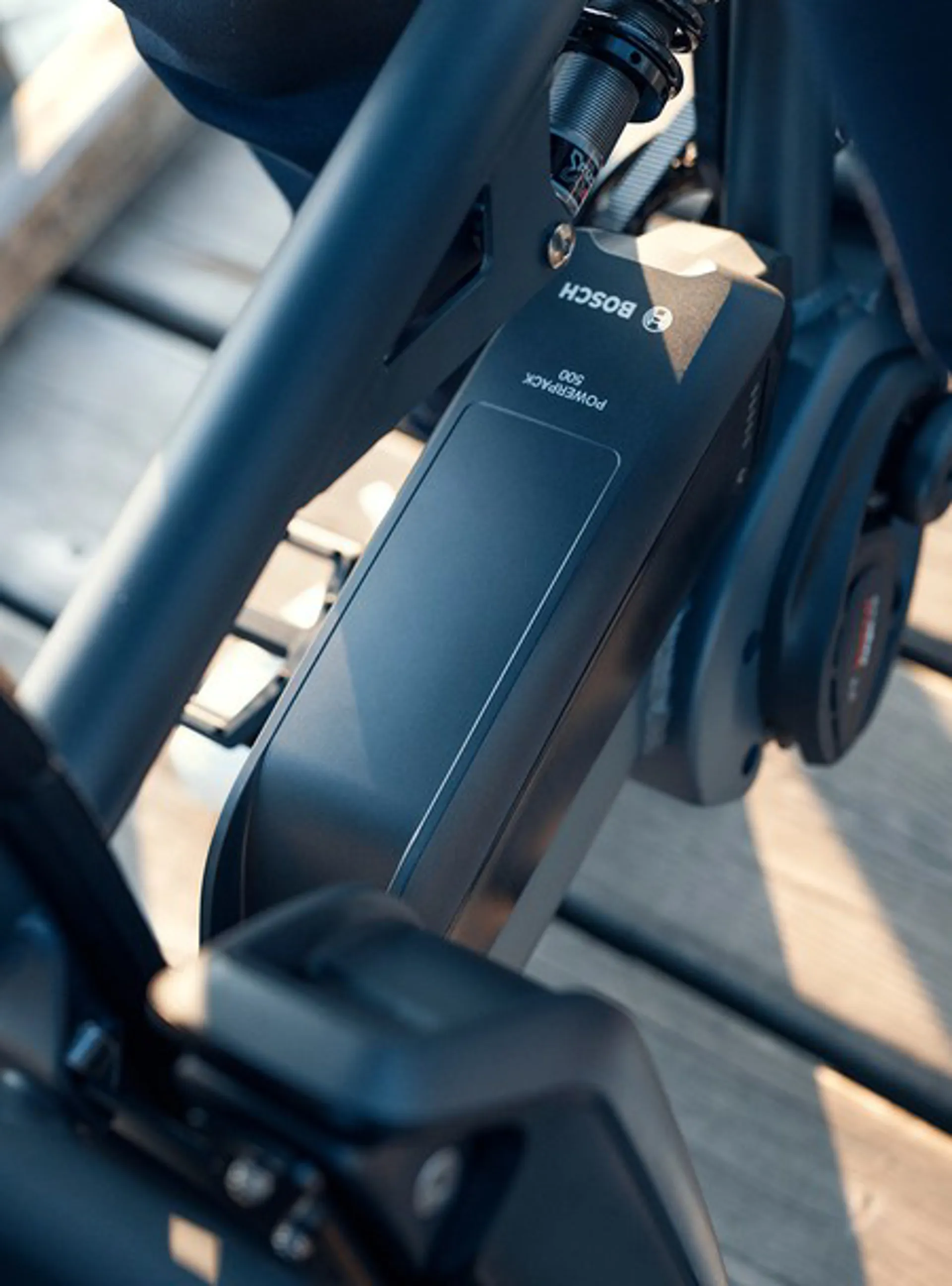

BatteryBosch PowerPack 500 Performance, 36 V, 13,4 Ah/500Wh; Bosch PowerPack 500 Performance, 36 V, 13,4 Ah/500Wh ( 2x )*

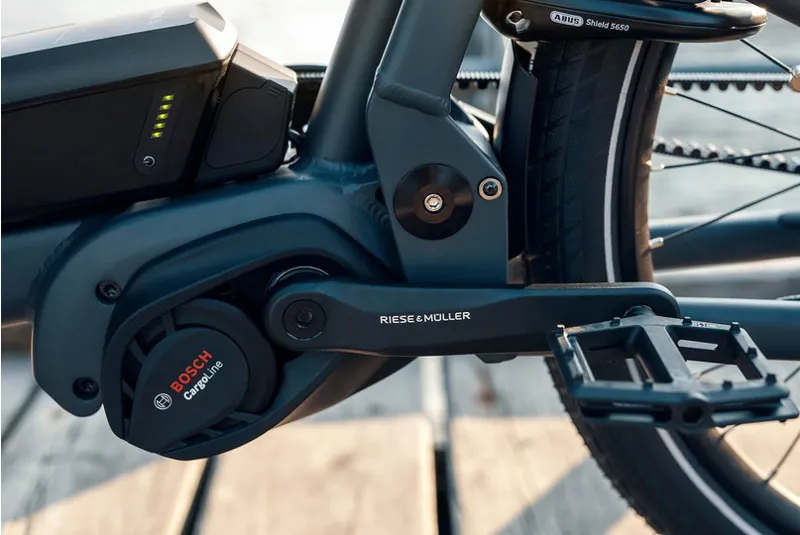

MotorCargo Line Cruise (Gen4)
DisplayBosch Intuvia; Bosch Nyon*; Bosch SmartphoneHub*
CranksetFSA/Riese & Müller, 170 mm
Chain ring55T, for Gates drive belt CDX
Chain guardRiemenschutzring
ChainGates drive belt CDX
Pinion22T, for Gates drive belt CDX
SaddleSelle Royal New Lookin Moderate Male
PedalsVP-183; VP-538*
ShifterEnviolo grip shift, continuous
HandlebarFSA V-Drive, 31,8 mm, Alu
StemRiese & Müller, adjustable height and angle
GripsErgon ergonomic
BrakesTektro TRP C 2.3 disc brake
Front lightSupernova M99 Mini Pro-25
Tail lightSupernova M99, integrated brake light
MudguardsSKS A65R
Luggage rackRiese & Müller
KickstandKickstand Riese & Müller
LockABUS Shield*
RX HardwareRX Chip (für RX Services)*
Sizing Information

Frame geometries

The Load 75 vario in numbers

Top tube length [cm]59-77
Head tube angle [°]70
Seat tube angle [°]68
Trail [mm]54
Wheelbase [cm]200,5
Bottom bracket height [cm]30,5
Stand-over height [cm]62,5
Chainstay length [cm]59
Overall length [cm]46,5
Wheel size ['']front: 20/rear: 26
Head tube length [mm]85
Headset size ['']1 1/8
Front suspension travel [mm]70
Effective rear suspension travel [mm]80
Rear shock length [mm]165
Front shock mounting width [mm]22
Rear shock mounting width [mm]22
Front shock locking screw8
Rear shock locking screw8
Suspension ratio2,2
Rear dropout width [mm]135
Gear ratio [m]2,59-9,83
Weight [kg]38,1
Gross vehicle weight rating [kg]200
Weight rating: Luggage rack [kg]20
Weight rating: Handlebar bag/basket [kg]Nein
Childseat compatibilityJa
Trailer compatibility: Single wheel/single attachment pointNein
Trailer compatibility: Two wheel/single attachment pointJa
Compatibility: Bike-Trailer (through hub/quick release attachment)Nein

Professional Opinion


Control Technology

Fun and safety are not mutually exclusive.

Admittedly, not everyone immediately thinks of fun on two wheels when you hear the words “Cargo E-Bike”. But this changes when you sit on a Load with Control Technology. The optimised chassis and the finely tuned full suspension ensure optimum comfort, safe riding even at higher speeds, excellent road holding and thus top-of-the-range riding dynamics. Vibrations and hard impacts, such as from cobblestones or kerbs, are significantly reduced and you are in control.

Safely transport up to three children

The greatest for the little ones.

Up to three children can be comfortably and safely accommodated on the Load 75. Well-protected under a practical cover when it’s raining. One of the children faces the rider while other two sit facing the direction of travel. The extra spacious footwell prevents your passengers from getting in each other’s way, guaranteed to contribute to a relaxed shared riding experience.

Flexible load transport and large cargo area

Maximum freedom of transport.

With a 50% larger cargo area than with the “small” Load, everyone’s cargo gets to where it needs to go. Whether camping equipment, the weekly shop, transporting children, or tools and materials for customers who use the Load 75 for business purposes. Virtually everything can be fitted in. And nothing disrupts the safe and agile riding experience. The low centre of gravity, a permitted total weight of up to 200 kg, the many individual cargo equipment options and the sophisticated Control Technology make the Load 75 perfectly configurable for all requirements. This means more possibilities and greater freedom. Whatever you have in mind.

Safety equipment

Long-lasting visibility.

The daytime running light of the ultra-bright Supernova M99 Mini Pro headlamp with main-beam function offers top lighting conditions at night and also increases your visibility during the day. And if you need to stop quickly, the exceptionally bright Supernova M99 Tail Light ensures your safety while the Tektro TRP C 2.3 cargo brake packs quite a punch. The four pistons and thicker brake discs boost your braking power. This ensures your safety even with heavier loads, all the while reducing wear.

Adjustable seating position

Change riders with ease.

Thanks to the angle- and height-adjustable stem and the adjustable saddle height, the seat position can be altered to accommodate body sizes of from 1.50 m to 1.95 m, and adapted from sporty to comfortable. The overall geometry of the bike can be perfectly adjusted to the rider in just a few easy steps. This flexibility makes the Load ideal for shared use, for example within a family.

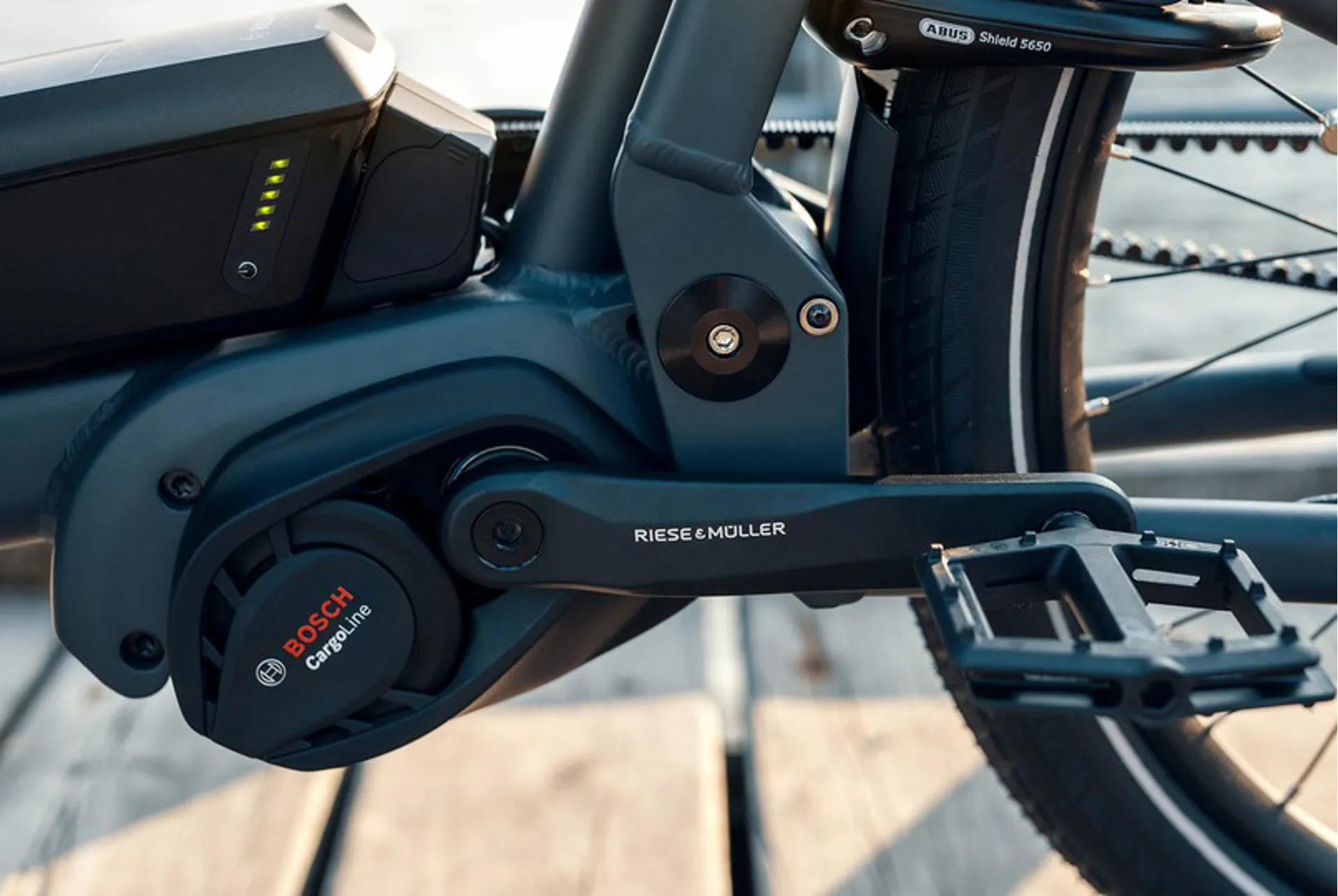

Motors, batteries and displays – great performance from a single source.

The perfect gear for every pace.



500 Wh

DualBattery 1000

DualBattery Technology perfected by Riese & Müller ensures twice the range or far higher climbs, fewer charging breaks and longer-lasting riding pleasure. With the 1,000 Wh available, completely new destinations can be reached and you no longer have to worry about the range in your daily routine.



The Intuvia Display gives you full control and a perfect overview at all times. It provides information about battery status, range, daily mileage, total mileage, ride time, current motor power, time, speed and average speed – clearly legible in any level of sunlight. It is operated by a control unit conveniently mounted on the handlebar grip.


The Bosch SmartphoneHub and free app turns your smartphone into a display which combines the functions smart navigation with live weather, fitness data and much more. Other services and apps on your smartphone, such as music playback, can be controlled at the same time. But it also works without a mobile phone: in this case, a display integrated into the cockpit shows key riding data.


The Nyon display ensures that you are fully connected and ideally equipped with navigation for every tour or day-to-day ride. The colour display, with its intuitive touch function, is very simple to use and, thanks to being robust and easy-to-read, is guaranteed to get you to your destination in any weather. The user interface can be adapted to your individual needs and with fitness data, the Nyon literally becomes your very own personal trainer.


Without sidewalls / weather protection

Low sidewalls

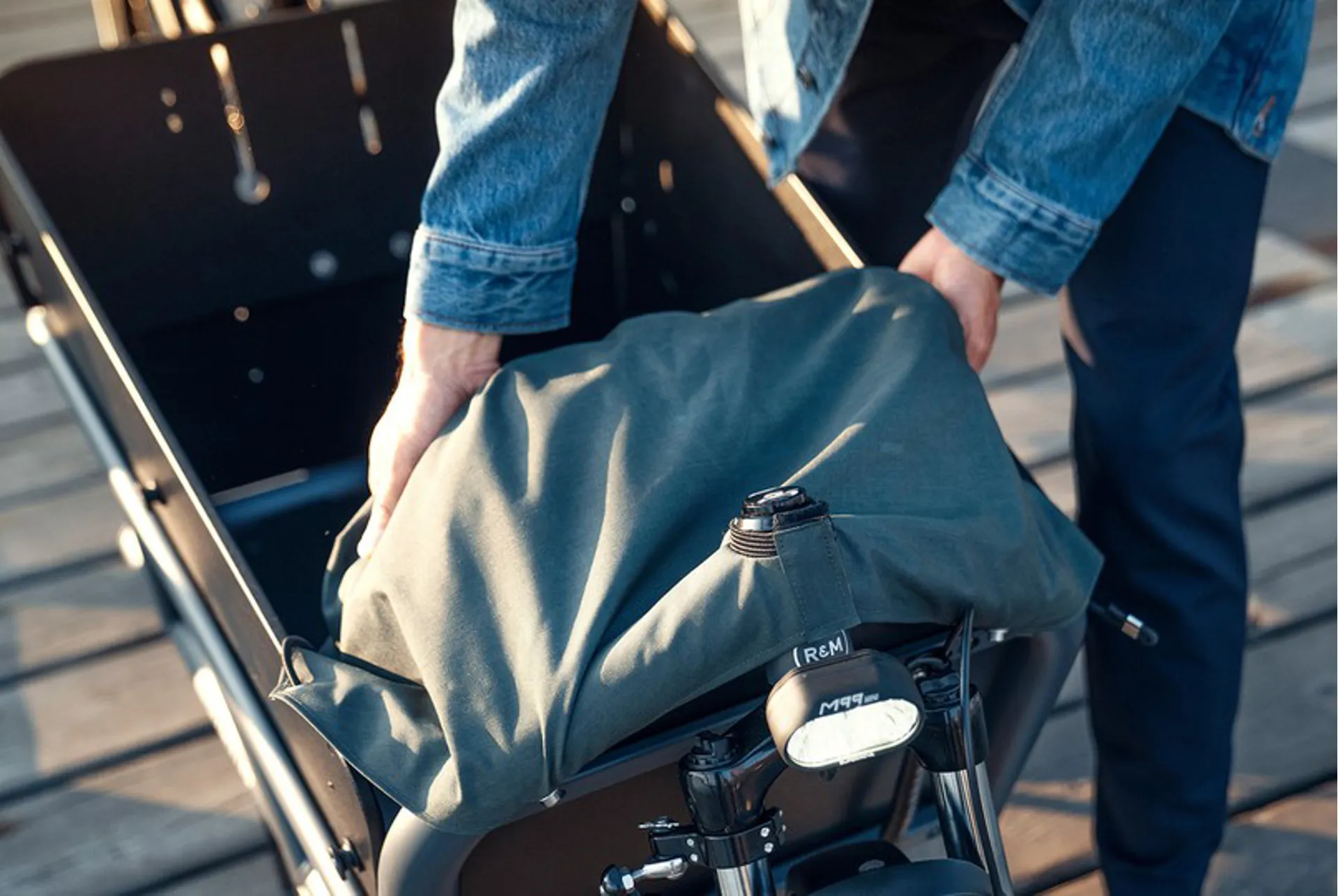

High sidewalls with tarpaulin

High sidewalls can be used for securely transporting larger loads. The strong tarpaulin conceals your cargo and protects it from dirt and rain. When it's not needed, simply roll it up and lock it at the front.

High sidewalls with hard cover

The high side walls with a waterproof hard cover are ideal for protecting larger loads during transport. Lockable and firmly bolted in place, the cover reliably secures your transport goods. It can be locked in a partially opened position and two comfortable, separate seats can be fitted in the storage space for optionally transporting children.

Low side walls with child cover

Children can easily get to their seat with low sidewalls – and yet are still well protected on the road. The practical cover protects them from stones, dirt and rain and can be opened at the sides in summer for an optimum, cooling supply of fresh air.


Two child seats

Two comfortable height-adjustable child seats for two children aged up to around eight years. The seats can also be fitted individually and centrally. 5-point belts guarantee excellent safety for your children. Equipment available only in conjunction with side walls.

Three child seats with footwell

Two separate seats side by side and a single seat at the front enable up to three children to be carried. 5-point belts ensure greater safety. Longer journeys are no longer a problem, thanks to the optimum layout, comfortable and adjustable seating positions and the footwell.

Three child seats with footwell, front luggage shelf

Two separate seats side by side and a single seat at the front enable up to three children to be carried safely. Adjustable seating positions and a footwell ensure greater comfort. Instead of the third child seat, you can also use an extra luggage rack that offers additional storage space.


GX option

If you like riding your E-Bike off-road, then simply equip it with first-class All-Terrain tires. The SnakeSkin side wall of the Schwalbe Smart Sam Plus tires guarantees exceptional grip especially when cornering. A 3 mm protective cover around the inner tube provides extra-secure puncture resistance. The wide VP 538 flat pedals provide grip for your feet.


Additional chain lock with bag

The sturdy Abus chain lock, in addition to the Abus Shield frame lock, provides twice the security for your E-Bike. The 130 cm long chain is latched onto the frame lock and the bike can be quickly attached to the nearest lamppost. The chain thickness of 6 mm ensures a high level of anti-theft protection. Especially practical: frame lock, chain lock and battery lock all use the same key. The bag is firmly attached to the saddle and allows quick and easy removal of the chain lock thanks to its ergonomic shape and Fidlock magnetic closure.


Carrier Load

If the front storage space is not enough, there is always the optional carrier. It is ideal for attaching panniers, making it perfect for longer bike trips too. Since it is secured directly to the frame, it also benefits from the suspension thanks to Control Technology. On the HS models, the carrier is fitted as standard.
