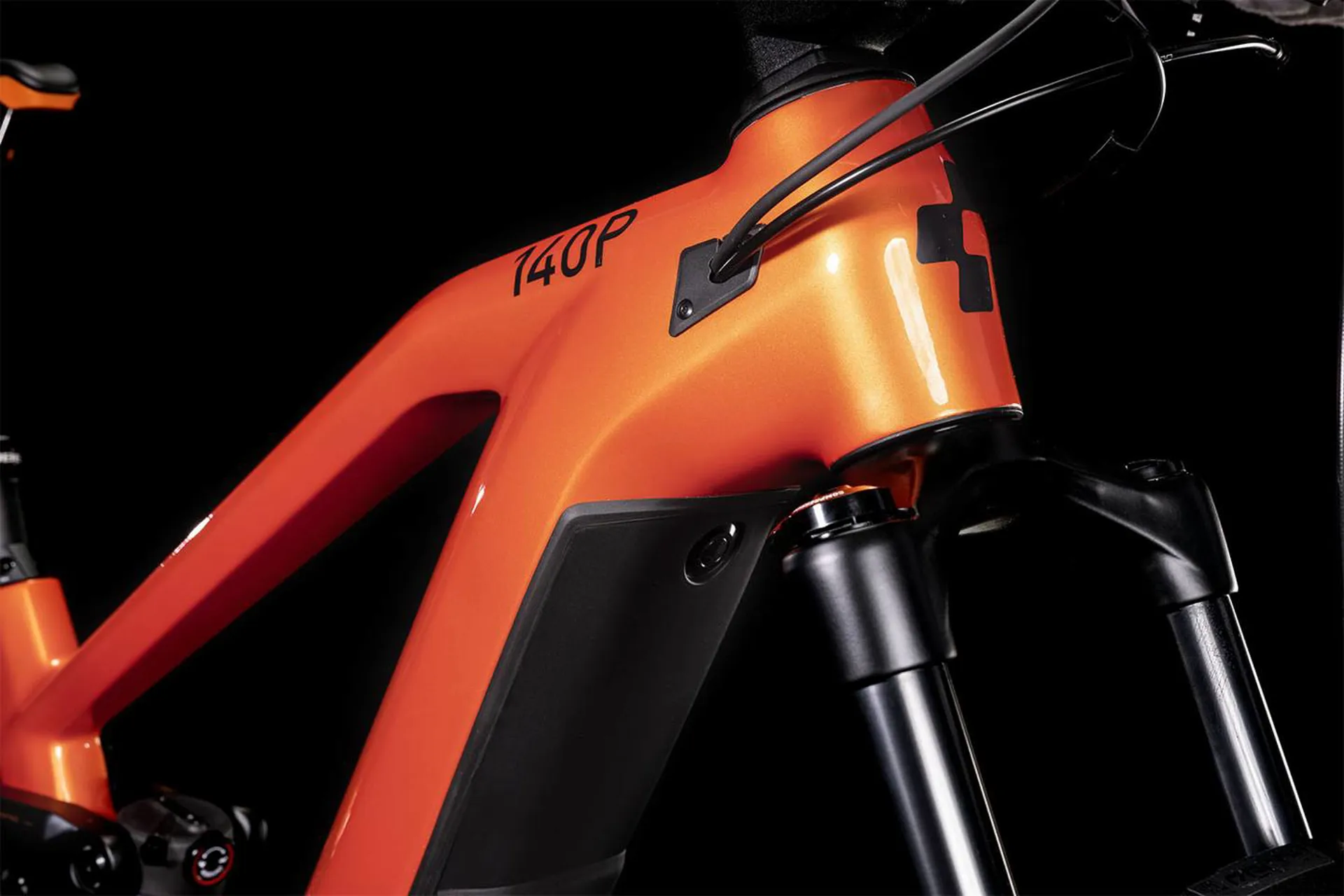

frame
C:62 Monocoque Advanced Twin Mold Technology, Aluminium 6061 T6 Rear Triangle, Efficient Trail Control, FSP 4-Link, Agile Trail Geometry, Boost 148, Full Integrated Battery
size
Size Split: 27.5: XS (15"), S (17") // 29: M (18"), L (20"), XL (22")
fork
RockShox Recon Silver RL Air, Tapered, 15x110mm, eMTB Approved, 140mm, Lockout

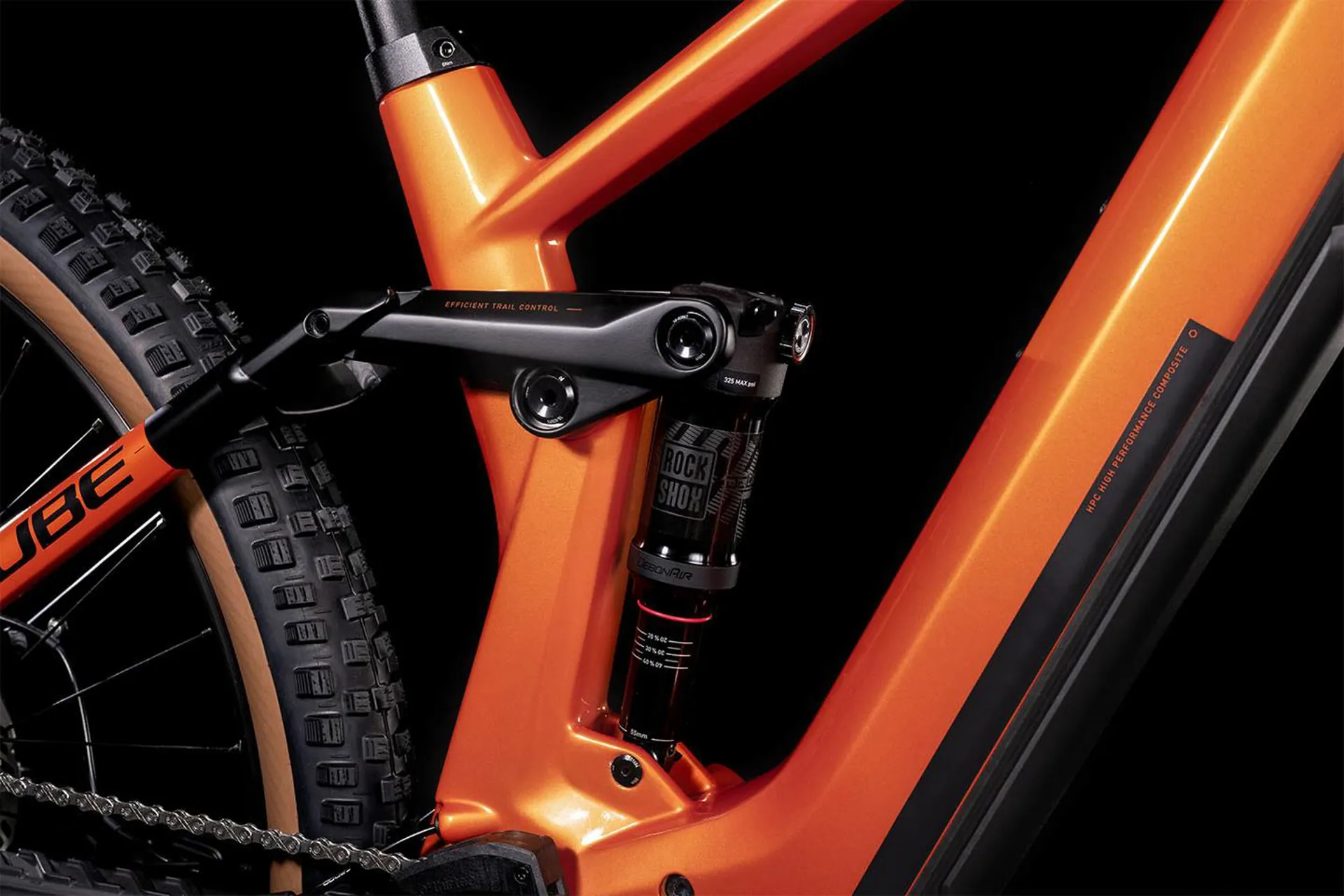

shock
RockShox Deluxe Select, 185x55mm, Rebound Adjust, Trunnion Mount
shock hardware
Top: 54mm Trunnion Mount, Bottom: 22.2x8mm
drive unit
Bosch Drive Unit Performance CX Generation 4 (85Nm) Cruise (250Watt)
battery
Bosch PowerTube 625
display
Bosch Purion
charger
Bosch 2A
brake system
Magura MT Thirty, Front 4-Piston/Rear 4-Piston, Hydr. Disc Brake (203/203)
rear derailleur
Shimano Deore RD-M5100-SGS, 11-Speed
shifters
Shimano Deore SL-M5100, Rapidfire-Plus

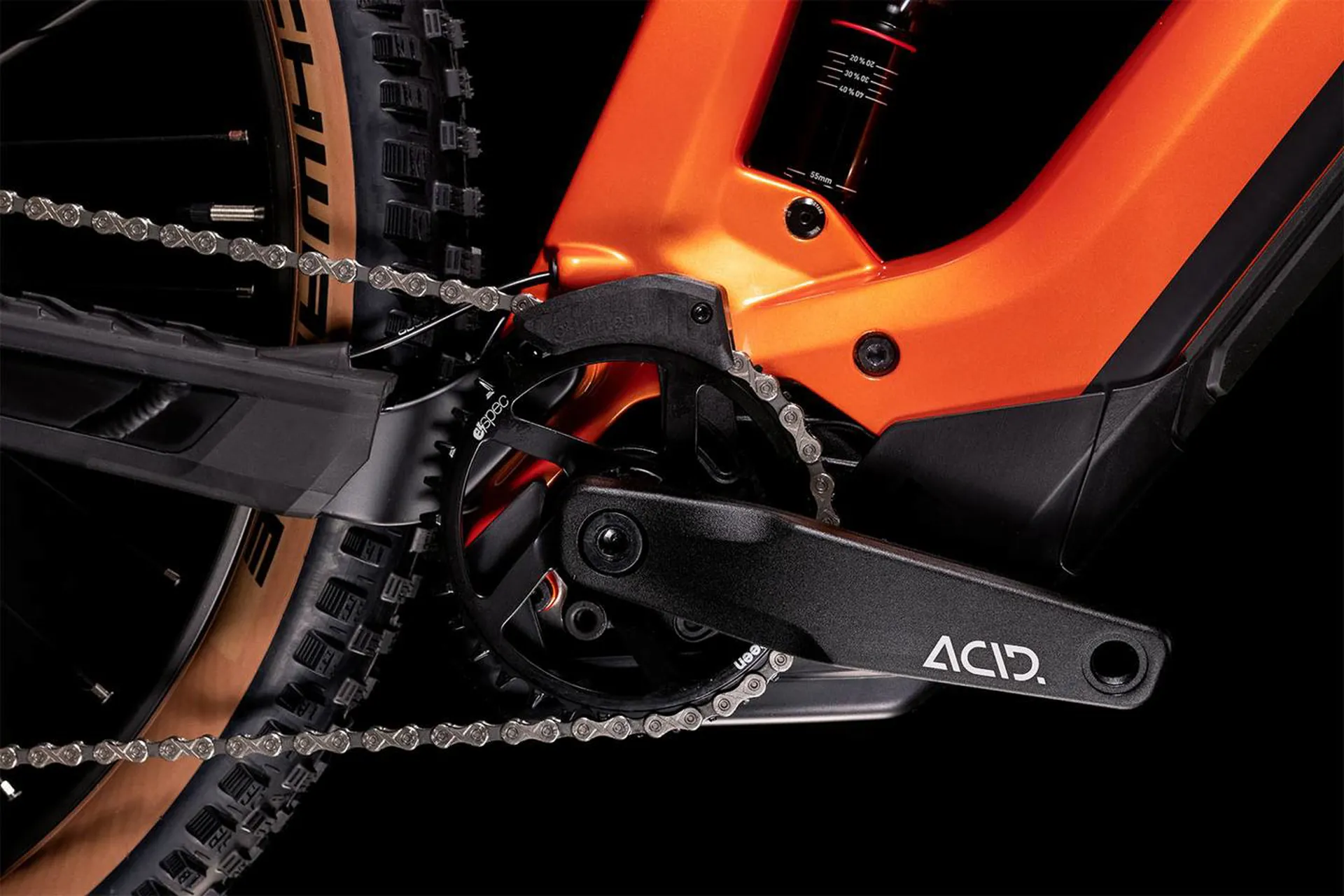

crankset
ACID E-Crank, 165mm (27.5: 36T // 29: 34T)
chain guide
e*thirteen Plus e*spec
cassette
Shimano Deore CS-M5100, 11-51T
chain
KMC X11
front hub
Shimano HB-MT400-B, 15mm, Boost, Centerlock
rear hub
Shimano FH-MT400-B, 12mm, Boost, Centerlock
rims
CUBE EX30, 32H, Disc, Tubeless Ready
tyres
Schwalbe Nobby Nic, PerfL, 2.6
Stem
CUBE Performance Stem E-MTB, 31.8mm
handlebar
Newmen Evolution SL 318.25, 760mm
grips
ACID React Pro
seat post
CUBE Dropper Post, Handlebar Lever, Internal Cable Routing, 31.6mm (XS, S: 100mm, M: 120mm, L, XL: 130mm)
seatclamp
CUBE Screwlock Semi Integrated, 34.9mm

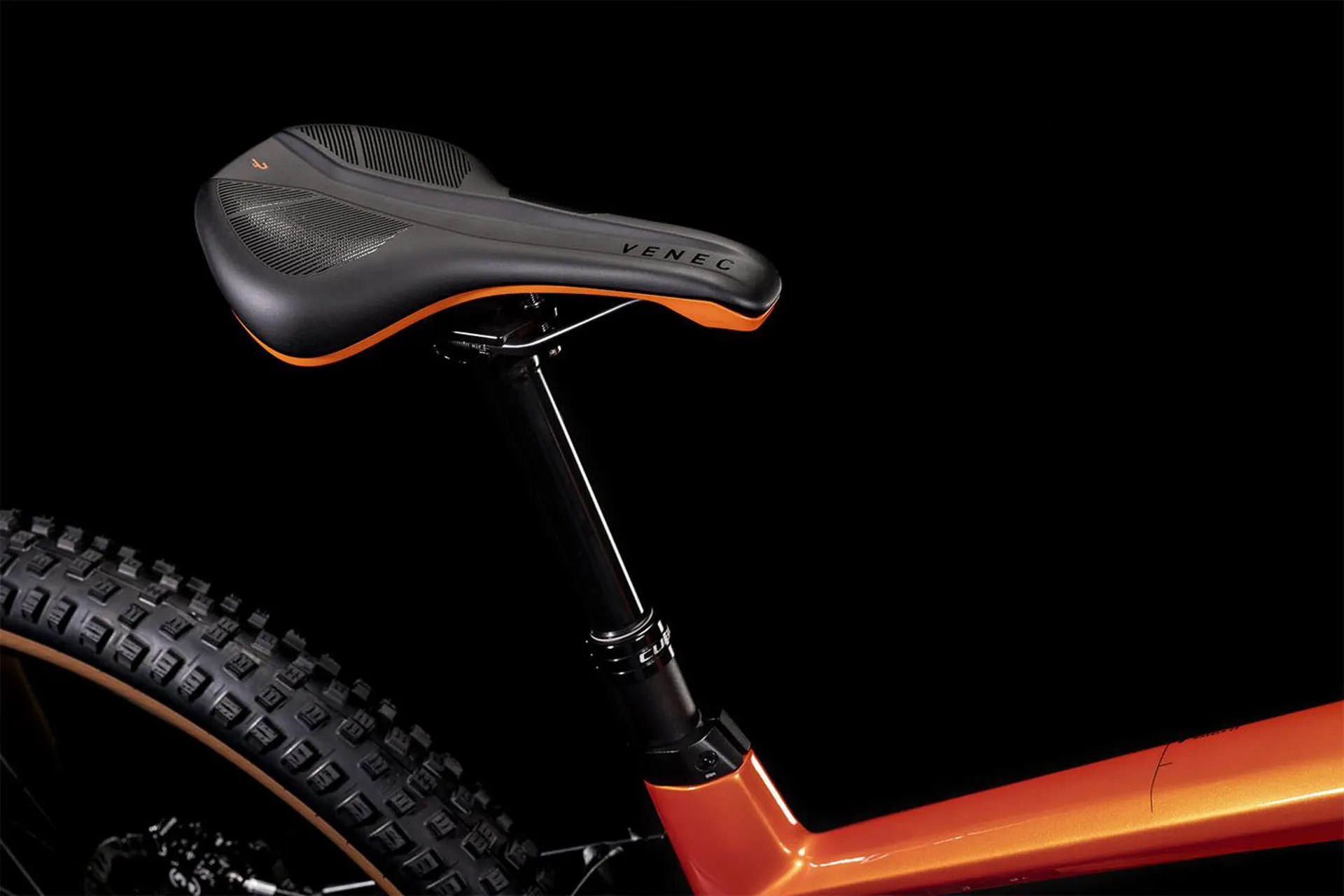

saddle
Natural Fit Venec
headset
27.5: ACROS AZX-1032, BlockLock 120°, Top Zero-Stack 1 1/2" (ZS 56mm), Bottom Zero-Stack 1 1/2" (ZS 56mm) // 29: ACROS AZX-1030, Top Zero-Stack 1 1/2" (ZS 56mm), Bottom Zero-Stack 1 1/2" (ZS 56mm)
weight
24,8 kg
