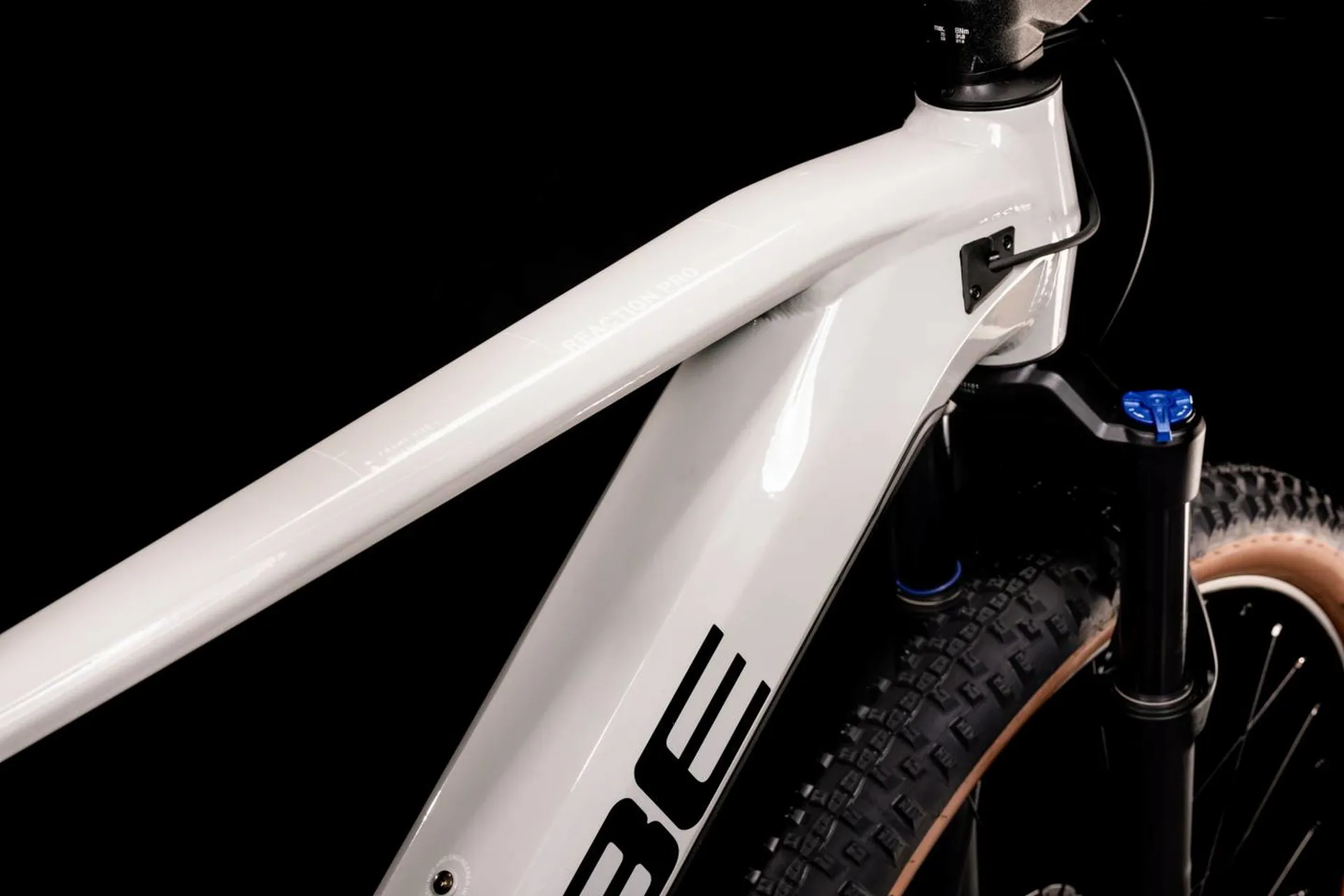

frame
Aluminium Superlite, Gravity Casting, Agile Ride Geometry, 1.5 Headtube, Internal Cable Routing, Full Integrated Battery, Kickstand/Fender/Carrier Mounting Points
size
Size Split: 27.5: XS (13.5"), S (15") // 29: M (17"), L (19"), XL (21"), XXL (23"); Trapeze: 27.5: S (15") // 29: M (17"), L (19")
fork
X-Fusion MIG32 Air, Tapered, 15x110mm, 100mm, Lockout
drive unit
Bosch Drive Unit Performance CX Generation 4 (85Nm) Cruise (250Watt)
battery
Bosch PowerTube 625
display
Bosch Purion
charger
Bosch 2A
brake system
Shimano BR-MT200, Hydr. Disc Brake (180/180)
rear derailleur
Shimano Deore RD-M5100-SGS, 11-Speed
shifters
Shimano Deore SL-M5100, Rapidfire-Plus

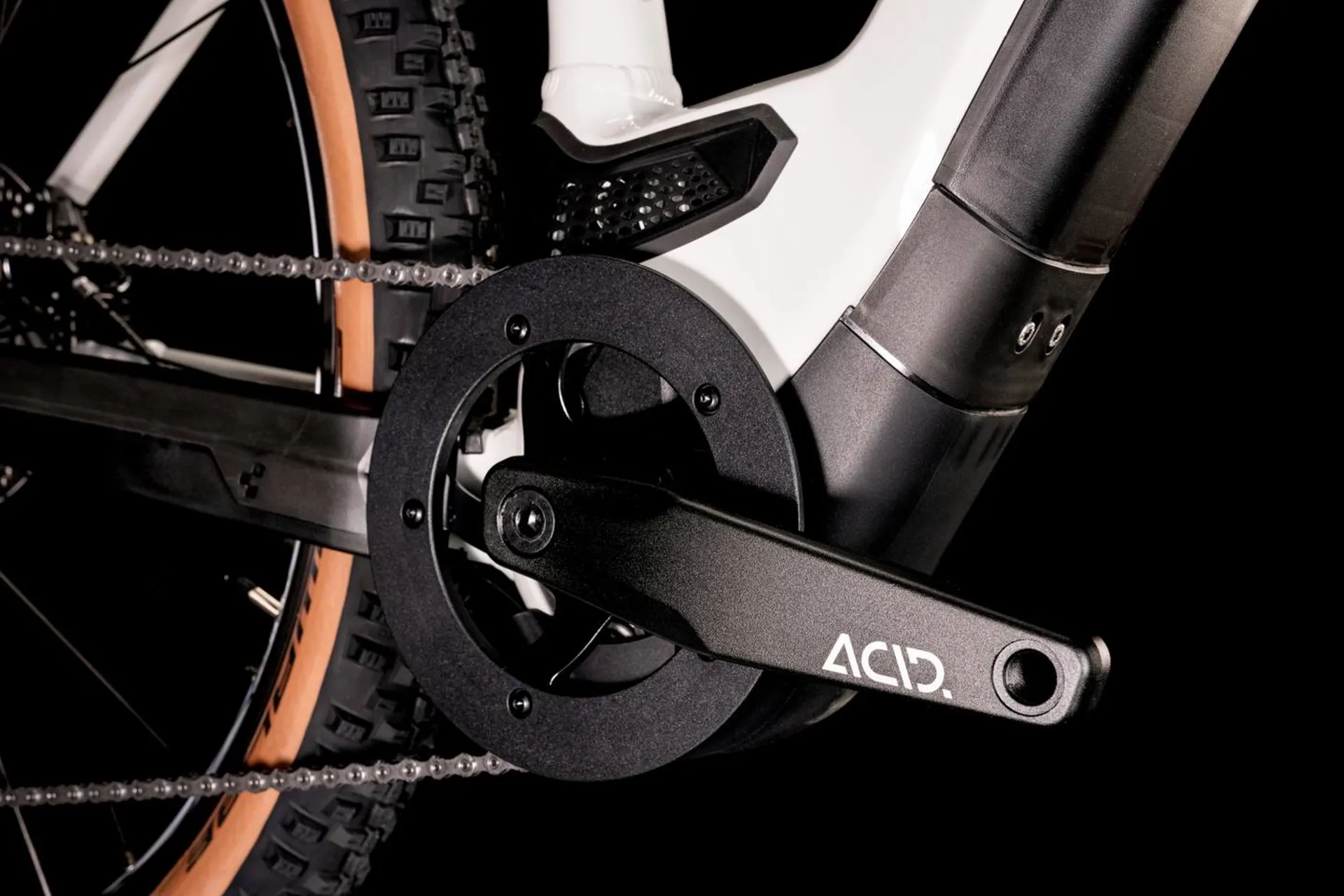

crankset
ACID E-Crank, 175mm, 38T
cassette
Shimano Deore CS-M5100, 11-51T
chain
KMC X11
front hub
Shimano HB-MT400-B, 15mm, Boost, Centerlock
rear hub
Shimano FH-TX505, QR, Centerlock
rims
CUBE EX30, 32H, Disc, Tubeless Ready
tyres
Schwalbe Smart Sam, Active, 2.6
Stem
CUBE Performance Stem E-MTB, 31.8mm
handlebar
CUBE Rise Trail Bar, 720mm
grips
ACID React Pro

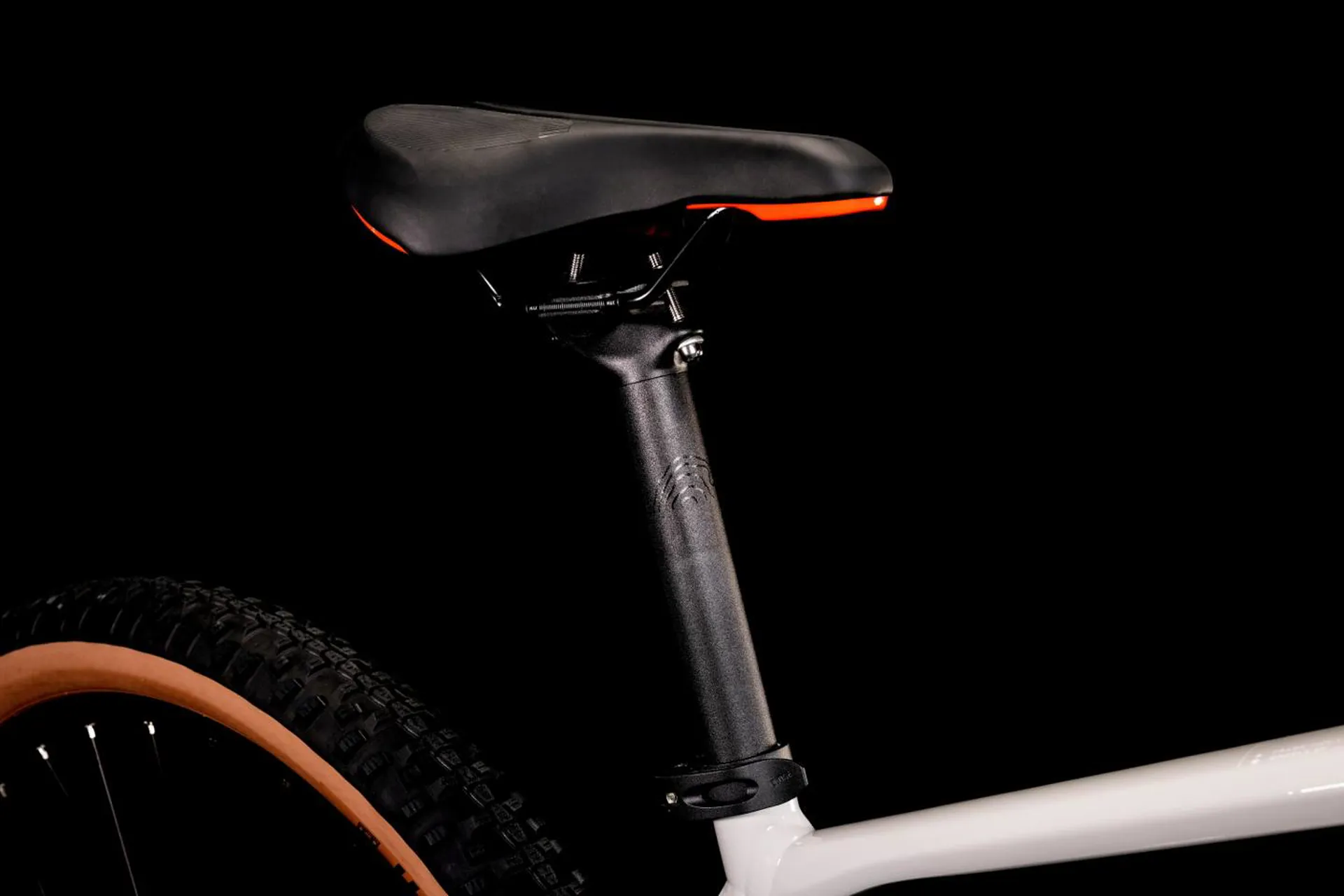

seat post
CUBE Performance Post, 30.9mm
seatclamp
CUBE Varioclose, 34.9mm
saddle
Natural Fit Sequence
headset
27.5: ACROS AZX-1032, BlockLock 120°, Top Zero-Stack 1 1/2" (ZS 56mm), Bottom Zero-Stack 1 1/2" (ZS 56mm) // 29: ACROS AZX-1030, Top Zero-Stack 1 1/2" (ZS 56mm), Bottom Zero-Stack 1 1/2" (ZS 56mm)
pedals
CUBE PP MTB
weight
23,8 kg
