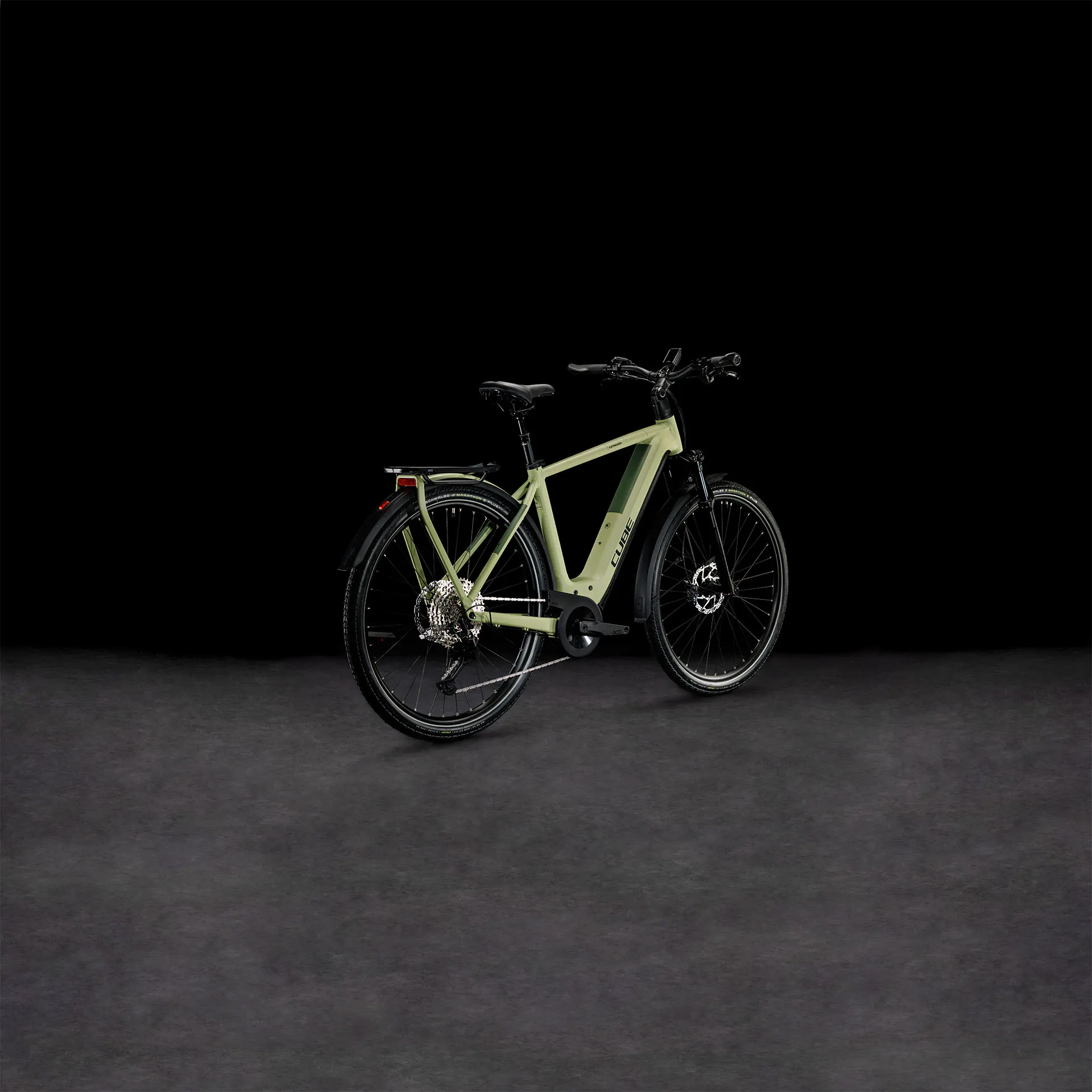

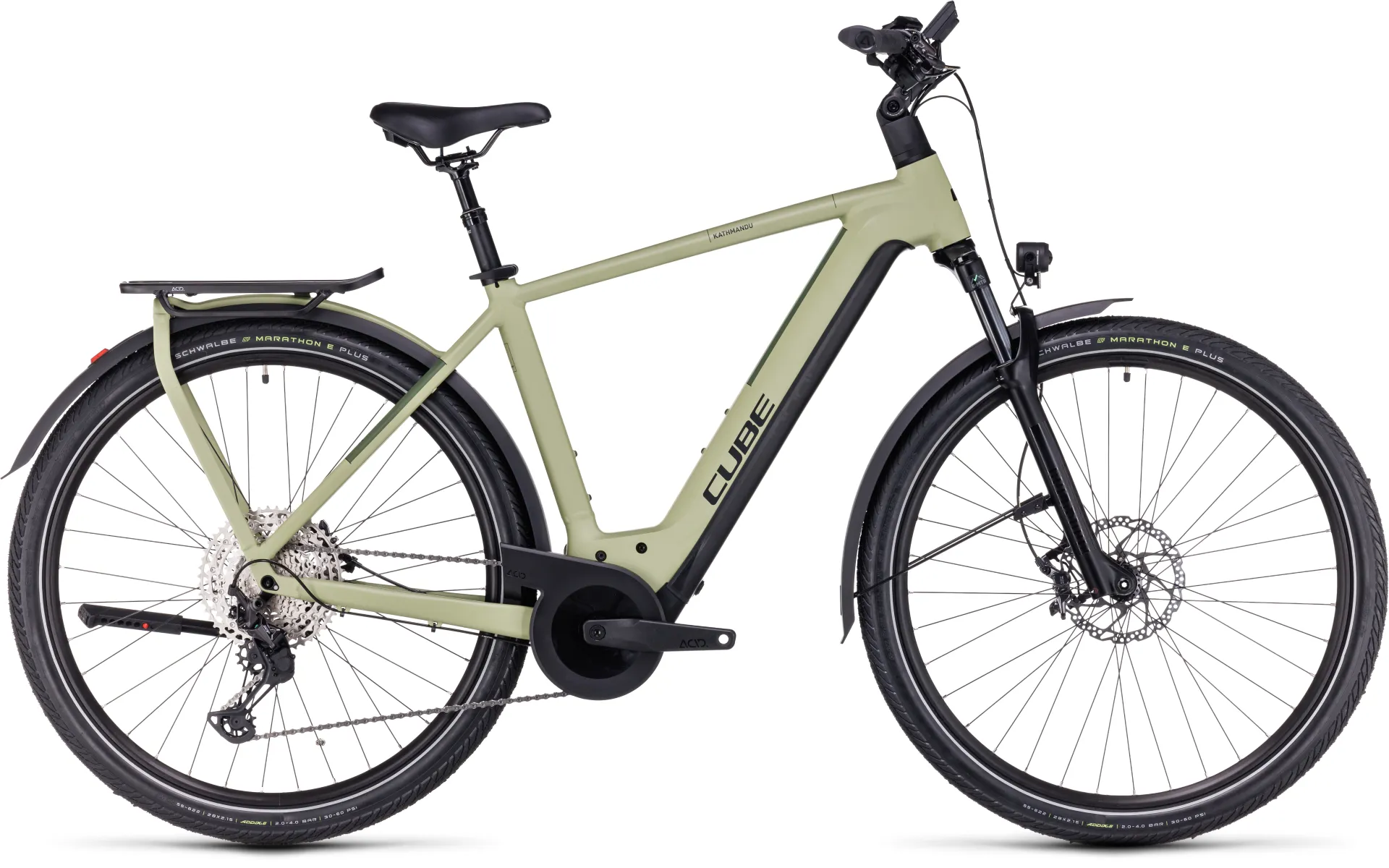

Cube Kathmandu Hybrid SLX 750Wh Bosch Electric Bike Green/Olive

£4,199.00
Pre-Order

With Pre-Order, you can purchase the latest items added to our store in advance of them arriving with us.

Your Pre-Order is prioritised (at no additional charge); meaning that as soon as the product arrives with us, we can wrap it straight back up; ready for collection via Click & Collect or despatch to you — it often never even hits the stock room shelves!

Pre-Launch

With Pre-Launch, the date when we expect to receive the product ourselves is still a little too hazy to be confident in accepting Pre-Orders.

So, instead, you can submit your email address against the item you are interested in and we will email you as soon as stock arrives on the system.

Estimated Delivery & Collection Dates

Estimated Delivery & Collection Dates are given on Pre-Order and Pre-Launch products. They are for indication purposes only and can change at any time without notice.

The dates we provide are based on indications given by our suppliers. Whenever we get updated information from our suppliers we will endeavour to update the Estimated Delivery & Collection Dates provided on product pages.

We estimate this will be ready for despatch to you or collection via Click & Collect on Undetermined

Hassle free returns & 28 day echange policy.

-Easy *Fast *Fair -

Download Returns PDF

Returns and Exchanges– for electric bikes and accessories

If you need to cancel the order or make an exchange under the distance selling regulations you must notify us within 14 days of receiving the item after which you will have a further 14 days to return the item. To do so please download the return form, complete it and include with the returned item. It couldn't be easier. We will process your exchange/refund as soon as we receive and open your return.

Items must be returned to the store you bought it from or your nearest store if purchased online. Shipping costs are paid by the buyer and are non refundable.

Refunds can only be made to the original card used for payment and if not known or available then we can at best offer a store credit to be used against future purchases.

Items must be returned in their original condition complete with all packaging, manuals, labels etc.

Custom, customised and special orders cannot be cancelled or returned. Riese & Muller eBikes are always configured to customer specifications and are therefore special orders and sales are final.

Used eBike Returns - We don't want you to be stuck with a bike you don't feel is right and so we accept returns for used bikes up to 28 days after purchase on the following conditions: 1. The condition is like new 2. All components and component packaging are present 3. All shipping, customisations and £10/mile of use will be charged for (minimum £100) along with a £50 restocking fee. 4. Used eBikes can only be exchanged and not refunded and this is entirely at our discretion.

Faulty Items
Faults - If your order arrives damaged or developes a fault we will use our wealth of experience as the UKs' very first ebike specialist to solve the issue quickly for you. Based on our support call history less than 16% of cases have required a visit to one of our sores. You can return a faulty item for a full refund within 30 days after which we reserve the right to have the opportunity to repair any faults. If you need any assistance we are here to help (even out of hours) simply contact, your nearest store or use our contact form.

Opened eBike Parts

We cannot accept returned eBike parts if the packaging has been opened. This is because components connected to faulty bikes may be damaged. To avoid disappointment we have a no nonsense professional diagnosis service available at all of our stores for a very reasonable set fee.

Cube Kathmandu Hybrid SLX 750Wh Bosch Electric Bike Green/Olive

Season:2023

Brand:Cube

Code:631313

The Cube Kathmandu Hybrid SLX

A bike that aims to give you the tried and tested essentials combined with the highest levels of ebike performance using the Bosch Smart System CX with 85Nm for an unbeatable price.

EFFICIENT COMFORT GEOMETRY

With our specially designed Efficient Comfort Geometry, cycling is a simple pleasure. Whether you're popping across town or exploring further afield, taking a ride with the family or with friends, for work or for pleasure, we've created a ride experience that will have you coming back for more.

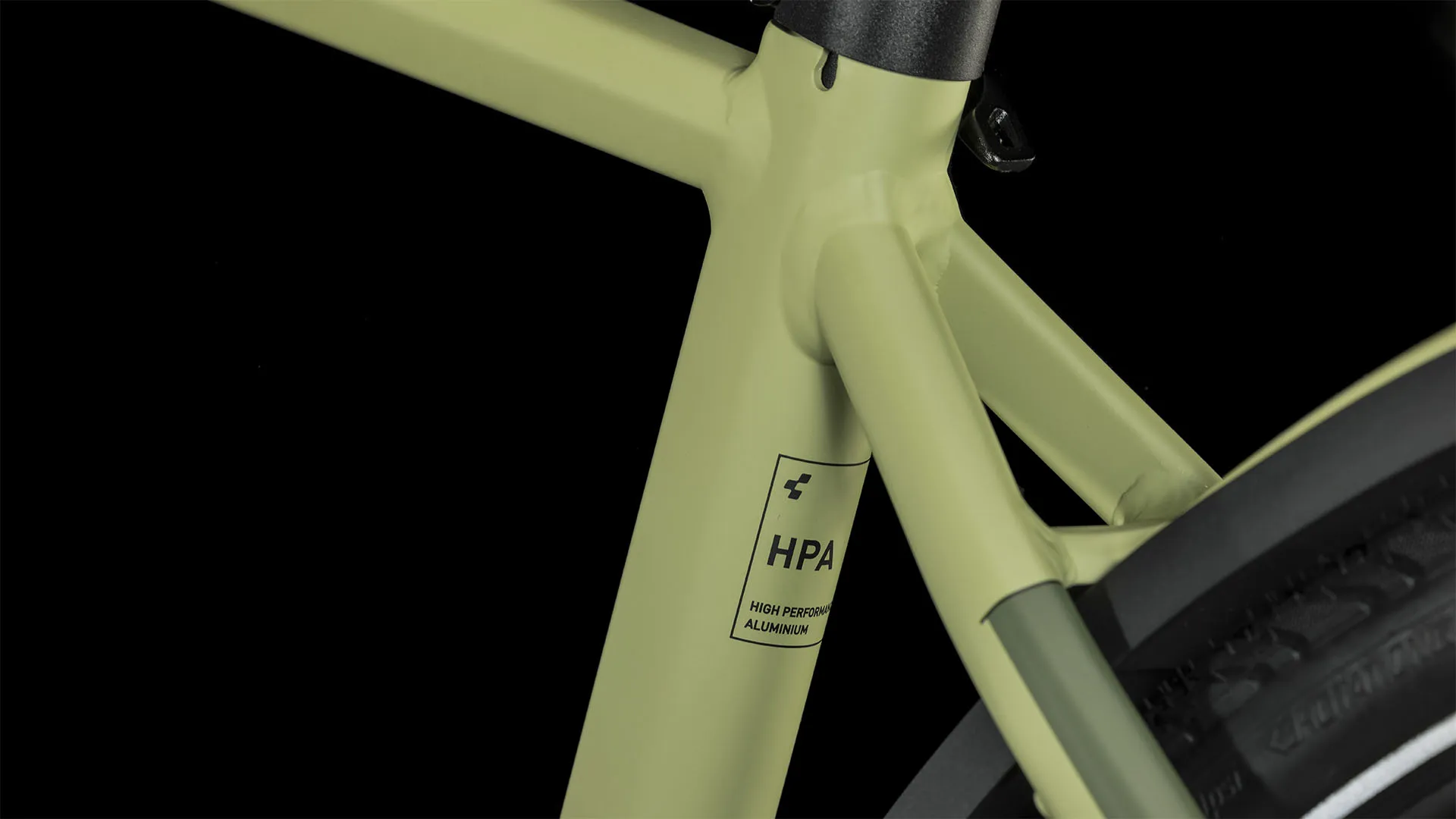

GRAVITY CASTING

Gravity Casting moulds liquid aluminium into highly complex frame sections, resulting in extremely strong structures that can better withstand stress. For example, with our Hybrid models we're able to produce a motor mount that's optimised to cope with the loads placed on it in this specialised application, without adding unnecessary weight or sacrificing strength.

BOOST148

A wider hub makes a stiffer wheel, and a stiffer wheel means better handling. That's the thinking behind the Boost 148 rear hub standard, which allows wider flange spacing for better wheel performance without impacting on shifting accuracy or drivetrain efficiency. Simply put, you can go faster and harder with better handling and stronger wheels.

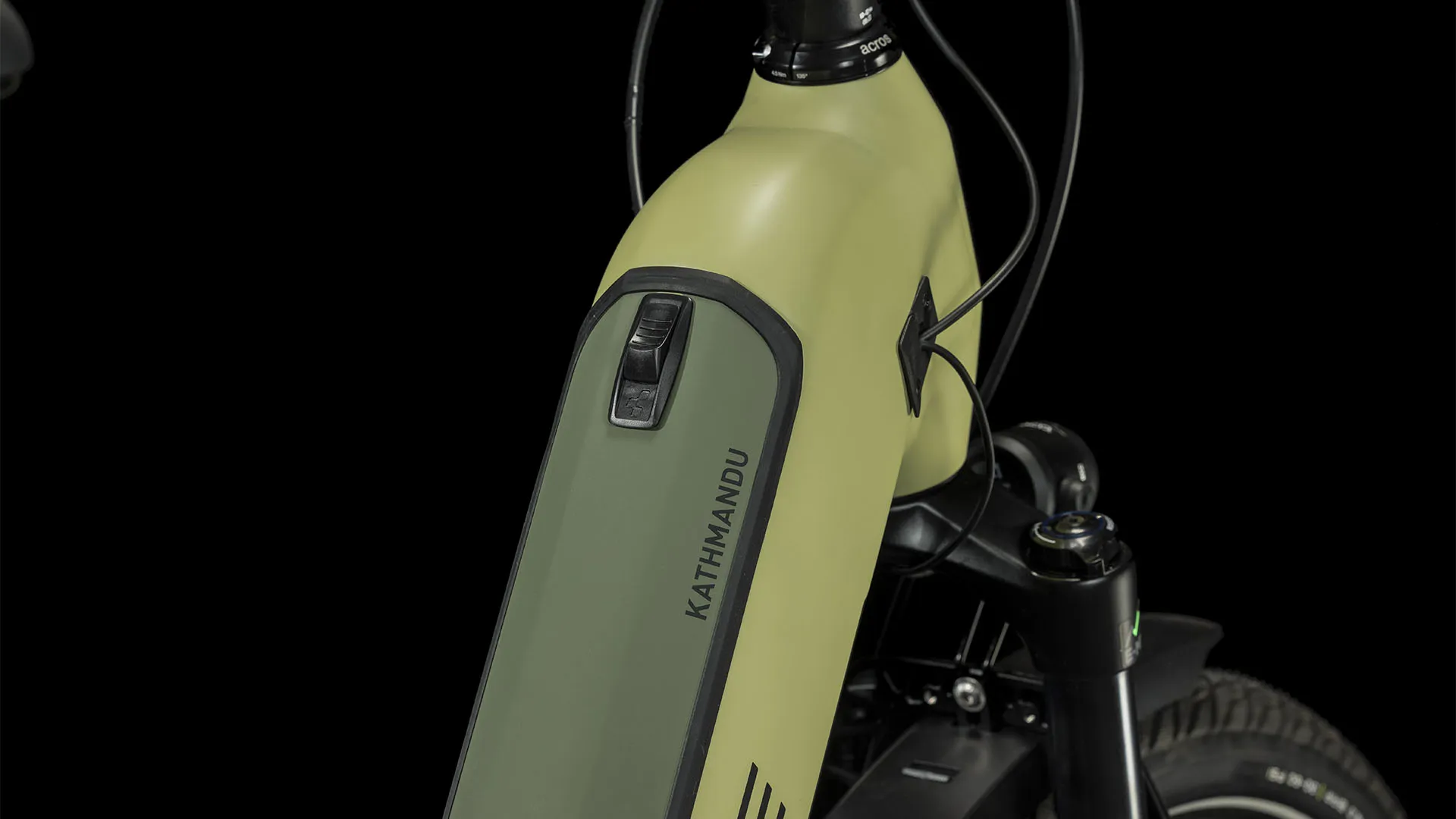

FULL INTEGRATED BATTERY

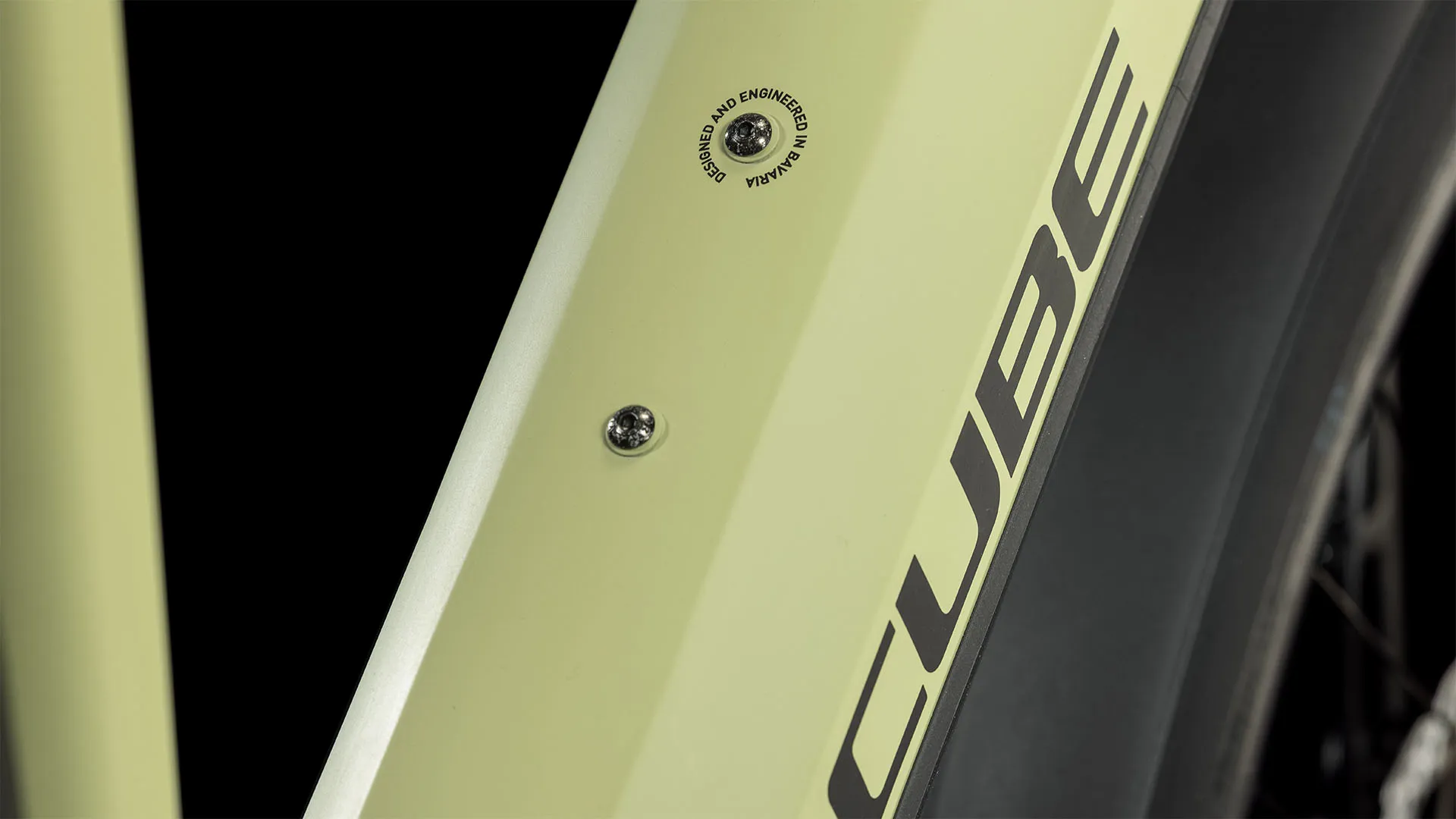

The Full Integrated Battery system tucks the power of Bosch's battery out of sight, safely inside the confines of your bike's downtube. Hidden beneath a splash and dust-proof cover and secured with a lock to prevent theft, it allows us to design beautiful e-bike frames that are as brilliantly functional as they are good to look at.

INTEGRATED CARRIER 3.0

The Integrated Carrier 3.0 is the next level in system integration: from the side, it's hard to tell where the luggage carrier ends and the mudguard begins. But it doesn't just look good, it's also incredibly strong and rigid. With an integrated spring clamp and CUBE Rilink ready adaptor for mounting bags and baskets, it transforms your CUBE into an adaptable and versatile load carrier.

MODULAR BATTERY SYSTEM

In many ways the battery is the heart of an e-bike. That's why, with our Modular Battery System, we've made a setup that's easy to use. You can charge the battery on or off the bike, and we've made room for even high capacity batteries. You'll wonder how you ever managed without it.

SUITABLE FOR:

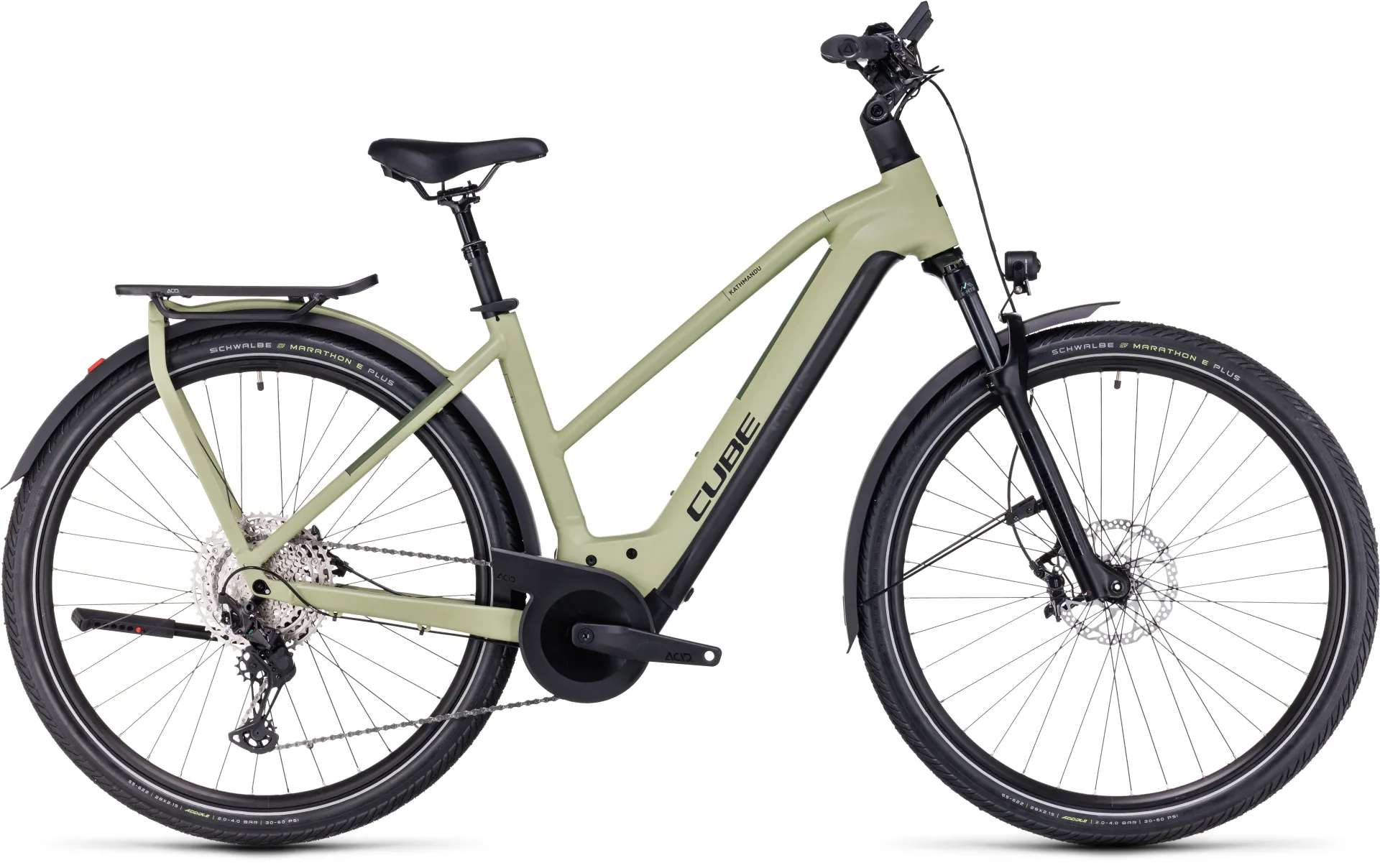

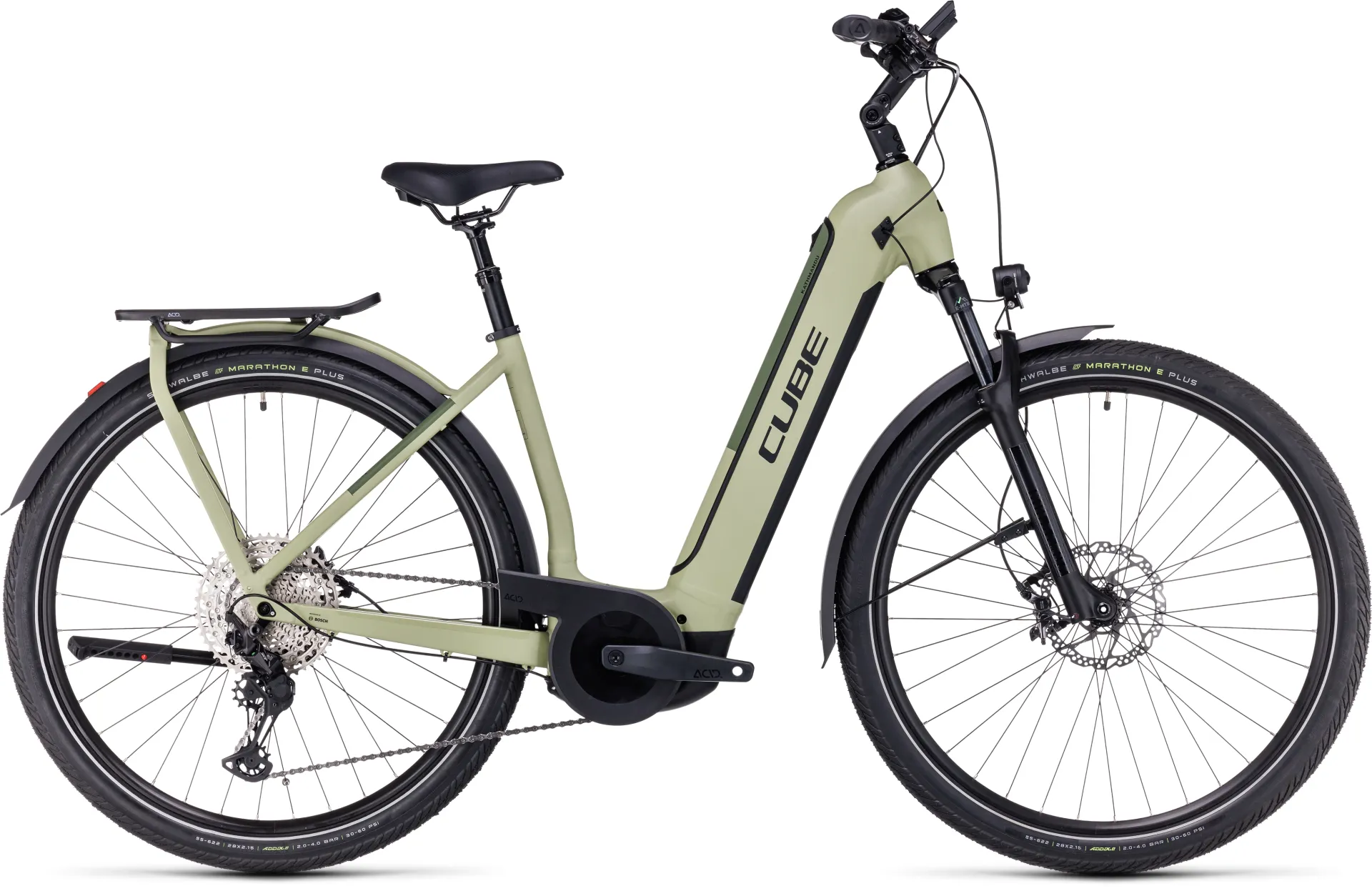

Designed for comfort, versatility and durability, the Kathmandu's frame – whether you choose the Men's version, the Trapeze or the Easy Entry – incorporates a high-capacity Bosch battery for the best possible range. Efficient Comfort Geometry works exactly the way you'd expect it to, meaning you can pedal in comfort for miles and miles. And the Integrated Carrier 3.0 is as strong as its predecessors, but even better integrated with the rear mudguard for an elegantly understated look that you'll love – and it's the perfect way to add accessories and carry whatever you need with you.

eGROUPSET

Bosch gen4 CX Smart System 85Nm 750Wh powerpack. Integrated led lights and large central display for all of your important ride data.

Technical Information

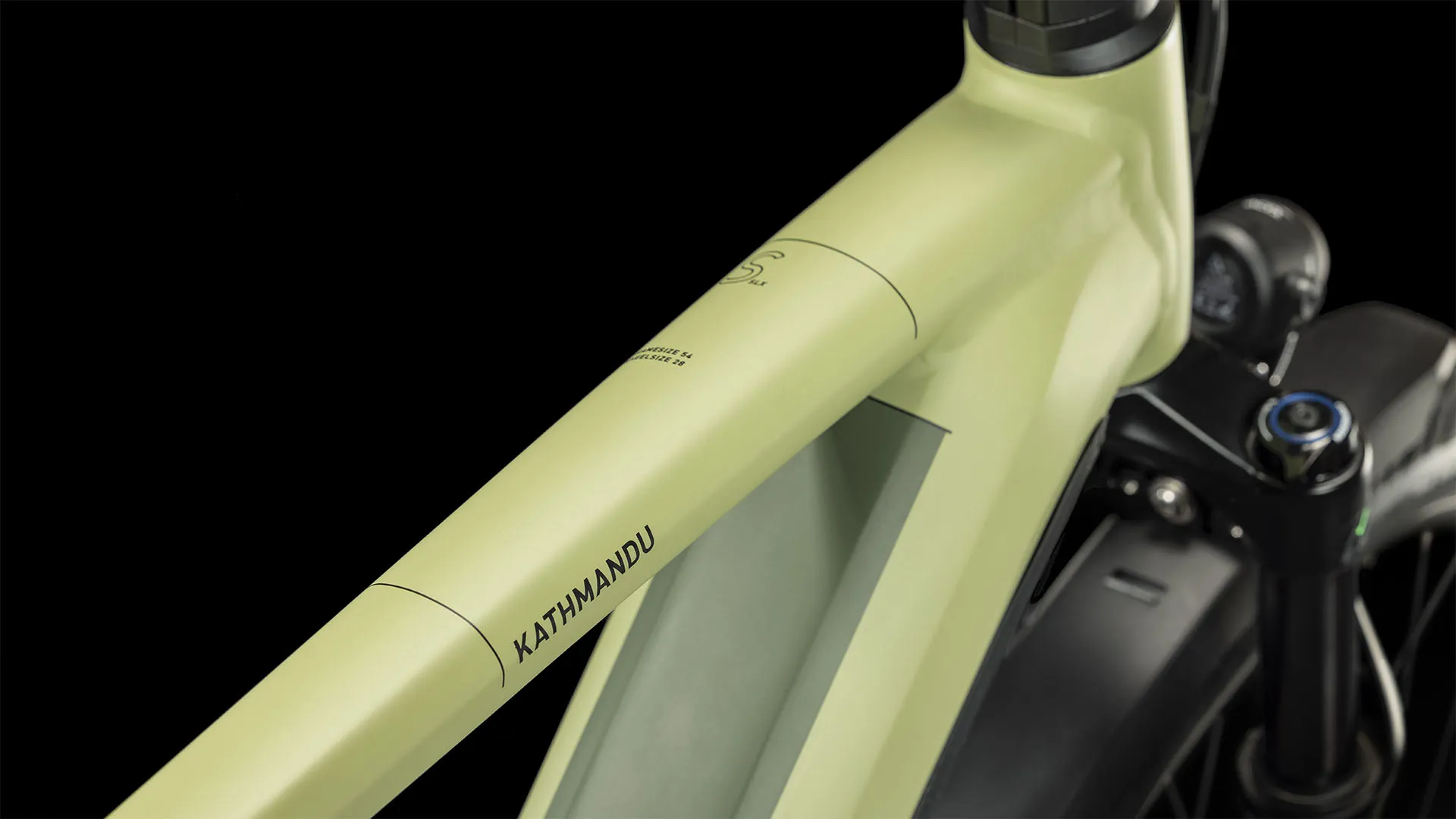

  • Frame
    Aluminium Superlite, Gravity Casting Technology, Efficient Comfort Geometry, Boost148, Full Integrated Battery, Integrated Carrier 3.0, Advanced Internal Cable Routing, 1.5 Headtube (EE: Tapered Headtube)
  • Size

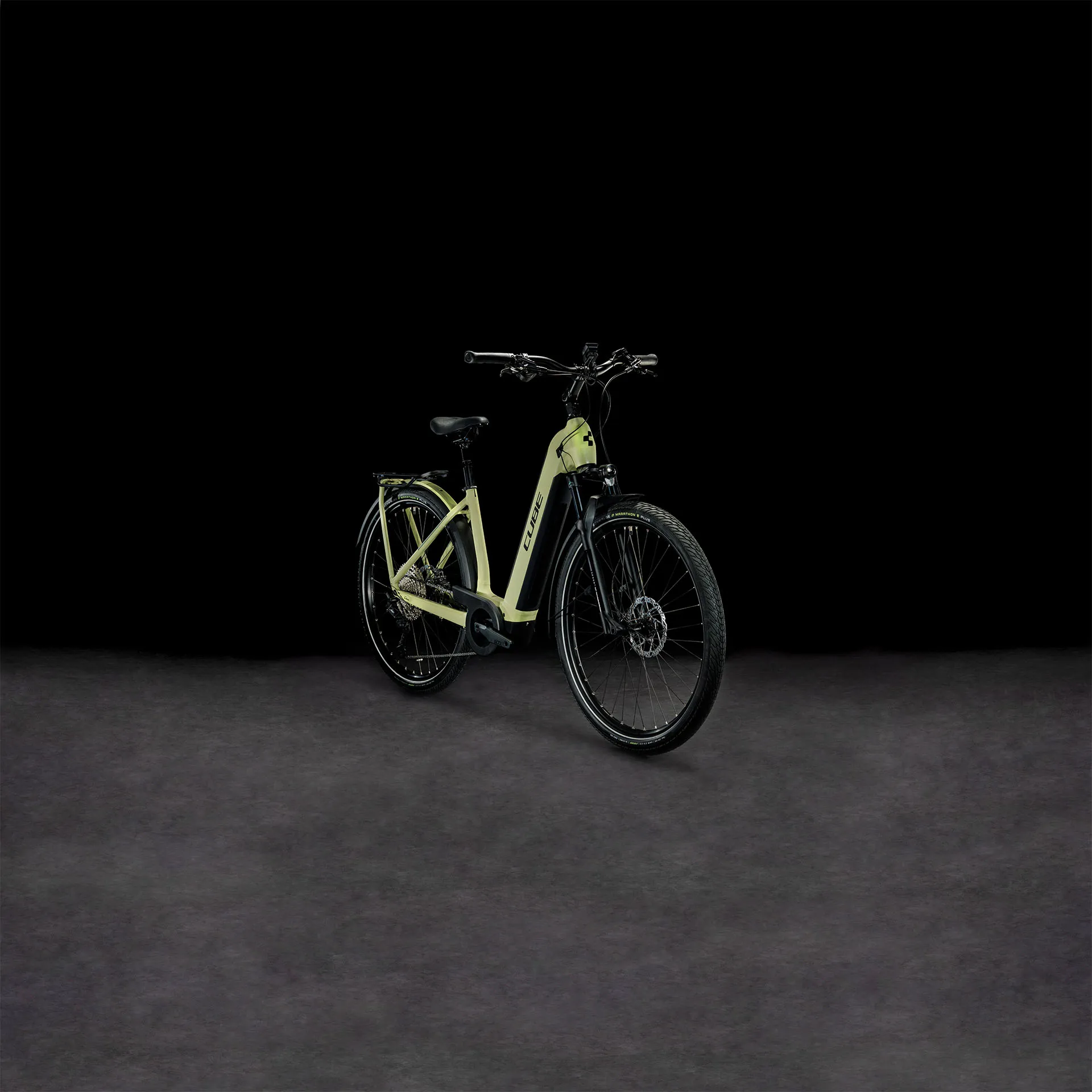

    Men: S (50cm), M (54cm), L (58cm), XL (62cm); Trapeze: S (50cm), M (54cm); Easy Entry: XS (46cm), S (50cm), M (54cm), L (58cm)
  • Suspension Fork
    RockShox Recon Silver RL Air, Tapered, 15x110mm, 100mm, Lockout
  • Drive Unit
    Bosch Drive Unit Performance CX Generation 4 (85Nm), Smart System
  • Battery
    Bosch PowerTube 750
  • Remote
    Bosch LED Remote

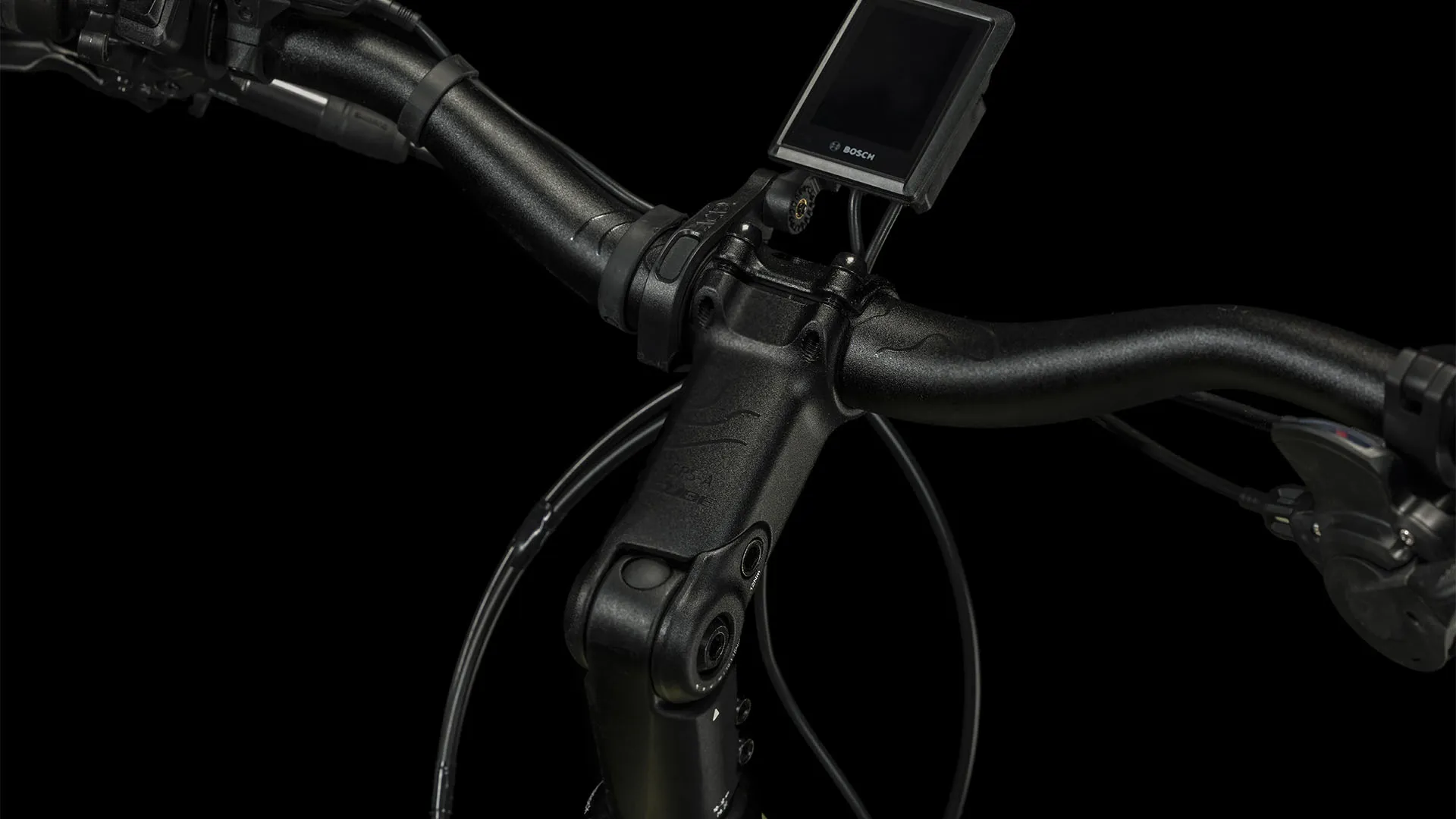

  • Display
    Bosch Kiox 300
  • Charger
    Bosch 4A
  • Brake System
    Shimano XT BR-M8120/M8100, Hydr. Disc Brake (180/180)
  • Rear Derailleur

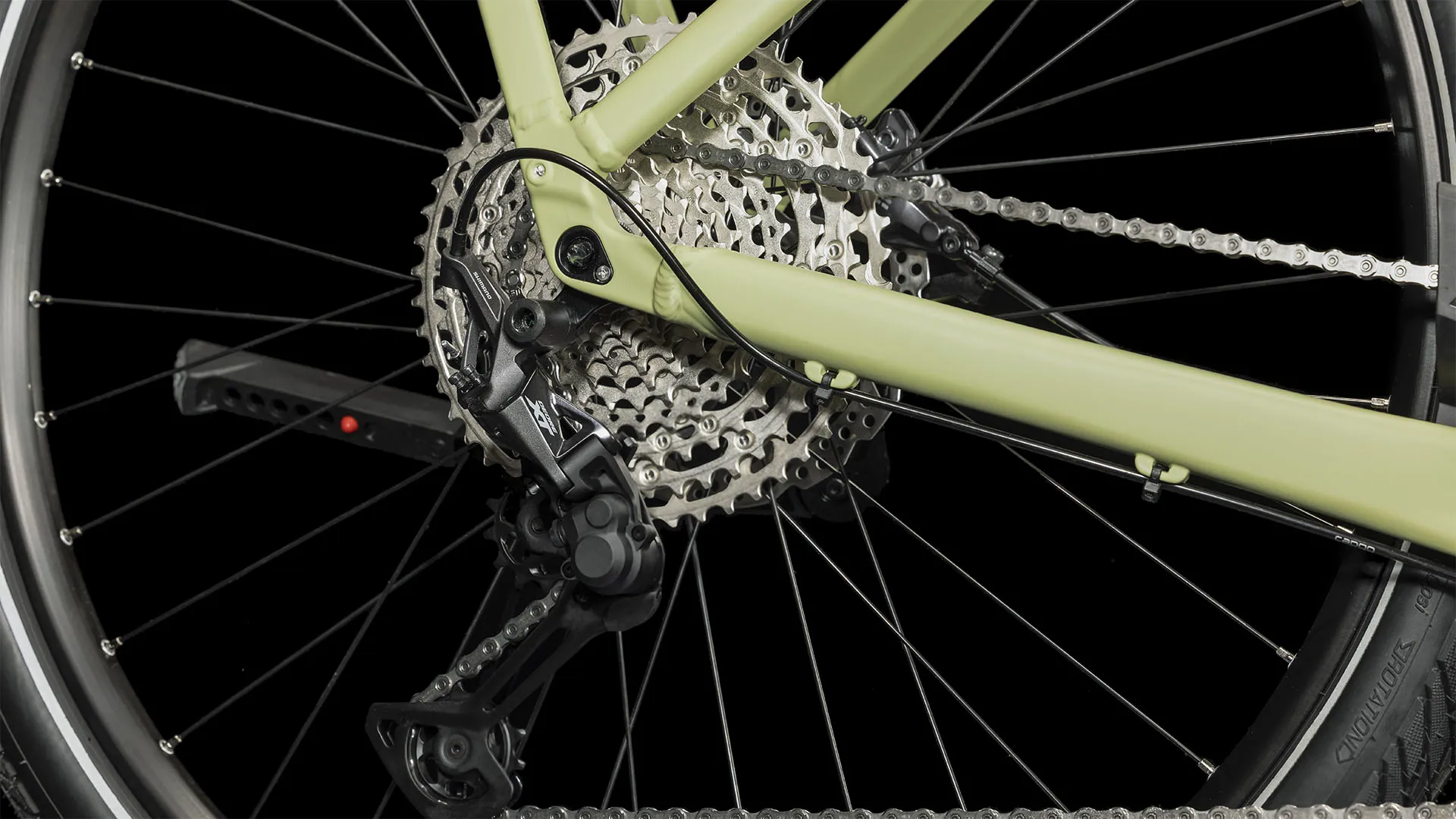

    Shimano XT RD-M8100-SGS, ShadowPlus, 12-Speed
  • Shifters
    Shimano Deore SL-M6100-IR, Direct Attach
  • Crankset
    ACID E-Crank, 40T, 175mm (EE: 170mm)
  • Cassette
    Shimano Deore CS-M6100, 10-51T
  • Chain
    Shimano CN-M6100
  • Handlebar
    CUBE Comfort Trail Bar, 700mm
  • Stem
    CUBE Comfort Stem Pro, 31.8mm, Adjustable
  • Grips
    ACID Travel Comfort
  • Headset
    M/Z: ACROS AZF-1035, ICR (Integrated Cable Routing), BlockLock 120°, Top Zero-Stack 1 1/2" (ZS 56mm), Bottom Zero-Stack 1 1/2" (ZS 56mm) // EE: ACROS AZX-1040, BlockLock 135°, Top Zero-Stack 1 1/8" (ZS 44mm), Bottom Zero-Stack 1 1/2" (ZS 56mm)
  • Front Hub
    CUBE Engineered By Newmen, 15mm, Boost, Centerlock
  • Rear Hub
    CUBE Engineered By Newmen, 12mm, Boost, Centerlock
  • Rims
    CUBE EX23, 36H, Disc, Tubeless Ready
  • Tyres
    Schwalbe Marathon E-Plus, Smart-DualGuard, 55-622
  • Seat Post
    CUBE Suspension Seatpost HD, 30.9mm
  • Saddle
    Natural Fit Sequence Comfort
  • Pedals
    ACID PP Trekking

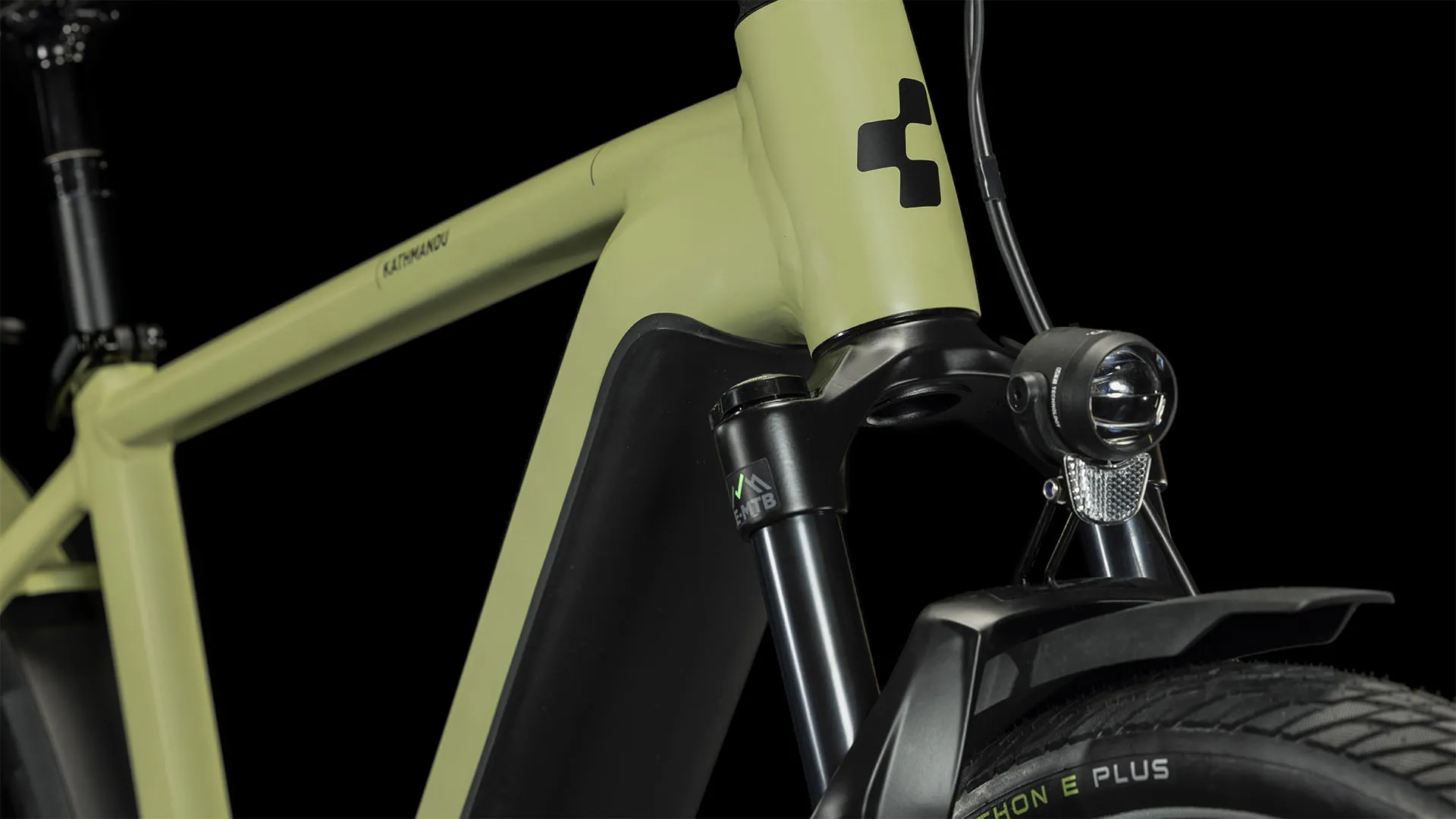

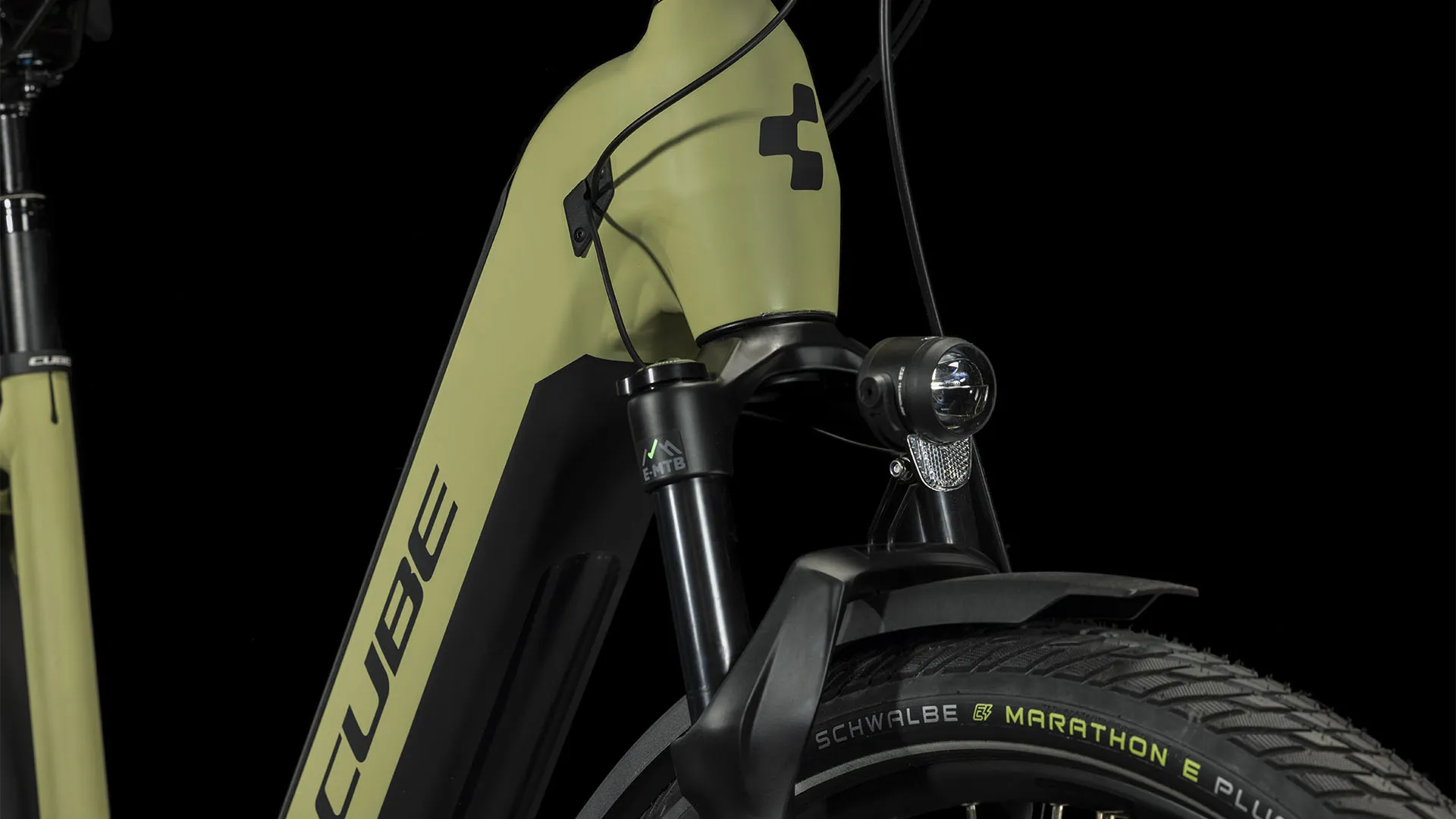

  • Front Light
    ACID Front Light PRO-E 110, 5-16V, DC
  • Rear Light
    ACID Mudguard Rear Light PRO-E, 12V, DC
  • Kickstand
    ACID FM Pure Kickstand
  • Mudguards
    ACID 65 Integrated Carrier 3.0
  • Bell
    Ring Bell
  • Carrier
    ACID Integrated Carrier 3.0, CUBE Adapter Compatible
  • Weight
    27,9 kg
  • Colour
    green´n´olive
  • Art. No
    631313
*recommended retail price Because of the problems in the delivery chain arising from the current COVID-19 situation, the bike can be delivered with modifications.
Sizing Information

GEOMETRY




50 cm / S54 cm / M58cm / L62 cm / XL
Seat tube480520560600
Top Tube Horizontal634635640650
Seat angle74747474
Head tube angle67.567.567.567.5
Chainstays460460460460
Head tube124124143164
Wheelbase1196119712031215
BB-Height to Hub75757575
Protrusion height - 50mm786815849883
Protrusion height - 80mm797823856889
Reach451452451455
Stack644644661681

ERGONOMICS

50 cm / S54 cm / M58 cm / L62 cm / XL
Length seat post300300300300
Diameter seatpost30.930.930.930.9
Angle stem31313131
Crank length175175175175
Diameter tire maximum751751751751
Width tire maximum62626262
Stem length65659090
Handlebar width700700700700
Professional Opinion
Fully equipped for anything that life – or adventures – can throw your way, the Kathmandu Hybrid SLX 750 sets the bar higher. With its fourth-generation Bosch CX drive unit and high-capacity 750Wh battery, it's got the power to take you further than ever. Shimano's reliable XT 1x12 gears put a huge range of hill-devouring ratios at your fingertip, and powerful four-piston XT hydraulic disc brakes help keep you safely in control in any weather. The RockShox Recon Silver air fork, suspension seatpost and adjustable stem are all there to ensure your comfort. And the elegant and tough Integrated Carrier 3.0 and full complement of included accessories make this probably the most versatile bike you've ever owned.
