The trace comes fully equipped for your commute with powerful disc brakes, mudguards and a rear carrier.
The trace comes fully equipped for your commute with powerful disc brakes, mudguards and a rear carrier.
Raleigh

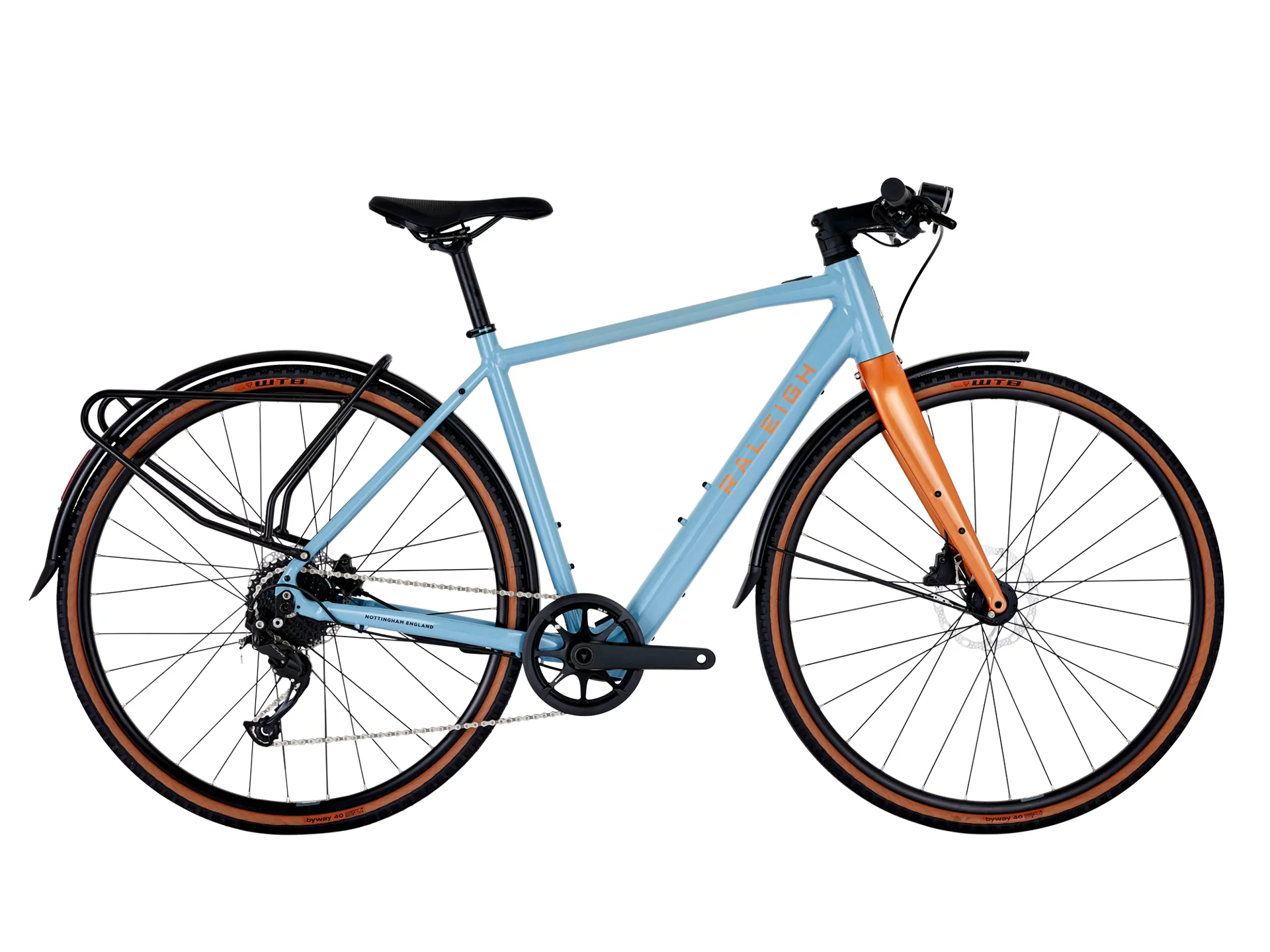

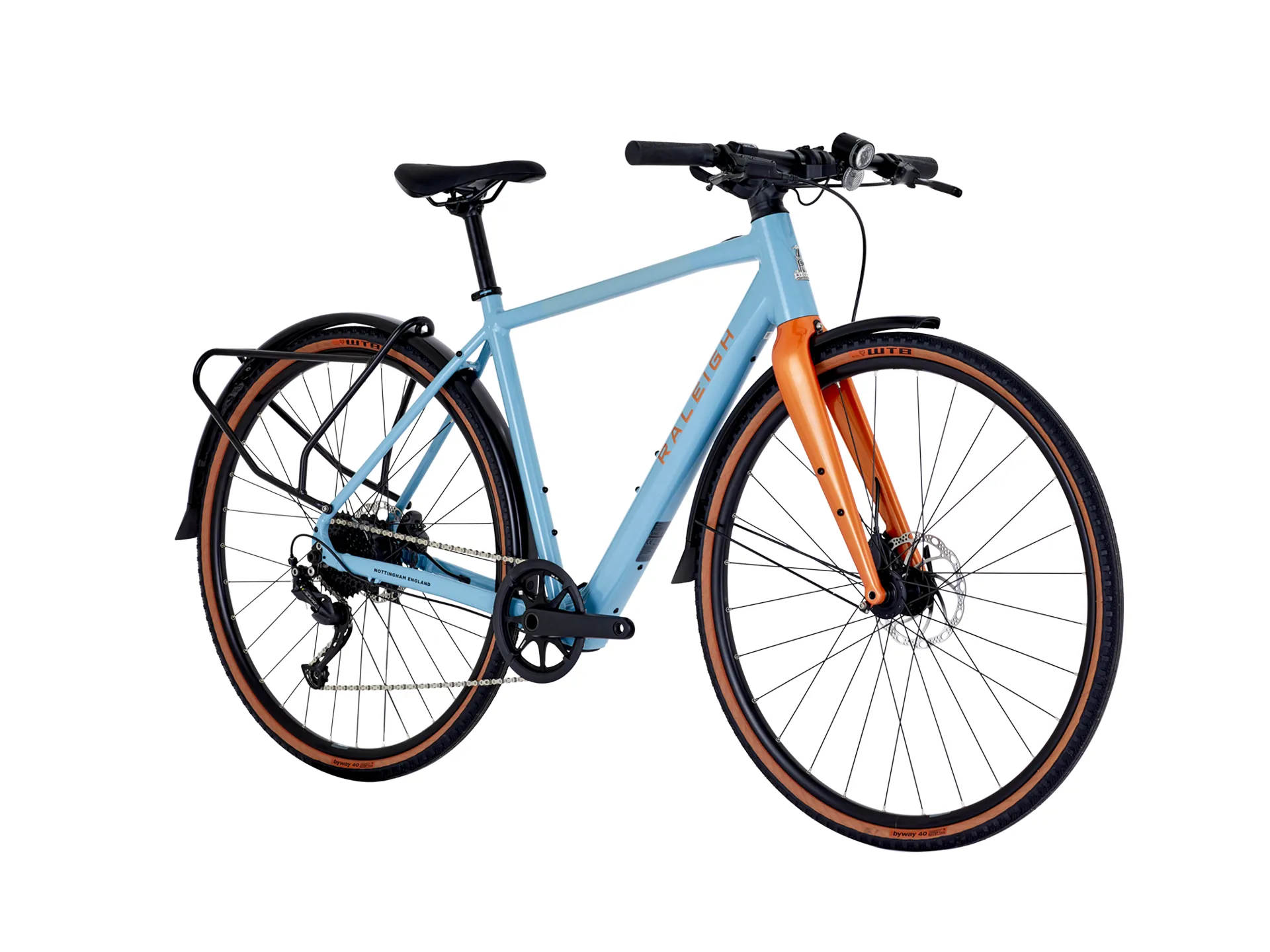

Raleigh Trace Electric Bike Crossbar Grey/Blue

£2,199.00
Pre-Order

With Pre-Order, you can purchase the latest items added to our store in advance of them arriving with us.

Your Pre-Order is prioritised (at no additional charge); meaning that as soon as the product arrives with us, we can wrap it straight back up; ready for collection via Click & Collect or despatch to you — it often never even hits the stock room shelves!

Pre-Launch

With Pre-Launch, the date when we expect to receive the product ourselves is still a little too hazy to be confident in accepting Pre-Orders.

So, instead, you can submit your email address against the item you are interested in and we will email you as soon as stock arrives on the system.

Estimated Delivery & Collection Dates

Estimated Delivery & Collection Dates are given on Pre-Order and Pre-Launch products. They are for indication purposes only and can change at any time without notice.

The dates we provide are based on indications given by our suppliers. Whenever we get updated information from our suppliers we will endeavour to update the Estimated Delivery & Collection Dates provided on product pages.

We estimate this will be ready for despatch to you or collection via Click & Collect on Undetermined

Hassle free returns & 28 day echange policy.

-Easy *Fast *Fair -

Download Returns PDF

Returns and Exchanges– for electric bikes and accessories

If you need to cancel the order or make an exchange under the distance selling regulations you must notify us within 14 days of receiving the item after which you will have a further 14 days to return the item. To do so please download the return form, complete it and include with the returned item. It couldn't be easier. We will process your exchange/refund as soon as we receive and open your return.

Items must be returned to the store you bought it from or your nearest store if purchased online. Shipping costs are paid by the buyer and are non refundable.

Refunds can only be made to the original card used for payment and if not known or available then we can at best offer a store credit to be used against future purchases.

Items must be returned in their original condition complete with all packaging, manuals, labels etc.

Custom, customised and special orders cannot be cancelled or returned. Riese & Muller eBikes are always configured to customer specifications and are therefore special orders and sales are final.

Used eBike Returns - We don't want you to be stuck with a bike you don't feel is right and so we accept returns for used bikes up to 28 days after purchase on the following conditions: 1. The condition is like new 2. All components and component packaging are present 3. All shipping, customisations and £10/mile of use will be charged for (minimum £100) along with a £50 restocking fee. 4. Used eBikes can only be exchanged and not refunded and this is entirely at our discretion.

Faulty Items
Faults - If your order arrives damaged or developes a fault we will use our wealth of experience as the UKs' very first ebike specialist to solve the issue quickly for you. Based on our support call history less than 16% of cases have required a visit to one of our sores. You can return a faulty item for a full refund within 30 days after which we reserve the right to have the opportunity to repair any faults. If you need any assistance we are here to help (even out of hours) simply contact, your nearest store or use our contact form.

Opened eBike Parts

We cannot accept returned eBike parts if the packaging has been opened. This is because components connected to faulty bikes may be damaged. To avoid disappointment we have a no nonsense professional diagnosis service available at all of our stores for a very reasonable set fee.

Raleigh Trace Electric Bike Crossbar Grey/Blue

Season:2023

Brand:Raleigh

Code:30406BLU

The trace comes fully equipped for your commute with powerful disc brakes, mudguards and a rear carrier. With a comfy saddle and derailleur gear system, you?Ve got all the speeds you need to navigate around the city streets
Technical Information
PARTCODE(S)RPE42CT, RPE46CT, RPE50CT, RPE55CT, RPE42CT1, RPE46CT1, RPE50CT1, RPE55CT1
FRAMESET
Frame TypeHigh
Frame MaterialAluminium 6061
Fork TypeRigid tapered carbon fork
Fork MaterialCarbon
Size(s)Xsmall (42cm), Small (46cm), Medium (50cm), Large (55cm)
Colour(s)Blue, Red
Total Bike Weight16.5kg
E-SYSTEM
Motor PositionRear Wheel
MotorEbikemotion X35 rear hub
BatteryEbikemotion X35 internal battery 250Wh
DisplayEbikemotion X35 Top tube HMI iWoc 1 control
Range50 miles
ChargerEbikemotion X35 2A
Charging Time4 hours
COMFORT
HandlebarAluminium handlebar 640mm
GripsXLC confort grips
StemAluminium stem XS/S-80mm, M-90mm, L-100mm
SaddleSelle Royal Vivo
SeatpostAluminium seatpost 27.2x350mm
Seatpost ClampAluminium Clamp 31.9
CONTROLS
Front BrakeTektro R280 Flat mount hydraulic disc brake, 160mm
Rear BrakeTektro R280 Flat mount hydraulic disc brake, 160mm
Number of Gears9
Front ShifterN/A
Rear ShifterShimano Acera rapidfire 9 speed shifter
BellN/A
DRIVETRAIN
Gear TypeDerailleur
CranksetAluminium crank with direct mount chainring and Chainguard 40t 170mm
Bottom BracketPressfit BB 86mm
PedalsAluminium platform pedal
Front DerailleurN/A
Rear DerailleurShimano Alivio 9 speed rear derailleur
Hub GearN/A
CassetteShimano HG200 9 speed 11-34t
ChainKMC X9 9 speed chain
ChainguardN/A
WHEELS
Front Wheel700c double side wall rim with thru axle aluminium hub 28H
Front Tyre700x40c WTB ByWAY tanwall
Rear Wheel700c doube side wall rim with X35 motor hub 32H
Rear Tyre700x40c WTB ByWAY tanwall
Inner Tubes622x40 schrader valve
EXTRAS
MudguardsCurana full mudguard set
Rear CarrierLow profile rear carrier
Front CarrierN/A
Front LightAXA Compact Line 35
Rear LightIntegrated into Mudguard
StandN/A
LockN/A
StabilizersN/A
RRP£
Sizing Information
Professional Opinion
Tap in, tap out, press start, press stop. Have you ever considered how much fun your journey could be if it weren’t for timetables, traffic jams, and diversions? The freedom to go whenever and wherever almost sounds too good to be true. Except, it’s not.

No fumes, more zooms, make tracks around the city that leave no trace. We designed Trace to be your call to fun and freedom. Wave goodbye to gridlock, there’s adventure to be had; and all before 9 am.

This lightweight, electric bike makes nipping about the city 10x more enjoyable. The unassuming frame hides a 250Wh battery to give your journey a welcome boost - meaning you have time to prioritise the really important decisions; like what pastry to get with your morning coffee.

Make your mark and redesign your routine; no sweat, no grind, just ride.

Key Features:

Lightweight

Coming in at 16.5kg, this nimble electric bike can nip about the city with ease. Apartment living? No problem. Trace is designed to be heavy on features, and light on weight.

It’s Electric?

It sure is. Though you’d never know from looking at it, would you? The stealthy electrical assistance is tucked away neatly into the frame, ready and waiting for when you need a little extra boost.

Fully Quipped

Lights, panniers, action. Geared up for hitting the tarmac, Trace has everything you need to explore your urban playground with ease.
