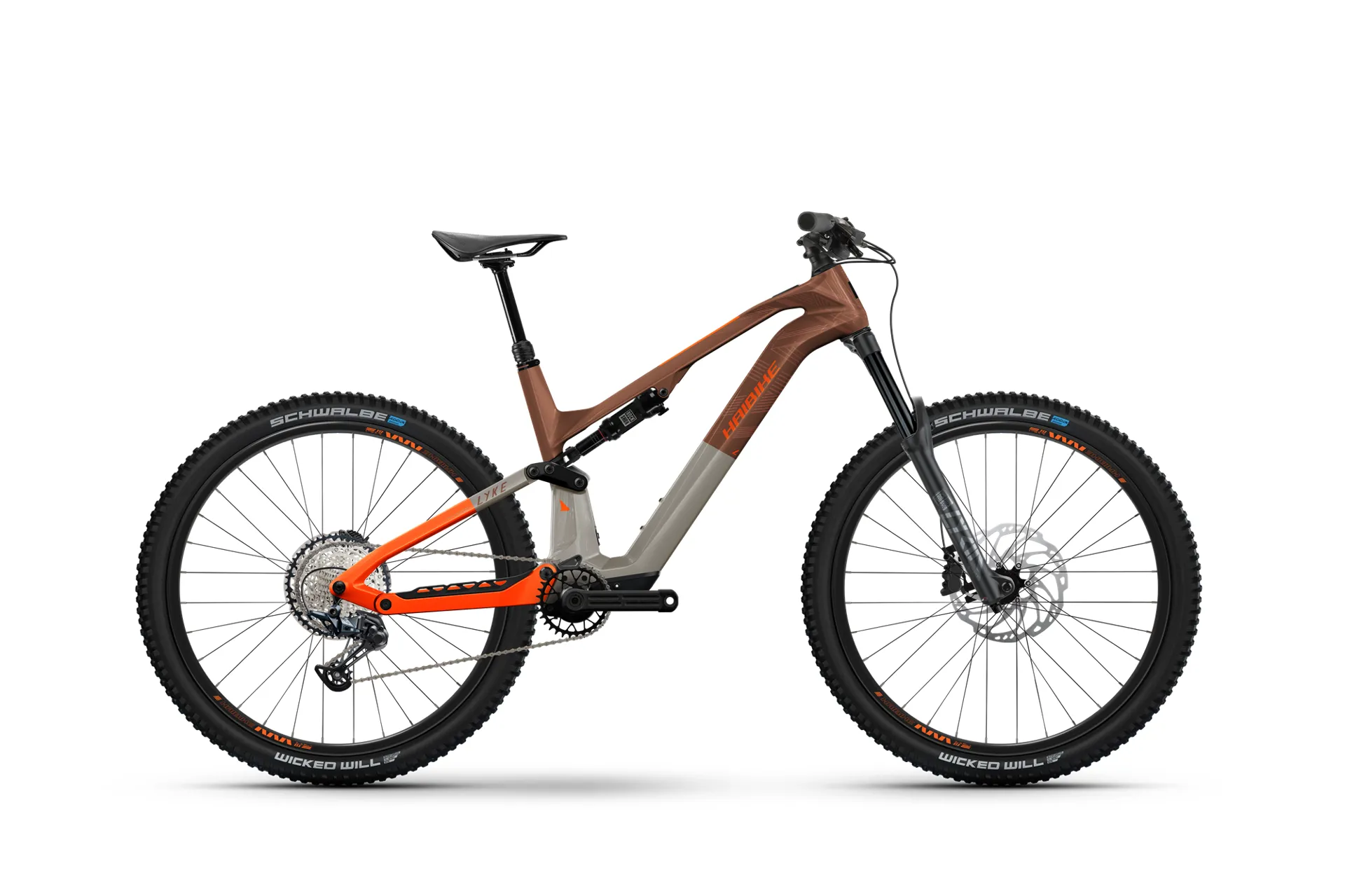

Haibike Lyke 10 Electric Mountain Bike in Brown

Season:2023

Brand:Haibike

Code:HMPP1BRN

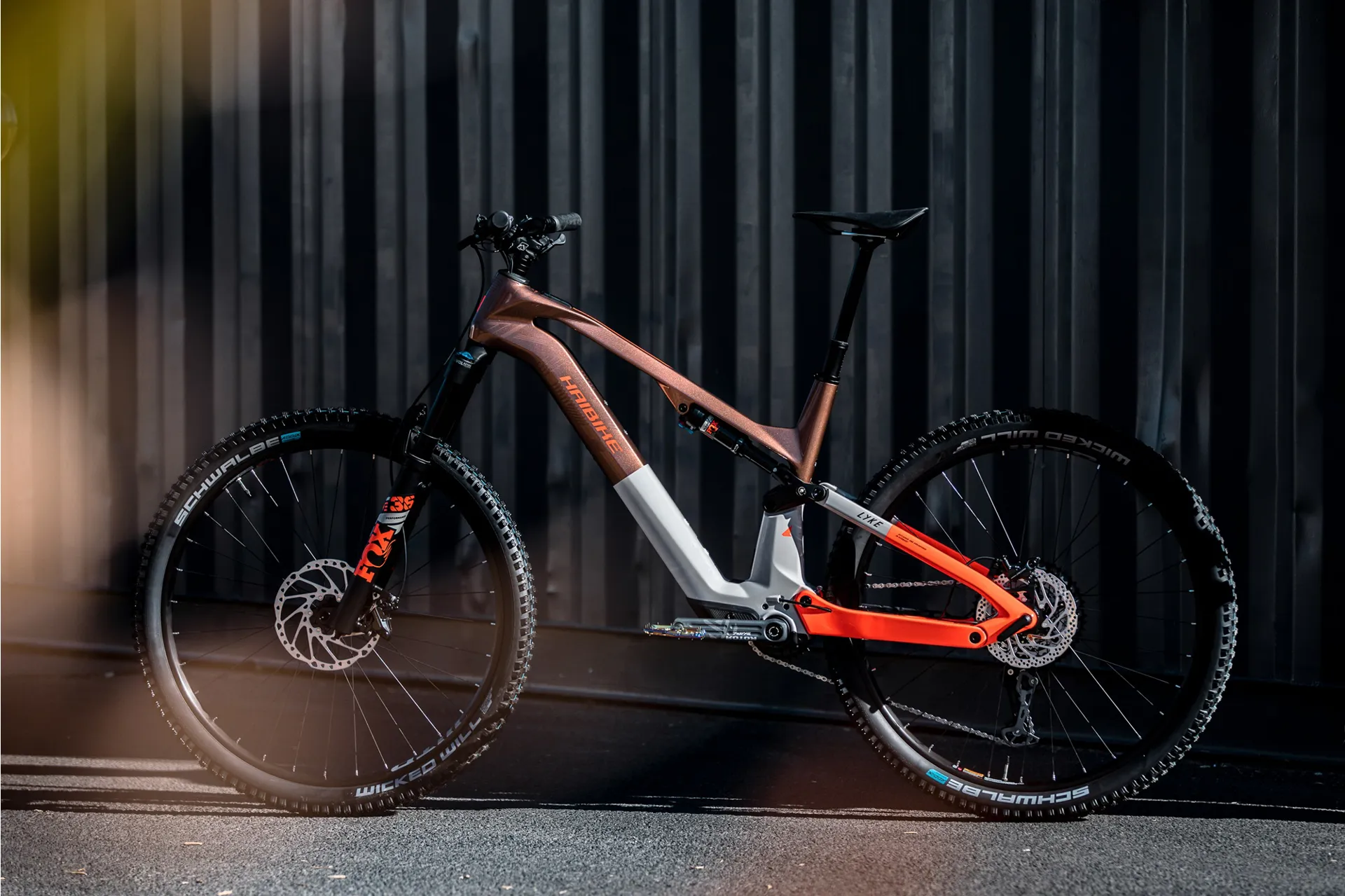

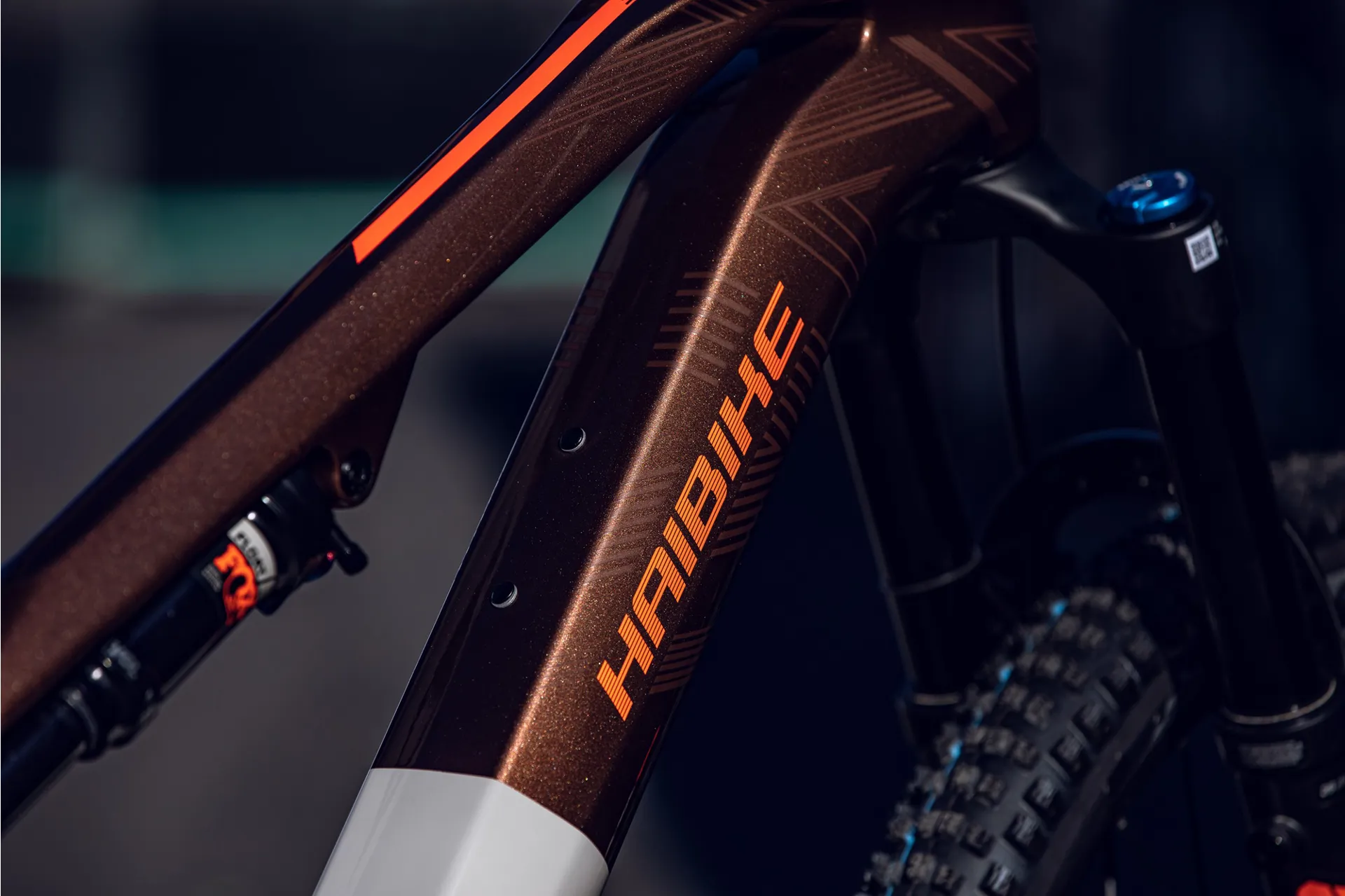

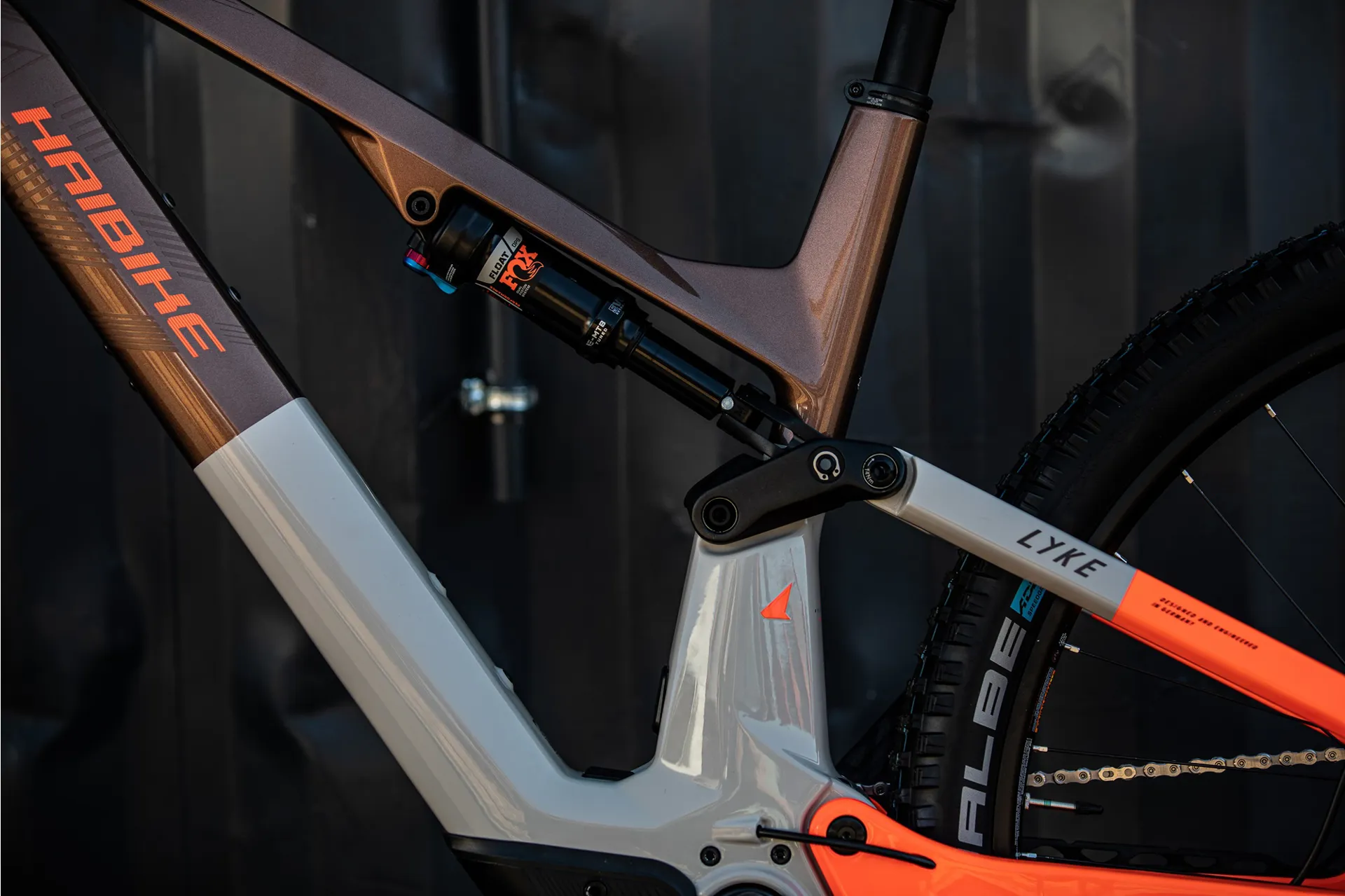

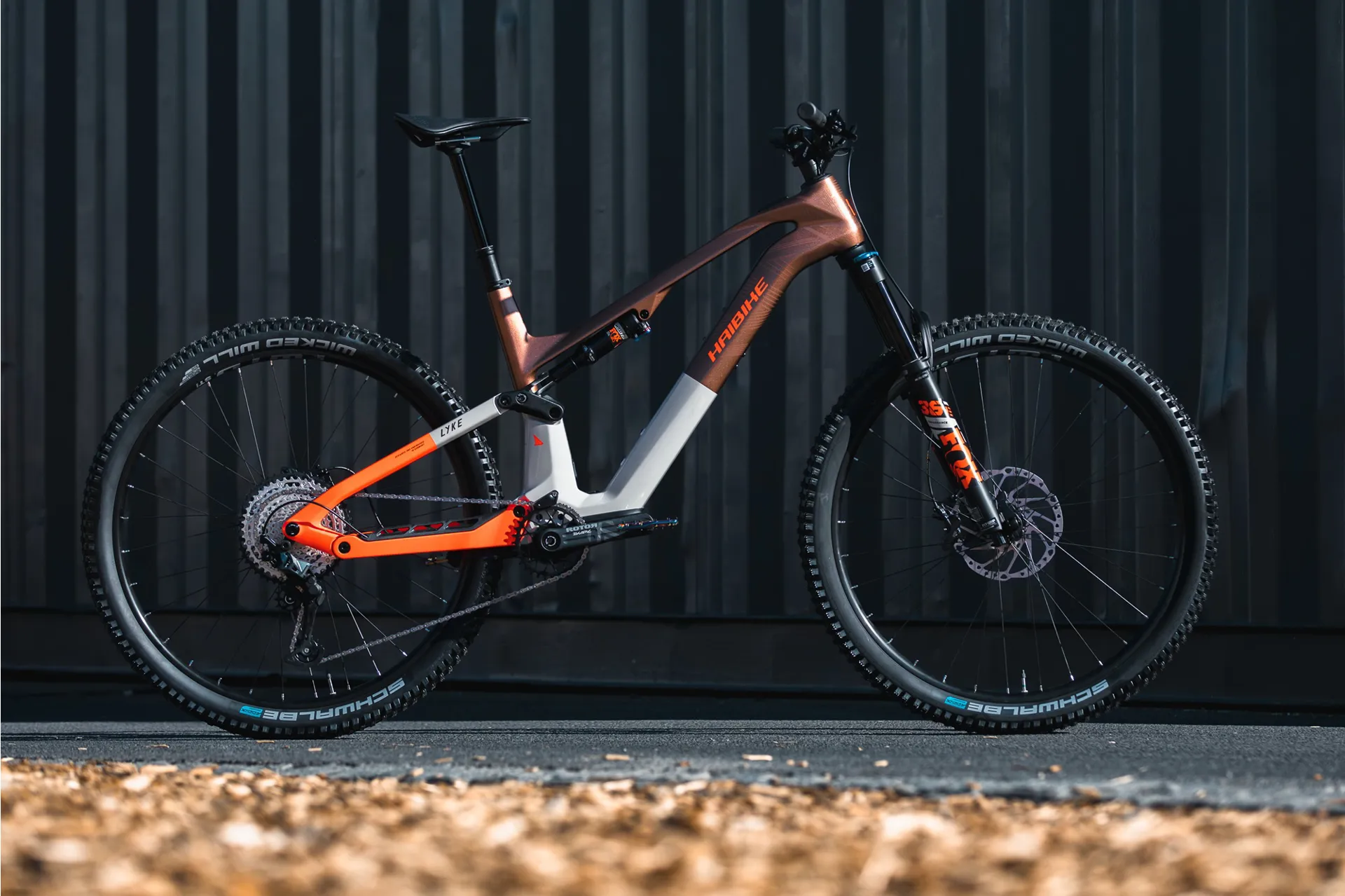

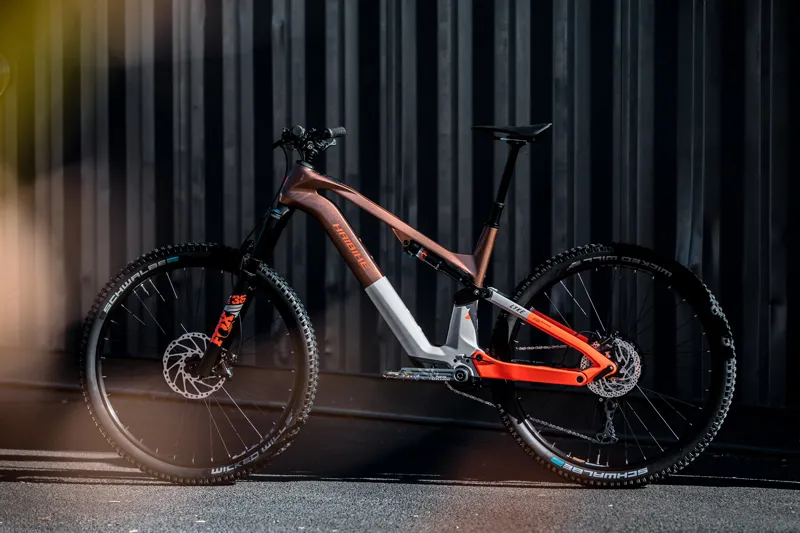

For those who like it light and fast: The Lyke 10, of our new Light eMTB line, convinces with low weight and maximum ePerformance on the trail. The brand new ultra-light Fazua Ride60 motor saves weight and provides just the right support on the mountain. This is where you also benefit from the weight-optimized carbon frame with closed downtube and new kinematics. Due to the innovative placement of the motor in the seat tube, the center of gravity is directly above the bottom bracket, which also provides improved handling. Reliable Shimano shifting and braking components, and 140mm RockShox suspension specification offer you carefree riding pleasure. The Lyke 10 is the ideal partner for riders who are looking for extra support and at the same time an agile eMTB.
Technical Information
  • ENGINE
    Fazua, Ride60, 250W, 60 Nm
  • DISPLAY
    Fazua, Straight bar Ring control
  • BATTERY
    Fazua, Energy InTube, 430 Wh
  • FRAME FAMILY
    Haibike, Lyke, Carbon
  • FORK
    RockShox, Lyrik Select, Air, travel= 140 mm, Aluminium steerer tube 1 1/8" - 1 1/2" tapered, 15 x 110mm thru-axle Boost
  • DAMPER
    RockShox, Deluxe Select Plus, Air
  • CRANK ARM
    Rotor, E-Kapic, Aluminium
  • BRAKE (FRONT)
    Shimano, M6120, Hydraulic disc brakes
  • BRAKE (REAR)
    Shimano, M6120, Hydraulic disc brakes
  • TUBE
    Presta valve
  • RIM
    WTB, ST i30 TCS, Double Wall
  • CLAMPING RING
    Internal hexagon, 34.9 mm
  • REAR DERAILLEUR
    Shimano, SLX M7100
  • SHIFT LEVER
    Shimano, Deore SLX M7100
  • BOTTOM BRACKET
    integrated in the motor
  • SPROCKET
    Shimano, M6100, 10 - 51 teeth
  • CHAIN
    Shimano, CN-M6100
  • CHAINRING
    Rotor, Aluminium, 32 teeth
  • CHAIN GUIDE
    Nylon directmount
  • BRAKE LEVER
    Shimano, Deore M6100, Aluminium,
  • BRAKE DISC (FRONT)
    Shimano, RT-EM600MEC, 180 mm
  • BRAKE DISC (REAR)
    Shimano, RT EM64LEC, 203 mm
  • TYRE
    Schwalbe, Wicked Will Evo Super Ground, 29" x 2.4"
  • FRONT WHEEL HUB
    Shimano, MT400-B, Centerlock
  • REAR WHEEL HUB
    Shimano, MT410, Centerlock
  • SPOKES
    Sapin, Race, Black
  • HANDLEBAR
    XLC, FlowBy, 780 mm
  • GRIPS
    Haibike, MTB grips
  • STEM
    XLC, FlowBy, A-head, 31.8 mm
  • HEADSET
    Acros, BlockLock, Aluminium
  • SADDLE
    Selle Italia, Model X
  • SEAT POST
    Dropper-Post Remote, Aluminium, Telescope, 31.6 mm
  • PEDALS
    Freeridepedal, Aluminium, with Reflector
  • PERMITTED TOTAL WEIGHT
    120.0 kg
  • GEAR SHIFT
    Shimano, Nexus
  • TYRE (REAR)
    Schwalbe, Wicked Will Evo Super Trail, 29" x 2.4"
Sizing Information
GEOMETRY


SMLXL

A

FRAME HEIGHT (CM)

41.0 cm

44.0 cm

47.0 cm

50.0 cm

B

SEAT TUBE ANGLE

74.0 degrees

74.0 degrees

74.0 degrees

74.0 degrees

C

SEAT TUBE OFFSET (MM)

36.0 mm

36.0 mm

36.0 mm

36.0 mm

D

SEAT ANGLE

77.3 degrees

77.3 degrees

77.3 degrees

77.3 degrees

E

HEAD TUBE LENGTH

110.0 mm

120.0 mm

130.0 mm

140.0 mm

F

HEAD TUBE ANGLE (DEGREES)

65.0 degrees

65.0 degrees

65.0 degrees

65.0 degrees

G

TOP TUBE HORIZONTAL

562.0 mm

592.0 mm

622.0 mm

652.0 mm

H

CHAIN STAY LENGTH

450.0 mm

450.0 mm

450.0 mm

450.0 mm

I

BOTTOM BRACKET DROP

-25.0 mm

-25.0 mm

-25.0 mm

-25.0 mm

J

WHEELBASE

1195.0 mm

1227.0 mm

1259.0 mm

1290.0 mm

K

STACK

611.0 mm

620.0 mm

629.0 mm

638.0 mm

L

REACH

424.0 mm

452.0 mm

479.0 mm

506.0 mm

Professional Opinion
