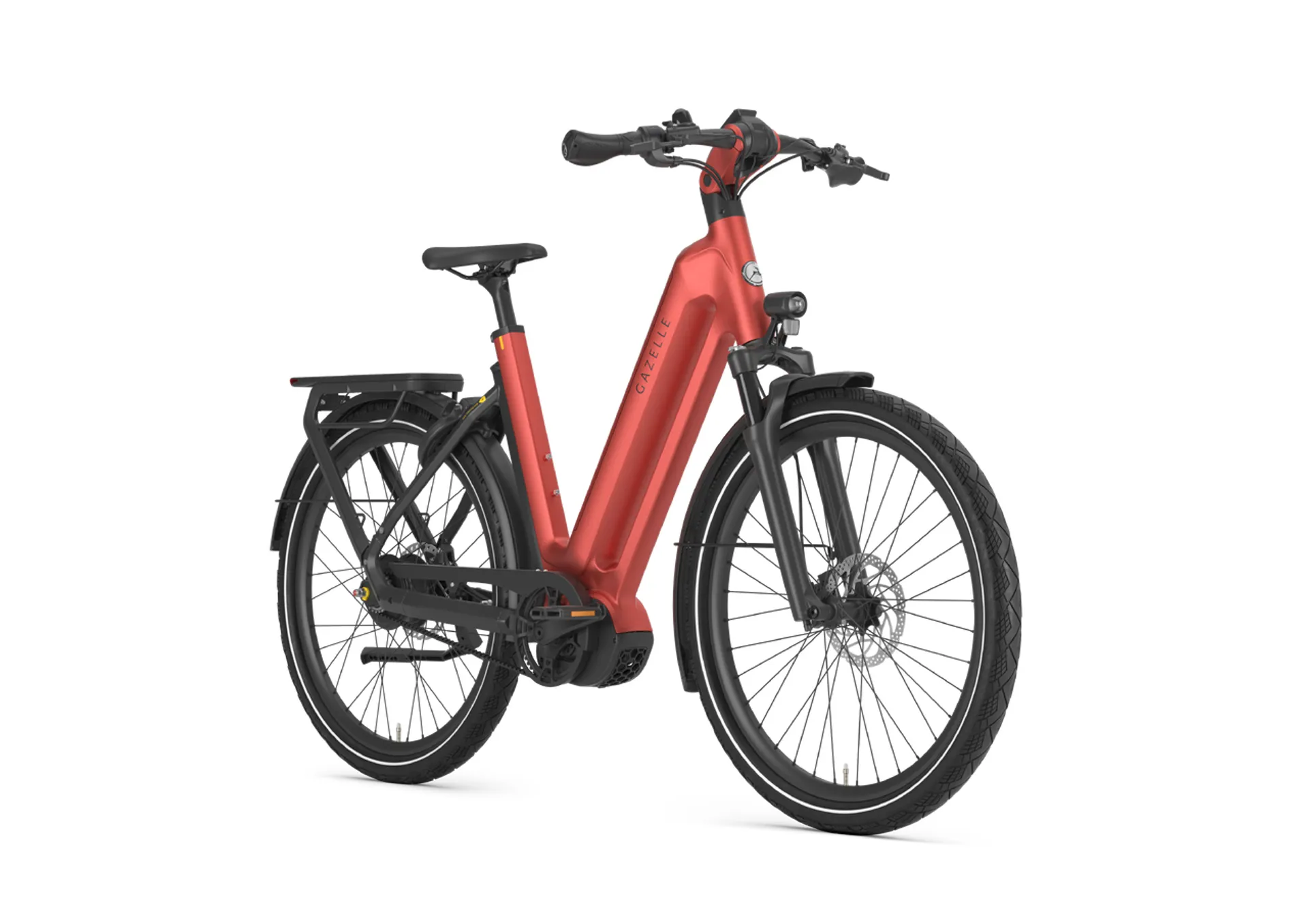

Gazelle Eclipse C380 HMB L 27.5 SE 750Wh Low Step Electric Bike Metallic Orange

Season:2024

Brand:Gazelle

Code:G3636

Eclipse C380 HMB

Get out there and keep on going with the Eclipse C380 HMB thanks to Bosch's most powerful mid-drive motor and the high-capacity battery. Stepless shifting for extra convenience.

Technical Information
Gear system descriptionEnviolo 380 Trekking Manual stepless gear system
Engine modelBosch Performance Line CX Smart System (85 Nm)
ModelEclipse
ColornameMetallic orange
Fork suspension typeTelescopic, spiral spring
ModelEclipse
Weight in kg.28.3 kgs
SegmentElectric bicycles
Sitting positionActive
Maximum permissible weight130 kg
Maximum permissible weight330 Lbs
Frame shapeLow-step
Size45, 50, 55, 60
Frame descriptionAluminium frame with 71.5° seat tube angle and 70.5° head tube angle. Sporty seat and dynamic handling. Battery capacity of up to 750 Wh available for each ride.
Frame materialAluminium
Cabels integratedYes
Fork materialAluminium
Fork suspension typeTelescopic, spiral spring
Travel of suspension fork75 mm
Front fork suspension lock-outYes
Wheelsize27,5"
RimsRyde Zac 25, Double-walled aluminium for extra strong and efficient cycling performance
Spoke descriptionStainless steel, extra strong
TiresSchwalbe Marathon Efficiency
Tire colorBlack
Tires puncture resistantYes
Gear system descriptionEnviolo 380 Trekking Manual stepless gear system
Gear typeHub
GearsStepless
Front chainwheel50
Rear chainwheel22
Brake FrontDisc brake with hydraulic control
Brake RearDisc brake with hydraulic control
Disc brake rotor size front180 mm
Disc brake rotor size rear180 mm
Brake system description frontShimano BR-MT420, 4 piston
Brake system description rearShimano BR-MT420, 4 piston
Handlebar descriptionAluminium, slightly curved model
Adjustable stemYes
Grip typeErgon GP1-L, ergonomic
GripsPlastic handlebar grips with ergonomic form for a better distribution of pressure on the hands
SaddleSelle Royal Essenza Plus gel
Seatpost descriptionFixed
Seatpost diameter31,6 mm
Light front descriptionLED headlamp, on/off switching via display
Front light typeHerrmans H-black PRO
Ebike system short descriptionBosch smart system
Engine locationMid-drive motor
Max Speed (km/h)25 km/h
Max speed (mph)Class 3 (28 mph)
Torque85
Engine modelBosch Performance Line CX Smart System (85 Nm)
Ebike sensorsPedal force sensor, rotation sensor, speed sensor
Battery typeLi-ion
Battery positionIntegrated into frame
Battery replaceableYes
Battery systemBosch
Ebike charger description4 Ah
Amount of support levels4
Display control unitYes
Walk assistYes
Display ModelBosch Kiox 300
Display detachableYes
Warranty frame10 years’ warranty
Warranty fork5 years’ warranty
Warranty paint5 years’ warranty
Warranty other parts2 years’ warranty
Warranty battery2 years’ warranty
Warranty motor2 years’ warranty
Warranty diplay2 years’ warranty
Lock descriptionRing lock
Lock safety levelART ** certified
Lock TypeAxa Imenso
Chaincase description1Aluminum
Kickstand typeDrop-down rear stand
KickstandUrsus Mooi
Chaincase typeChain guard
Rear carrier descriptionAluminum MIK HD system carrier
Carrier MIK systemYes
Sizing Information
Professional Opinion

Eclipse C380 HMB Details.

Eclipse C380 HMB

Get out there and keep on going with the Eclipse C380 HMB thanks to Bosch's most powerful mid-drive motor and the high-capacity battery. Stepless shifting for extra convenience.

Craftsmanship

With over 130 years of expertise, we know precisely what we're doing. Creating bicycles that you can rely on. What begins with a design comes together in our factory. Where we work everyday to create the perfect Gazelle for you.

Discover the Eclipse

Neatly integrated and long-lasting battery

Bosch's lithium-ion batteries are among the most advanced on the market. The integrated 750-Wh battery ensures that you never come to a standstill. The battery is locked into the frame and can be easily removed using the bike key. This is convenient, as you can charge the battery either on or off the bike. Because the battery is quite large, we have developed a special carry handle. As an added bonus, this better protects the battery against being stolen from the bike. It's a win-win situation!

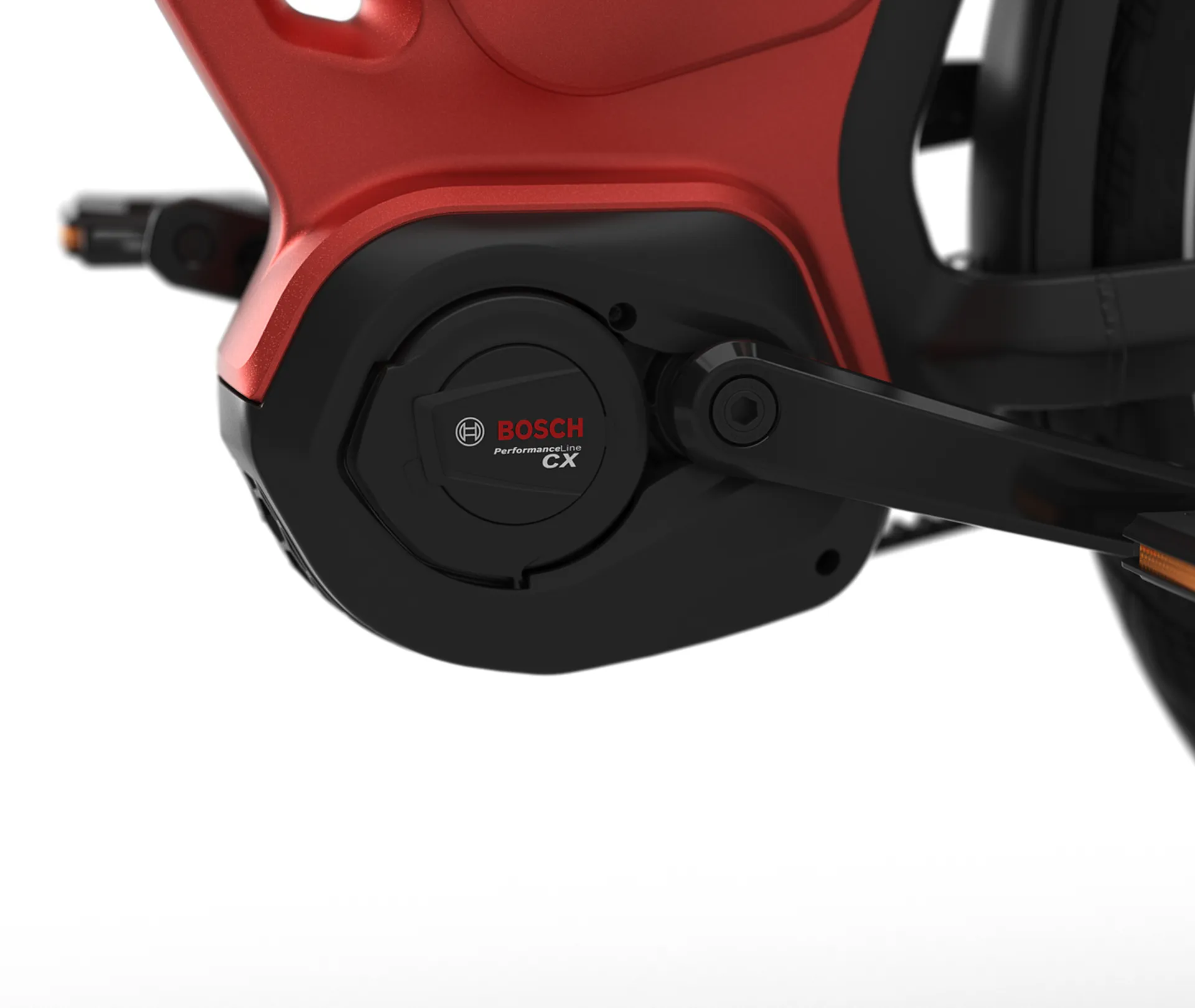

The sky's the limit with this powerful Bosch motor

With the Bosch Performance Line CX motor, you can overcome any challenge you may face. The torque of 85Nm means you'll never come to a standstill on steep hills or mountains and you'll be able to embark on any adventure with confidence.

No slope is too steep

Taking on one or more hills is no problem for the Eclipse C380 HMB. This e-bike features Bosch's most powerful mid-drive motor, the Performance Line CX. It has a maximum torque of 85Nm that allows you to effortlessly tackle even the steepest of slopes. The motor is powered by the battery that is neatly integrated into the frame. Its capacity (750Wh) is sufficient for long rides with support, without needing to recharge along the way.

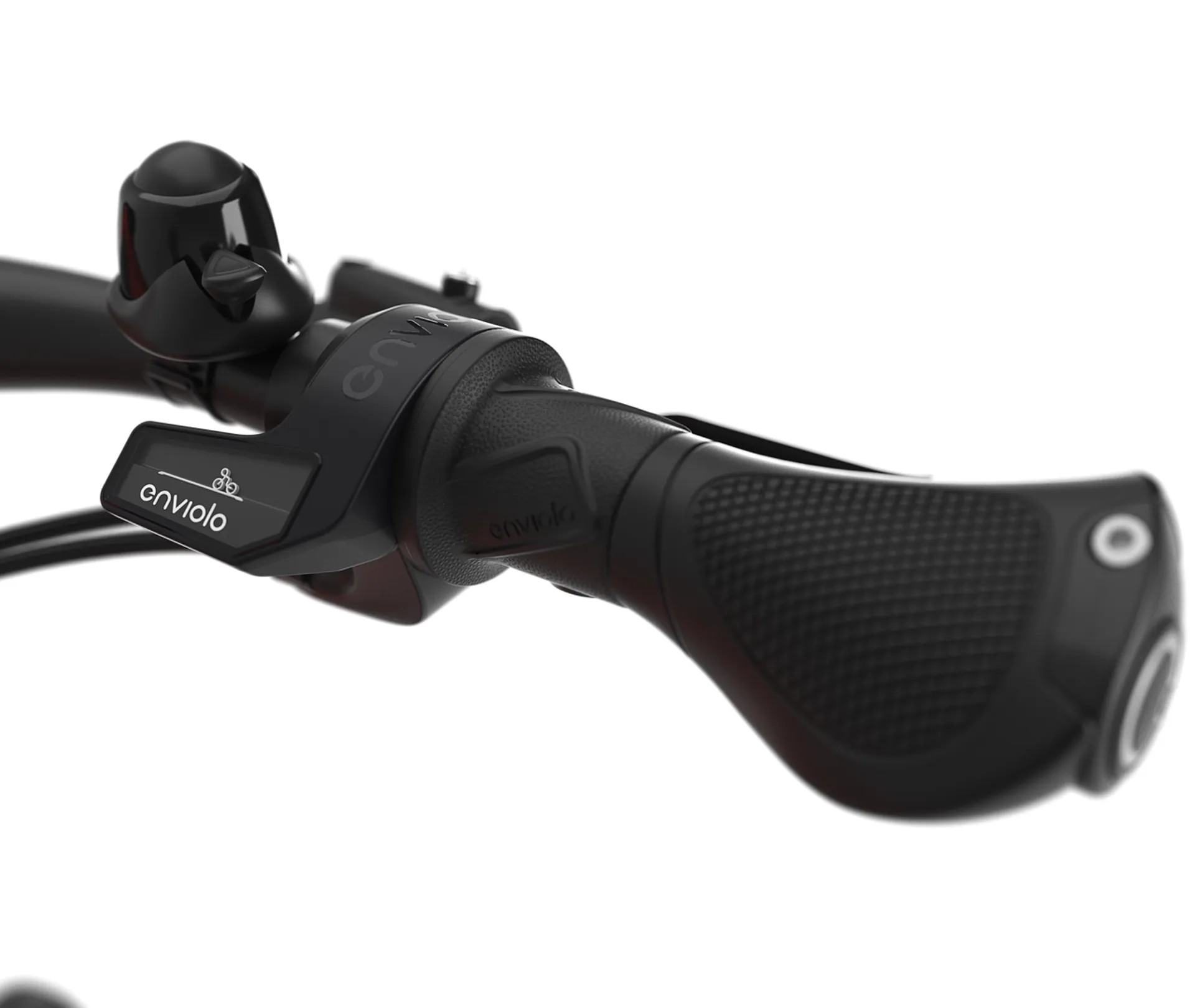

Always in the right gear

Switching gears is a breeze, which means a pleasant riding experience for you. The Eclipse C380 HMB features Enviolo's stepless shifting gear hub. It has no fixed shifting positions, you simply twist the shifter for a slightly higher or lower gear. You can even do this without having to stop pedalling, which is ideal for shifting gears while on steep slopes. As you can see, the Eclipse C380 HMB offers amazing convenience!

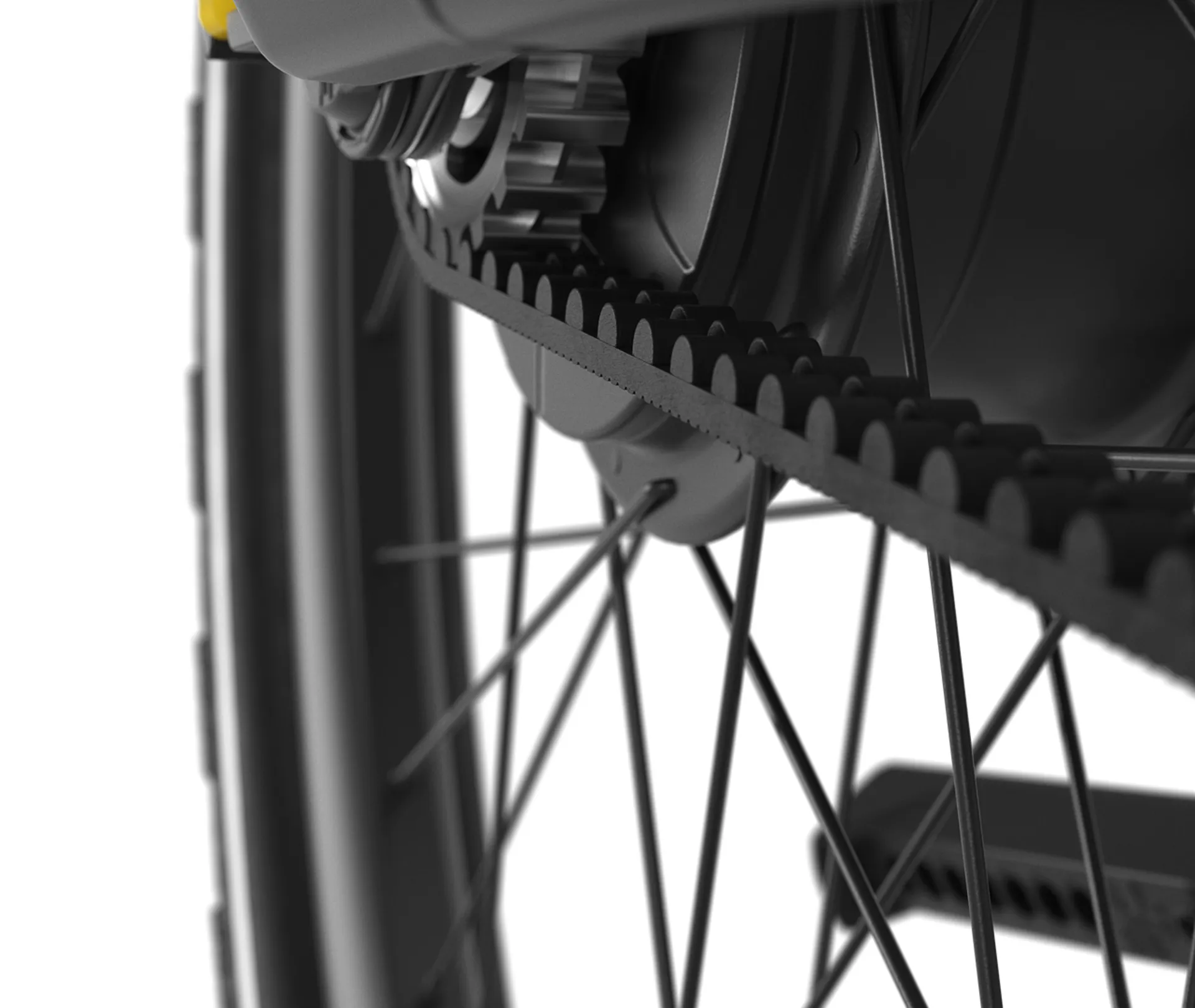

Low maintenance: no need to lubricate

If doing maintenance isn't the first thing on your mind after a nice, relaxed ride, then the Eclipse C380 HMB is the right model for you. It has a belt drive instead of a chain — which, unlike a chain, doesn't need to be lubricated. Use a cloth to wipe off coarse dirt from time to time. An additional advantage: the belt drive is as quiet as a whisper, so you don't hear any squeaks and creaks. It lasts up to five times longer than a chain. It can't rust.

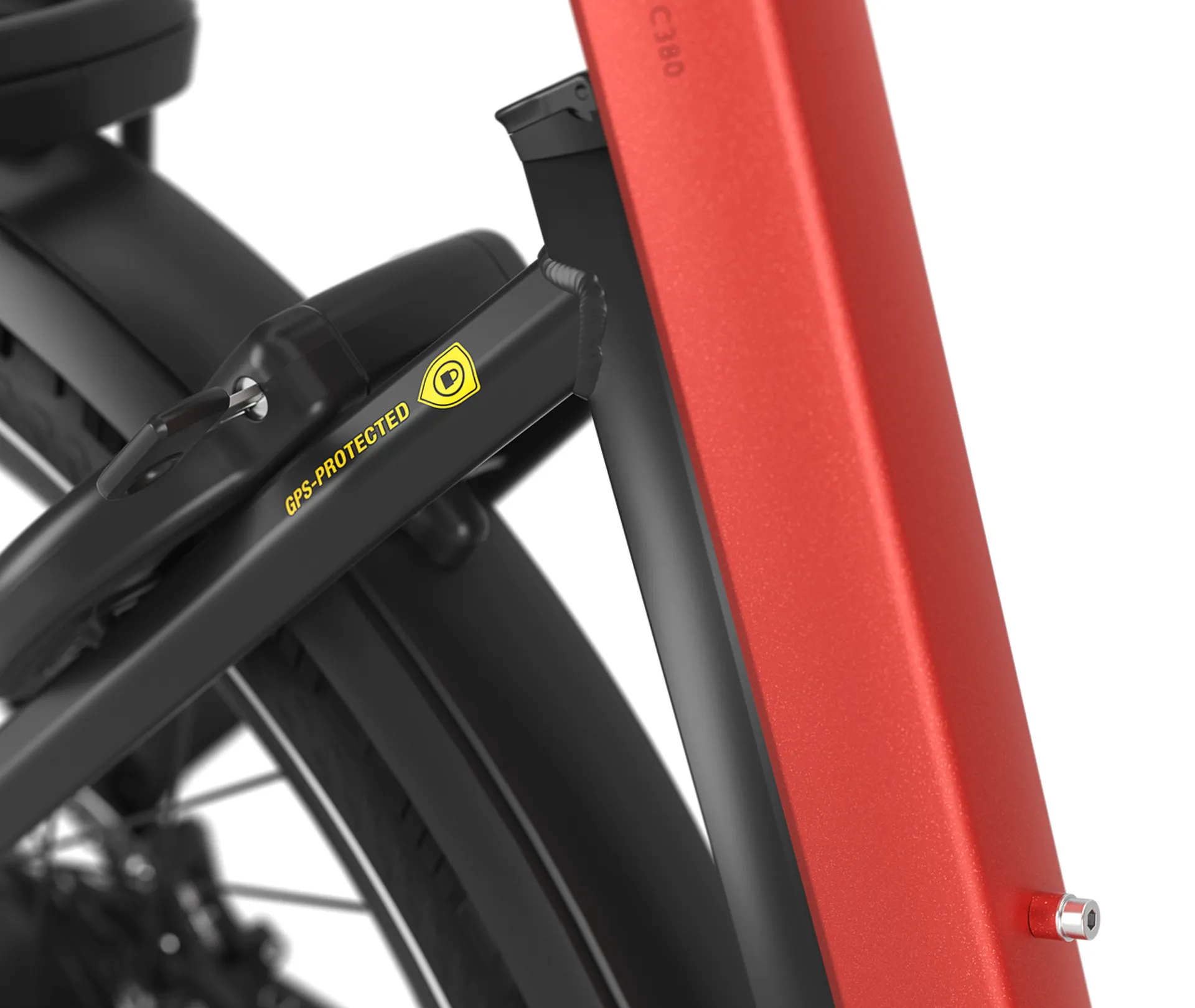

Protected against theft

The Eclipse C380 HMB is a bike with Gazelle Connect. It's a smart e-bike with theft protection. A module connected to the Internet is built into the e-bike. This module ensures that the bike is always traceable using GPS. This is also clearly marked on the bike frame, so thieves will think twice before trying to make off with it. If the bike starts moving, you will receive a notification via the Gazelle App.

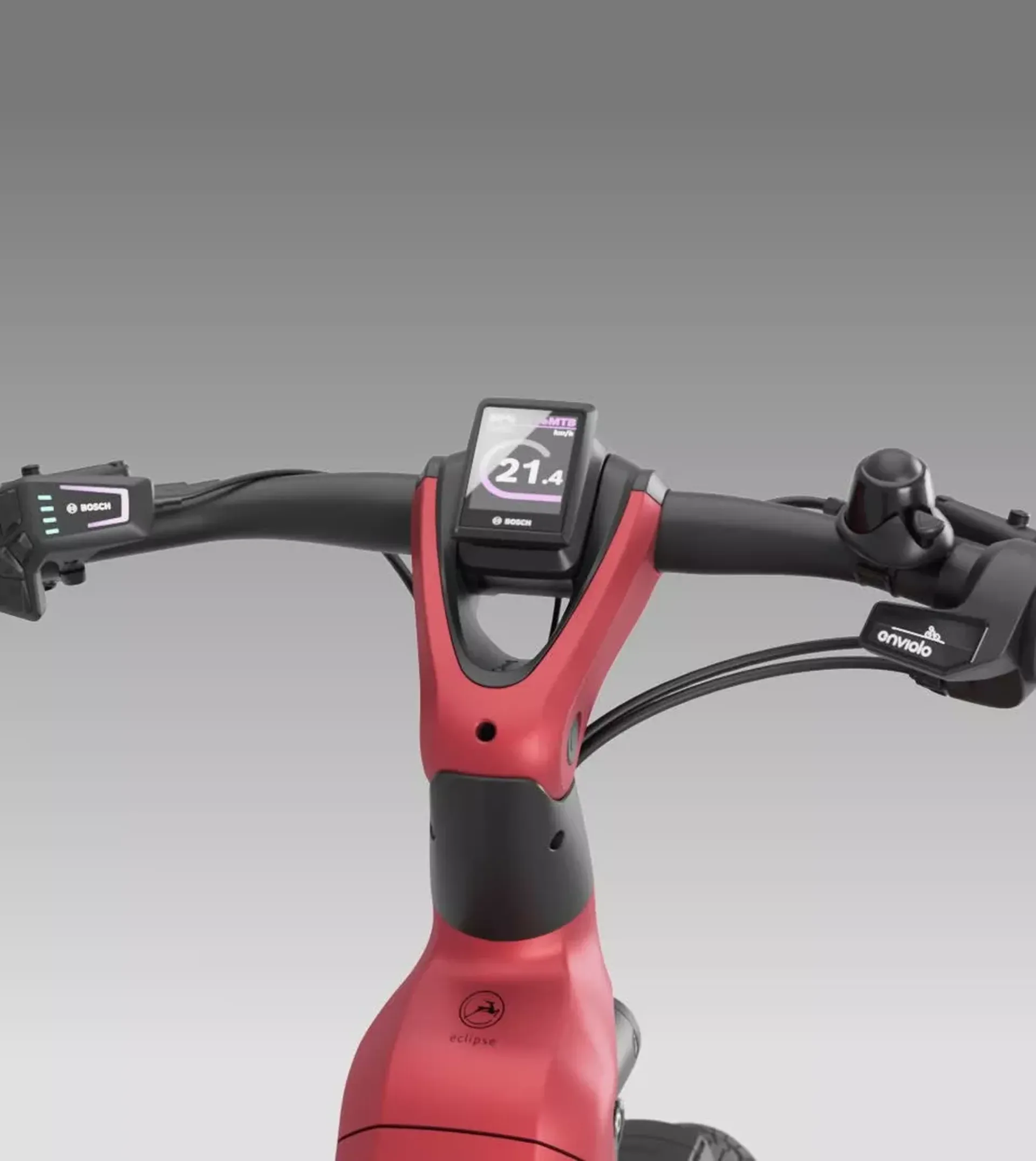

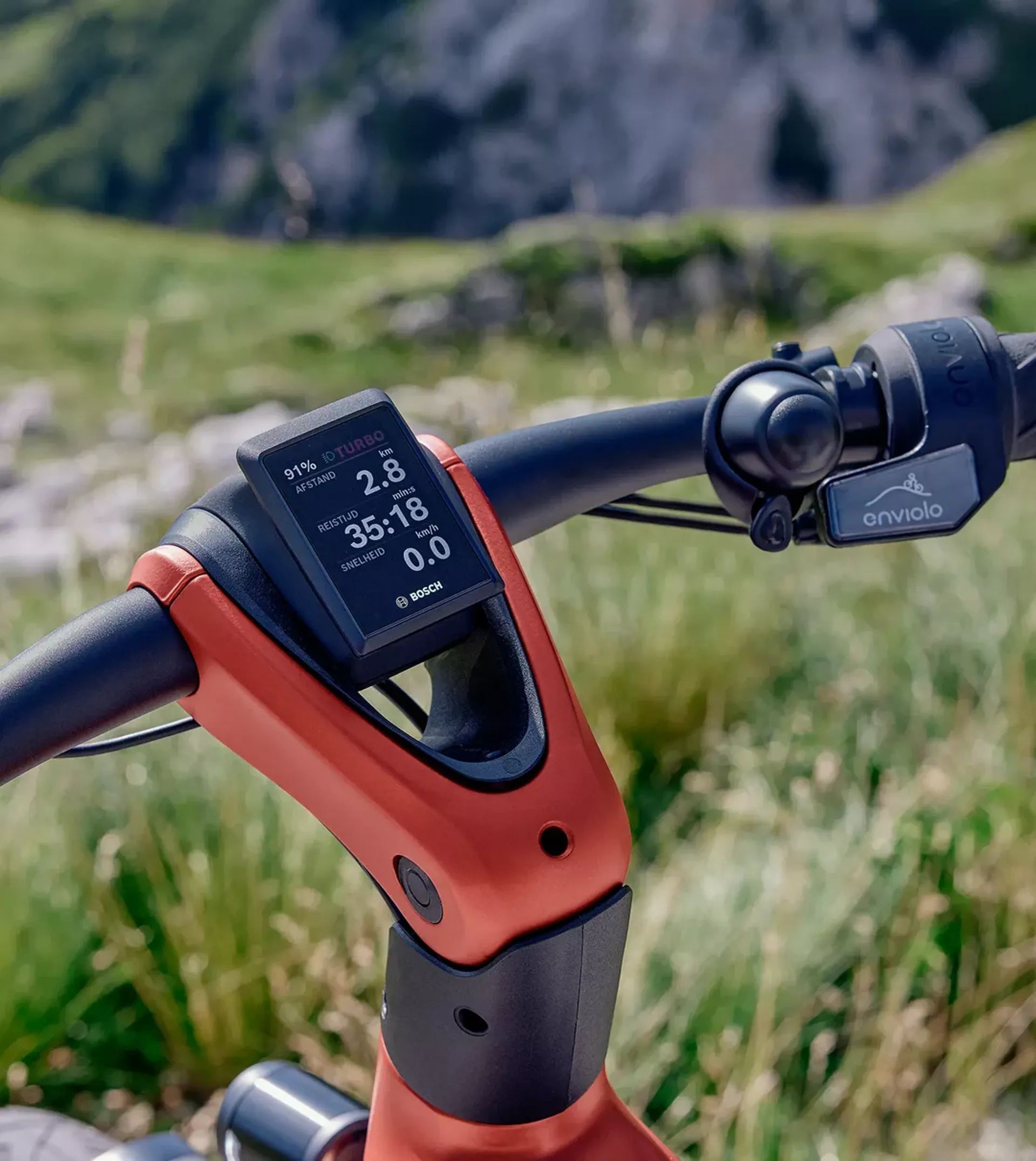

Focus on design and integration

The iconic, single-coloured Gazelle V-shaped handlebar stem not only makes for a beautiful design, but also integrates the Bosch Kiox 300 display. The cables are also neatly tucked away in the headset.

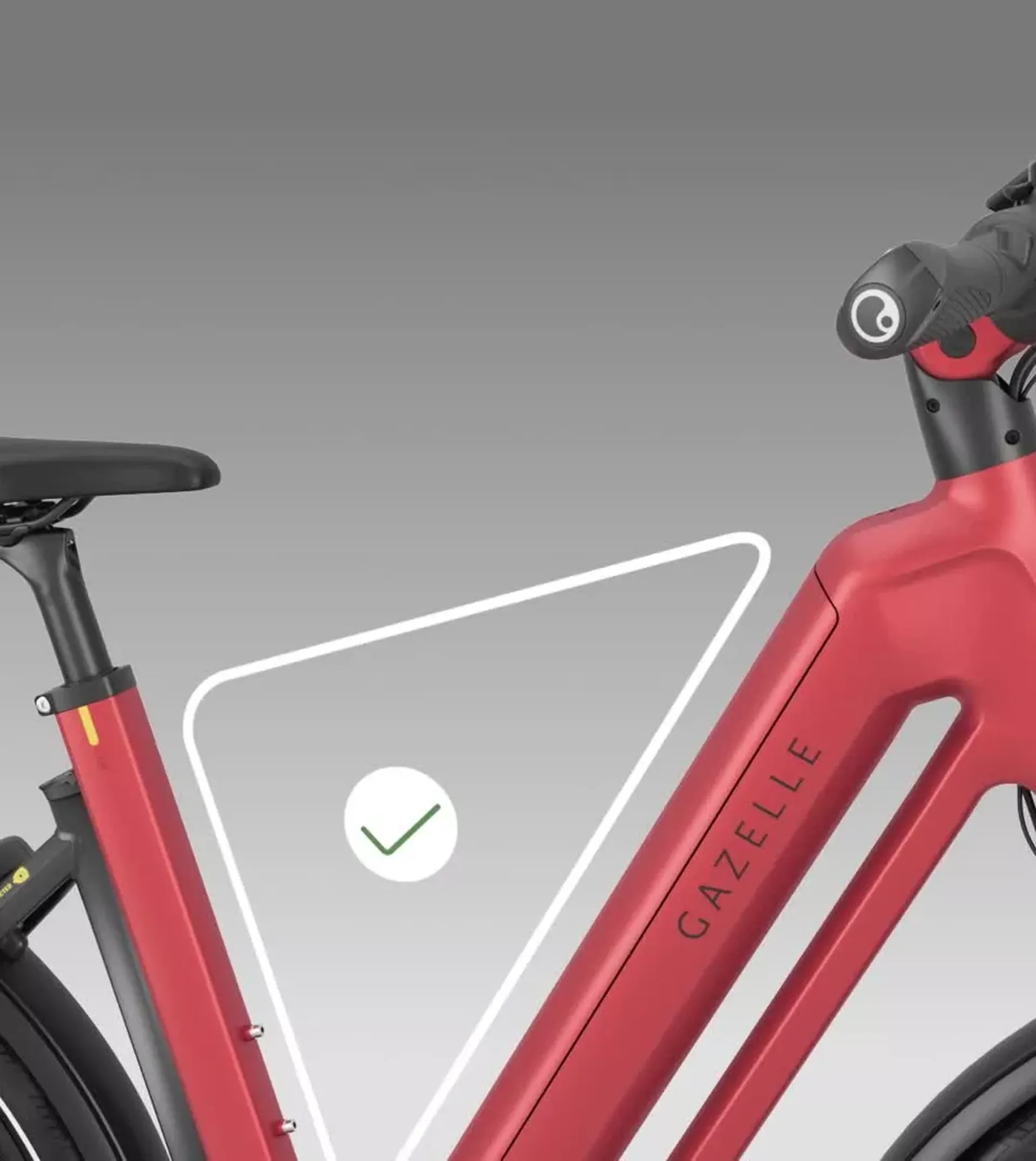

Well-designed active riding position

The unique design makes for the perfect combination of an active riding position and a large battery of up to 750 Wh, so you can focus on the world around you.
