Evolution never stops. That's why, across all frames in Cube's SizeSplit system, the Stereo Hybrid 140 HPC now features the ability to house up to a 750Wh battery under its dust- and splash-proof cover.
Evolution never stops. That's why, across all frames in Cube's SizeSplit system, the Stereo Hybrid 140 HPC now features the ability to house up to a 750Wh battery under its dust- and splash-proof cover.
Cube

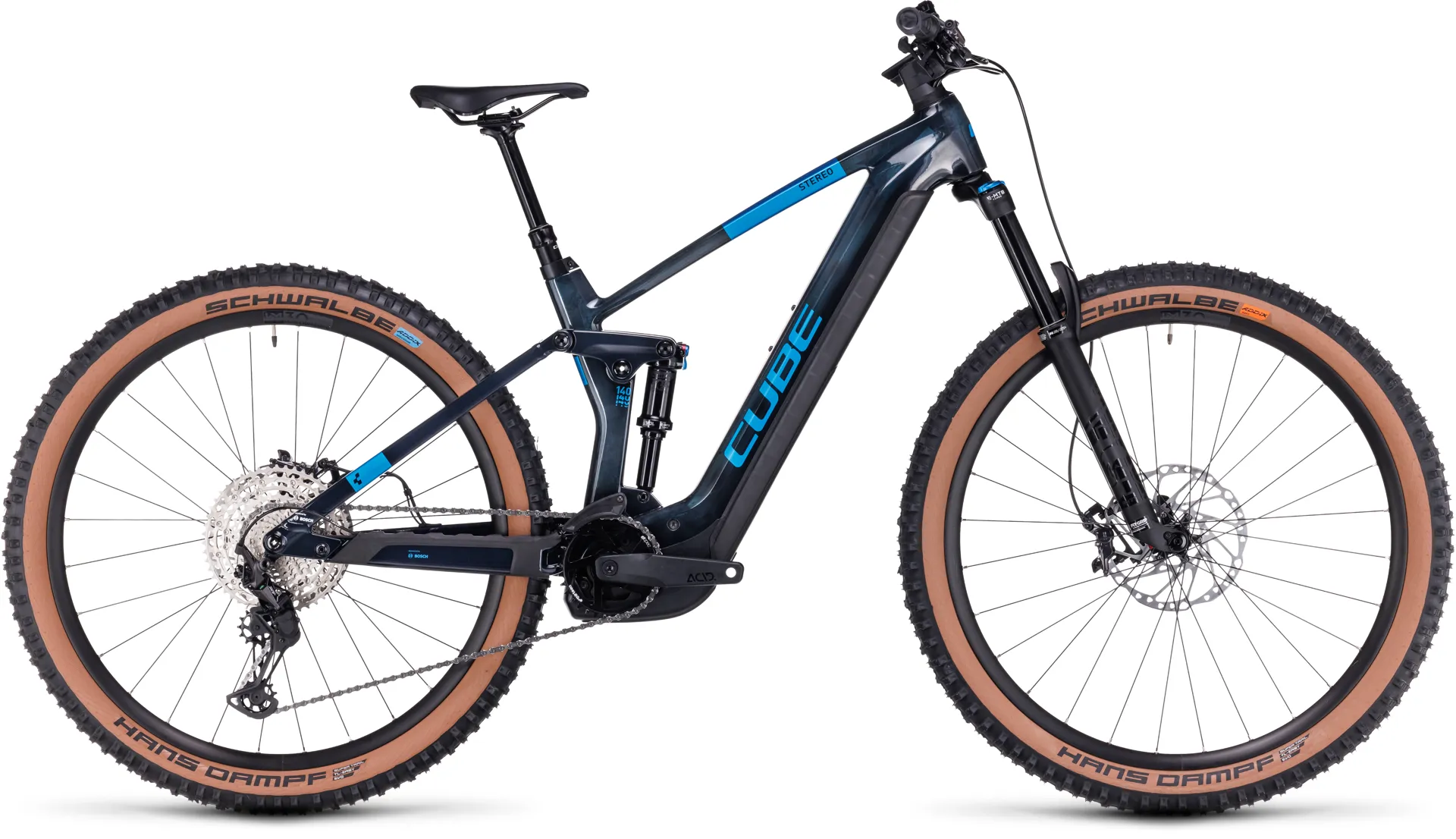

Cube Stereo Hybrid 140 HPC SLX 750 Electric Mountain Bike in Liquid Blue

£5,299.00
Pre-Order

With Pre-Order, you can purchase the latest items added to our store in advance of them arriving with us.

Your Pre-Order is prioritised (at no additional charge); meaning that as soon as the product arrives with us, we can wrap it straight back up; ready for collection via Click & Collect or despatch to you — it often never even hits the stock room shelves!

Pre-Launch

With Pre-Launch, the date when we expect to receive the product ourselves is still a little too hazy to be confident in accepting Pre-Orders.

So, instead, you can submit your email address against the item you are interested in and we will email you as soon as stock arrives on the system.

Estimated Delivery & Collection Dates

Estimated Delivery & Collection Dates are given on Pre-Order and Pre-Launch products. They are for indication purposes only and can change at any time without notice.

The dates we provide are based on indications given by our suppliers. Whenever we get updated information from our suppliers we will endeavour to update the Estimated Delivery & Collection Dates provided on product pages.

We estimate this will be ready for despatch to you or collection via Click & Collect on Undetermined

Hassle free returns & 28 day echange policy.

-Easy *Fast *Fair -

Download Returns PDF

Returns and Exchanges– for electric bikes and accessories

If you need to cancel the order or make an exchange under the distance selling regulations you must notify us within 14 days of receiving the item after which you will have a further 14 days to return the item. To do so please download the return form, complete it and include with the returned item. It couldn't be easier. We will process your exchange/refund as soon as we receive and open your return.

Items must be returned to the store you bought it from or your nearest store if purchased online. Shipping costs are paid by the buyer and are non refundable.

Refunds can only be made to the original card used for payment and if not known or available then we can at best offer a store credit to be used against future purchases.

Items must be returned in their original condition complete with all packaging, manuals, labels etc.

Custom, customised and special orders cannot be cancelled or returned. Riese & Muller eBikes are always configured to customer specifications and are therefore special orders and sales are final.

Used eBike Returns - We don't want you to be stuck with a bike you don't feel is right and so we accept returns for used bikes up to 28 days after purchase on the following conditions: 1. The condition is like new 2. All components and component packaging are present 3. All shipping, customisations and £10/mile of use will be charged for (minimum £100) along with a £50 restocking fee. 4. Used eBikes can only be exchanged and not refunded and this is entirely at our discretion.

Faulty Items
Faults - If your order arrives damaged or developes a fault we will use our wealth of experience as the UKs' very first ebike specialist to solve the issue quickly for you. Based on our support call history less than 16% of cases have required a visit to one of our sores. You can return a faulty item for a full refund within 30 days after which we reserve the right to have the opportunity to repair any faults. If you need any assistance we are here to help (even out of hours) simply contact, your nearest store or use our contact form.

Opened eBike Parts

We cannot accept returned eBike parts if the packaging has been opened. This is because components connected to faulty bikes may be damaged. To avoid disappointment we have a no nonsense professional diagnosis service available at all of our stores for a very reasonable set fee.

Cube Stereo Hybrid 140 HPC SLX 750 Electric Mountain Bike in Liquid Blue

Season:2023

Brand:Cube

Code:636163

Evolution never stops. That's why, across all frames in Cube's SizeSplit system, the Stereo Hybrid 140 HPC now features the ability to house up to a 750Wh battery under its dust- and splash-proof cover.

It means you can power the fourth-generation Bosch CX drive unit – with 85Nm of hill-devouring torque – on long rides, whatever frame size fits you best. The Boost 148 rear axle, large pivot bearings and All Mountain Geometry deliver assured handling, even when you're exploring the limits of the 140mm rear and 150mm front travel. Sram's UDH gear hanger helps protect against crash damage and is easily replaceable. And Integrated Cable Routing reduces maintenance and complements the clean lines of the full carbon main frame.
Technical Information
  • FRAME
    C:62® Monocoque Advanced Twin Mold Technology, Aluminium 6061 T6 Rear Triangle, Efficient Trail Control, FSP 4-Link, Agile Trail Geometry, Boost 148, UDH™, Full Integrated Battery, Advanced Internal Cable Routing
  • SIZE
    Size Split: 27.5: S (16") // 29: M (18"), L (20"), XL (22")
  • SUSPENSION FORK
    Fox 34 Float Rhythm, 2-Position Sweep-Adjust GRIP Damper, Tapered, 15x110mm, E-Bike Optimized, 150mm
  • SHOCK
    Fox Float DPS EVOL, 205x60mm (27.5: 185x55mm), Open/Medium/Firm Mode, Trunnion Mount
  • SHOCK HARDWARE
    Top: 54mm Trunnion Mount, Bottom: 22.2x8mm
  • DRIVE UNIT
    Bosch Drive Unit Performance CX Generation 4 (85Nm) Cruise (250Watt), Smart System
  • BATTERY
    Bosch PowerTube 750
  • REMOTE
    Bosch LED Remote
  • DISPLAY
    Bosch Kiox 300
  • CHARGER
    Bosch 4A
  • BRAKE SYSTEM
    Shimano XT BR-M8120, Hydr. Disc Brake (203/203)
  • REAR DERAILLEUR
    Shimano XT RD-M8100-SGS, ShadowPlus, 12-Speed
  • SHIFTERS
    Shimano Deore SL-M6100-IR, Direct Attach, Rapidfire-Plus
  • CRANKSET
    ACID E-Crank, 165mm (27.5: 36T // 29: 34T)
  • CHAIN GUIDE
    Reverse Flip-Guide E-Chain Guide, Direct Mount, GEN4
  • CASSETTE
    Shimano Deore CS-M6100, 10-51T
  • CHAIN
    Shimano CN-M6100
  • HANDLEBAR
    Newmen Evolution SL 318.25, 780mm
  • STEM
    CUBE Performance Stem E-MTB, 31.8mm
  • GRIPS
    ACID Disrupt, Soft Compound
  • HEADSET
    ACROS AZF-1035, ICR (Integrated Cable Routing), BlockLock 120°, Top Zero-Stack 1 1/2" (ZS 56mm), Bottom Zero-Stack 1 1/2" (ZS 56mm)
  • WHEELSET
    Newmen Performance 30, 28/28 Spokes, 15x110mm/12x148mm, Tubeless Ready
  • FRONT TYRE
    Schwalbe Hans Dampf, Addix Soft, Super Trail, Tubeless Easy, 2.6
  • REAR TYRE
    Schwalbe Hans Dampf, Addix Speedgrip, Super Trail, Tubeless Easy, 2.6
  • SEAT POST
    CUBE Dropper Post, Handlebar Lever, Internal Cable Routing, 31.6mm
  • SADDLE
    Natural Fit Venec
  • WEIGHT
    24,1 kg
Sizing Information

GEOMETRY



16" / 27.5 / S18" / 29 / M20" / 29 / L22" / 29 / XL
Seat tube370420460490
Top Tube Horizontal570600630660
Seat angle76°75.5°75.5°75.5°
Head tube angle66°66°66°66°
Chainstays450457457457
Head tube120108120138
Wheelbase1187122112521283
BB-Height to Hub16363636
Reach426447473497
Stack607626637653
Protrusion height - 80mm764763785

ERGONOMICS

16" / 27.5 / S18" / 29 / M20" / 29 / L22" / 29 / XL
Length seat post370420480480
Diameter seatpost31.631.631.631.6
Angle stem12°12°12°12°
Crank length165165165165
Diameter tire maximum726765765765
Width tire maximum67676767
Stem length50505060
Handlebar width780780780780
Stroke seatpost100125150150

All values are given in millimetres or degrees.
Professional Opinion
The secret of a really great bike? It should just get out of the way and let you enjoy the ride. That's why, for the Stereo Hybrid 140 HPC SLX 750, we started by choosing a 150mm Fox 34 Rhythm fork and matching Float DPS Performance shock. Combined with a Newmen Performance wheelset and Schwalbe 2.6in tyres, it's the closest we can get to a magic carpet ride. Bosch's fourth-generation CX drive unit and high-capacity 750Wh battery deliver your power to the trail via Shimano's slick-shifting, legendarily reliable XT 1x12 transmission. And strong, progressive Shimano XT four-piston hydraulic disc brakes with 203mm rotors bring you safely to a stop, on demand. With a remote dropper post included in the mix, you simply need to add your spirit of adventure.
