Frame
Aluminium Superlite, Gravity Casting Technology, Agile Comfort Geometry, Tapered Headtube, Full Integrated Battery, Kickstand/Fender/Carrier Mounting Points
Size
Men: S (50cm), M (54cm), L (58cm), XL (62cm); Trapeze: XS (46cm), S (50cm), M (54cm); Easy Entry: XS (46cm), S (50cm), M (54cm), L (58cm)
Fork
SR Suntour NVX30 Coil, 100mm
Drive Unit
Bosch Drive Unit Performance Generation 3 (65Nm) Cruise (250Watt)
Battery
Bosch PowerTube 625
Display
Bosch Purion
Charger
Bosch 2A
Brake System
Shimano BR-MT200, Hydr. Disc Brake (180/180)
Rear Derailleur
Shimano RD-M3100-SGS, 9-Speed
Shifters
Shimano SL-M3100-R, Rapidfire-Plus
Crankset
ACID E-Crank, 38T, 175mm (EE: 170mm)
Cassette
Shimano CS-HG201, 11-36T
Chain
KMC X9
Front Hub
Shimano HB-TX505, QR, Centerlock
Rear Hub
Shimano FH-TX505, QR, Centerlock
Rims
CUBE EX23, 32H, Disc, Tubeless Ready
Tyres
Schwalbe Land Cruiser, Active, 55-622
Stem
CUBE Performance Stem Pro, 31.8mm
Handlebar
CUBE Comfort Trail Bar, 720mm
Grips
Natural Fit All Terrain
Seat Post
CUBE Performance Post, 30.9mm
Seatclamp
CUBE Varioclose, 34.9mm

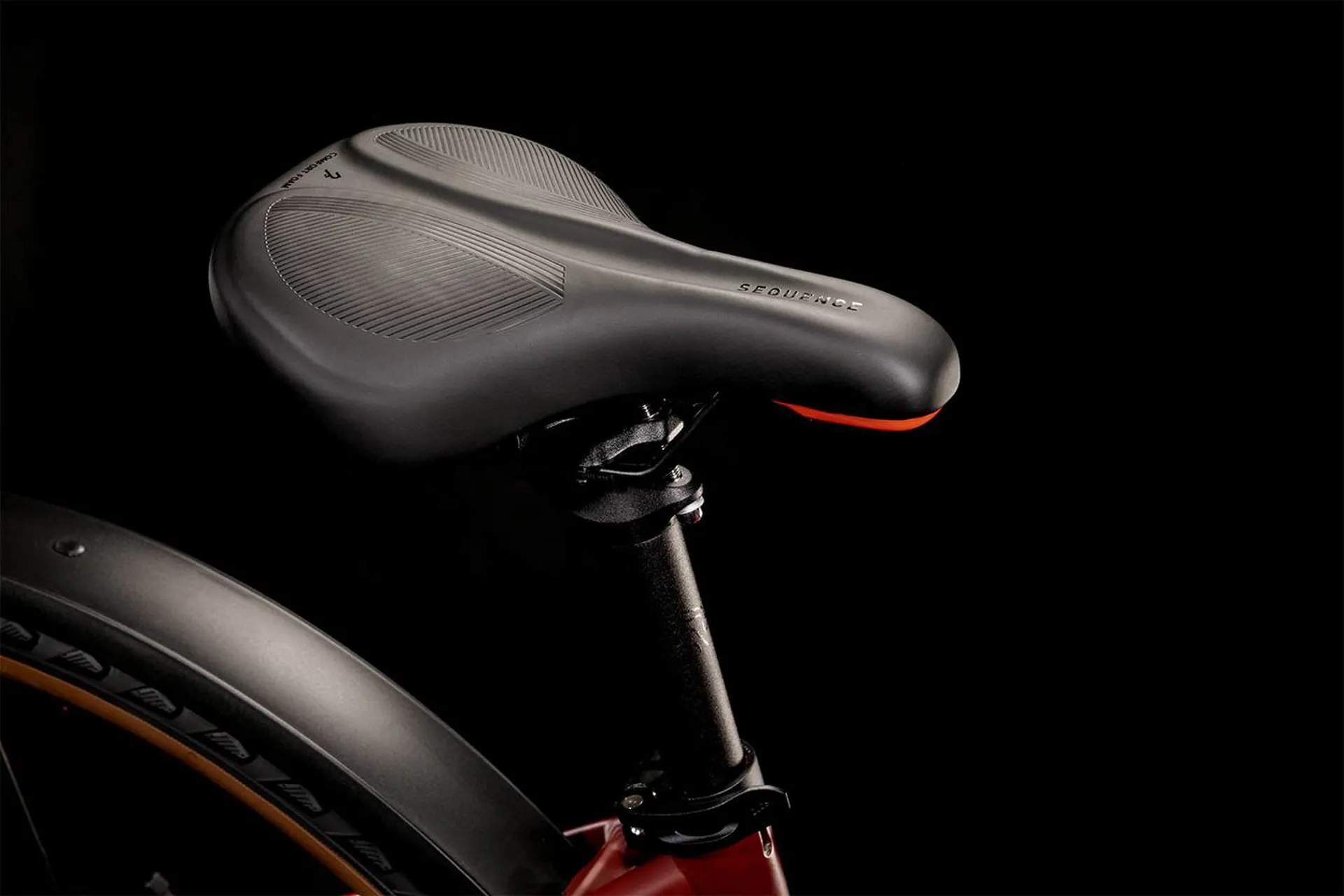

Saddle
Natural Fit Sequence Comfort
Headset
M/Z: ACROS AZF-1039, 1 1/8" straight, Top Zero-Stack 1 1/8" (ZS 44mm), Bottom Zero-Stack 1 1/2" (ZS 56mm) // EE: ACROS AZX-1041, BlockLock 135°, 1 1/8" straight, Top Zero-Stack 1 1/8" (ZS 44mm), Bottom Zero-Stack 1 1/2" (ZS 56mm)
Pedals
ACID PP Trekking

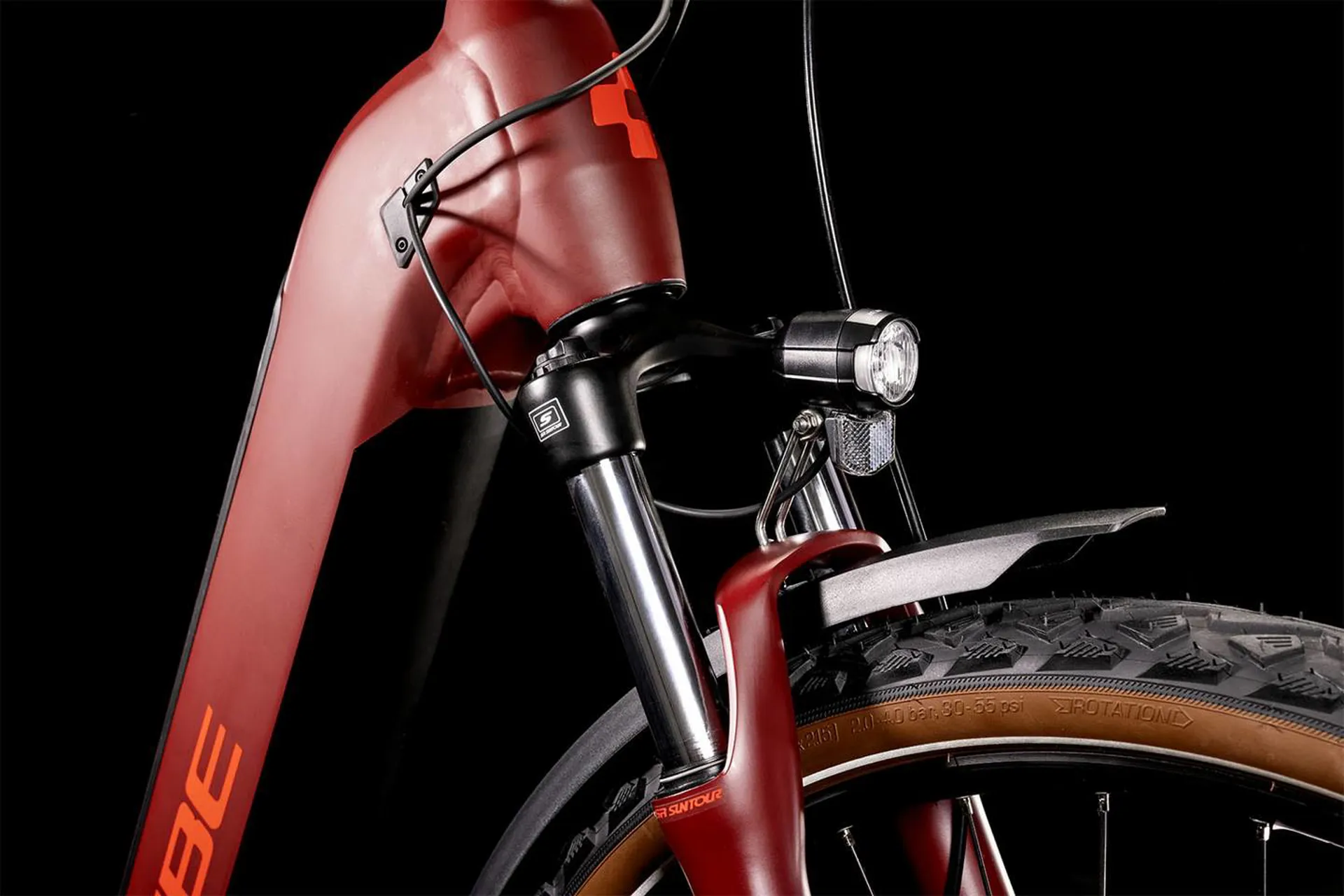

Front Light
CUBE Shiny 50 Lux, 12V, DC
Rear Light
ACID Mudguard Rear Light PRO-E, 12V, DC
Kickstand
CUBEstand Cmpt
Mudguards
ACID 65 BB-Mount
Bell
Easy Bell
Colour
darkred´n´red
Weight
25,2 kg
Art. No
532662
Price
n/a
