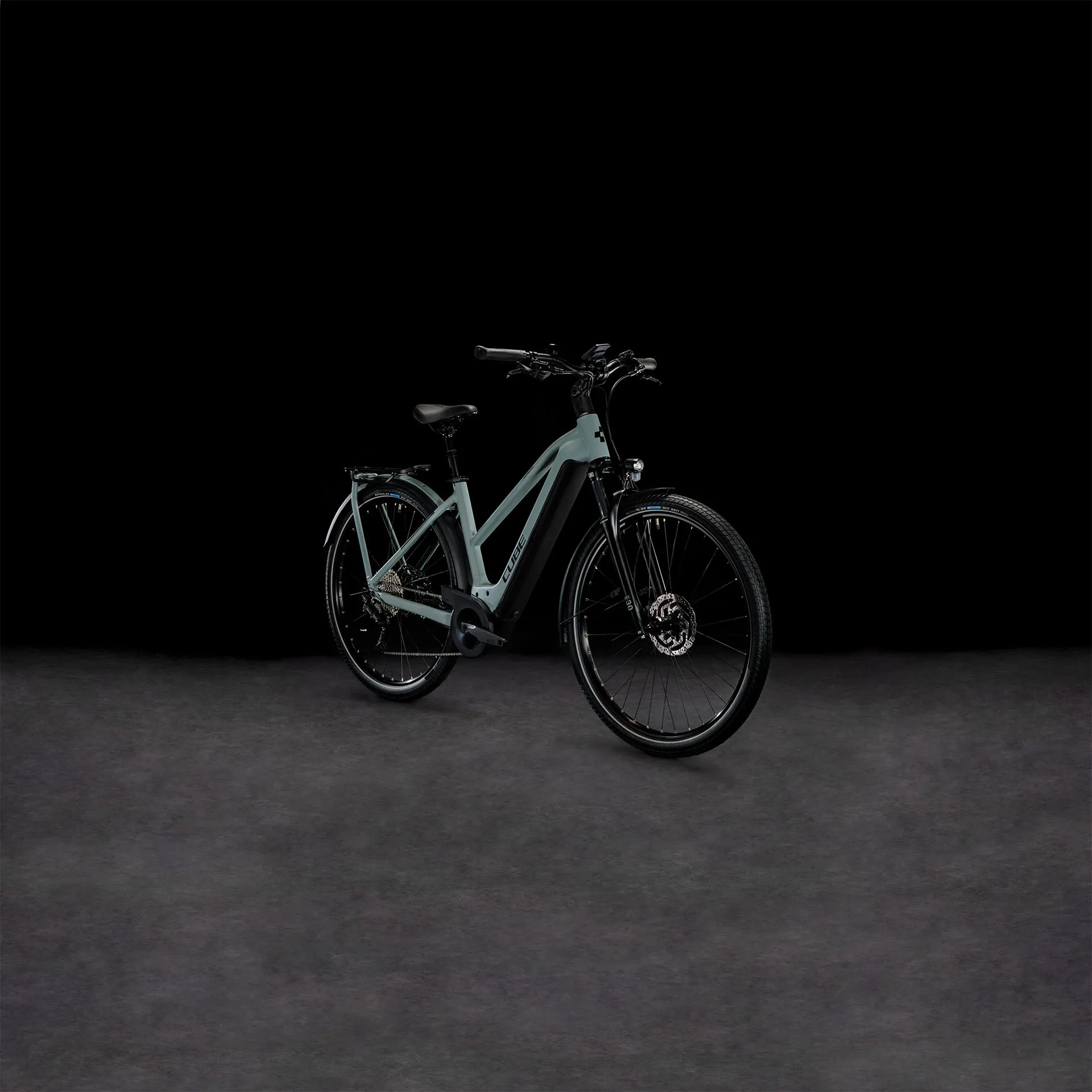

Cube Kathmandu Hybrid One 750 Electric Bike in Swamp Grey

Season:2023

Brand:Cube

Code:631173

Designed for comfort, versatility and durability, the Kathmandu's frame – whether you choose the Men's version, the Trapeze or the Easy Entry – incorporates a high-capacity Bosch battery for the best possible range.

Efficient Comfort Geometry works exactly the way you'd expect it to, meaning you can pedal in comfort for miles and miles. And the Integrated Carrier 3.0 is as strong as its predecessors, but even better integrated with the rear mudguard for an elegantly understated look that you'll love – and it's the perfect way to add accessories and carry whatever you need with you.
Technical Information

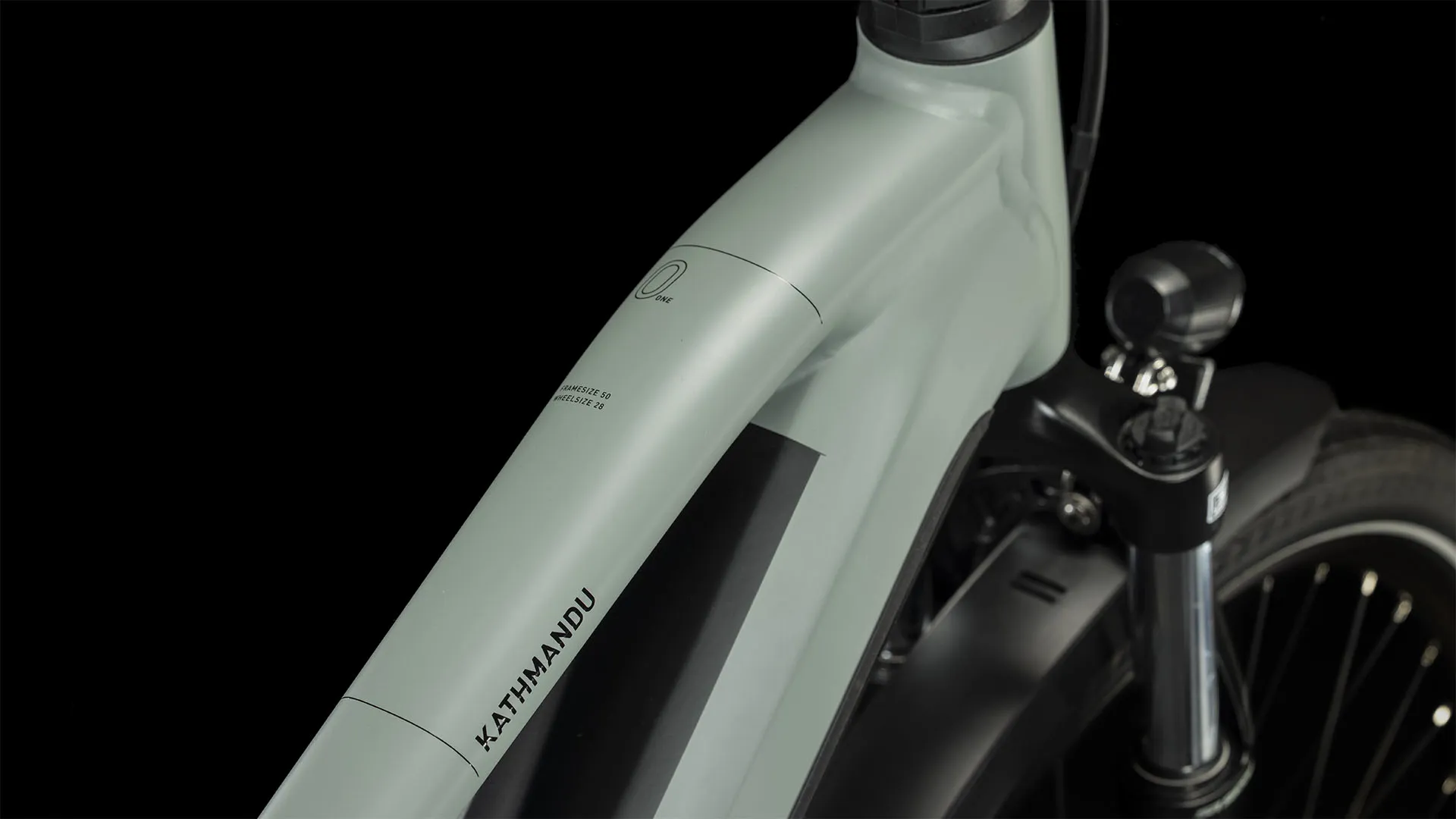

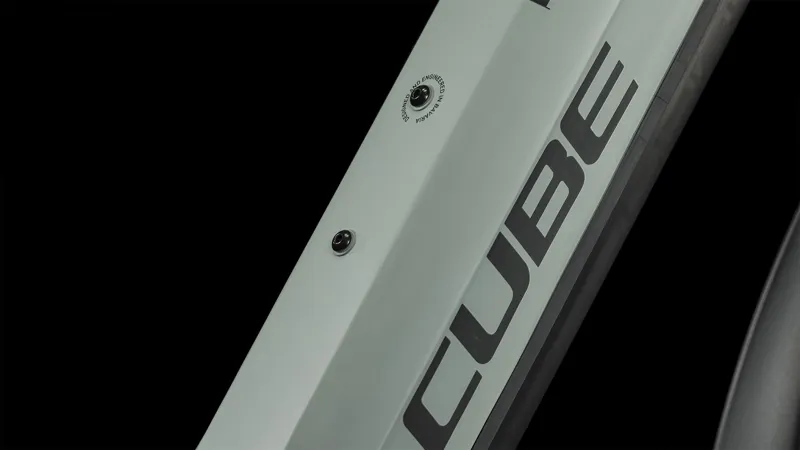

  • FRAME
    Aluminium Superlite, Gravity Casting Technology, Efficient Comfort Geometry, Boost148, Full Integrated Battery, Integrated Carrier 3.0, Advanced Internal Cable Routing, 1.5 Headtube (EE: Tapered Headtube)
  • SIZE
    Men: S (50cm), M (54cm), L (58cm), XL (62cm); Trapeze: S (50cm), M (54cm); Easy Entry: XS (46cm), S (50cm), M (54cm), L (58cm)
  • SUSPENSION FORK
    SR Suntour NVX30 Coil, 100mm
  • DRIVE UNIT
    Bosch Drive Unit Performance CX Generation 4 (85Nm) Cruise (250Watt), Smart System
  • BATTERY
    Bosch PowerTube 750
  • REMOTE
    Bosch LED Remote

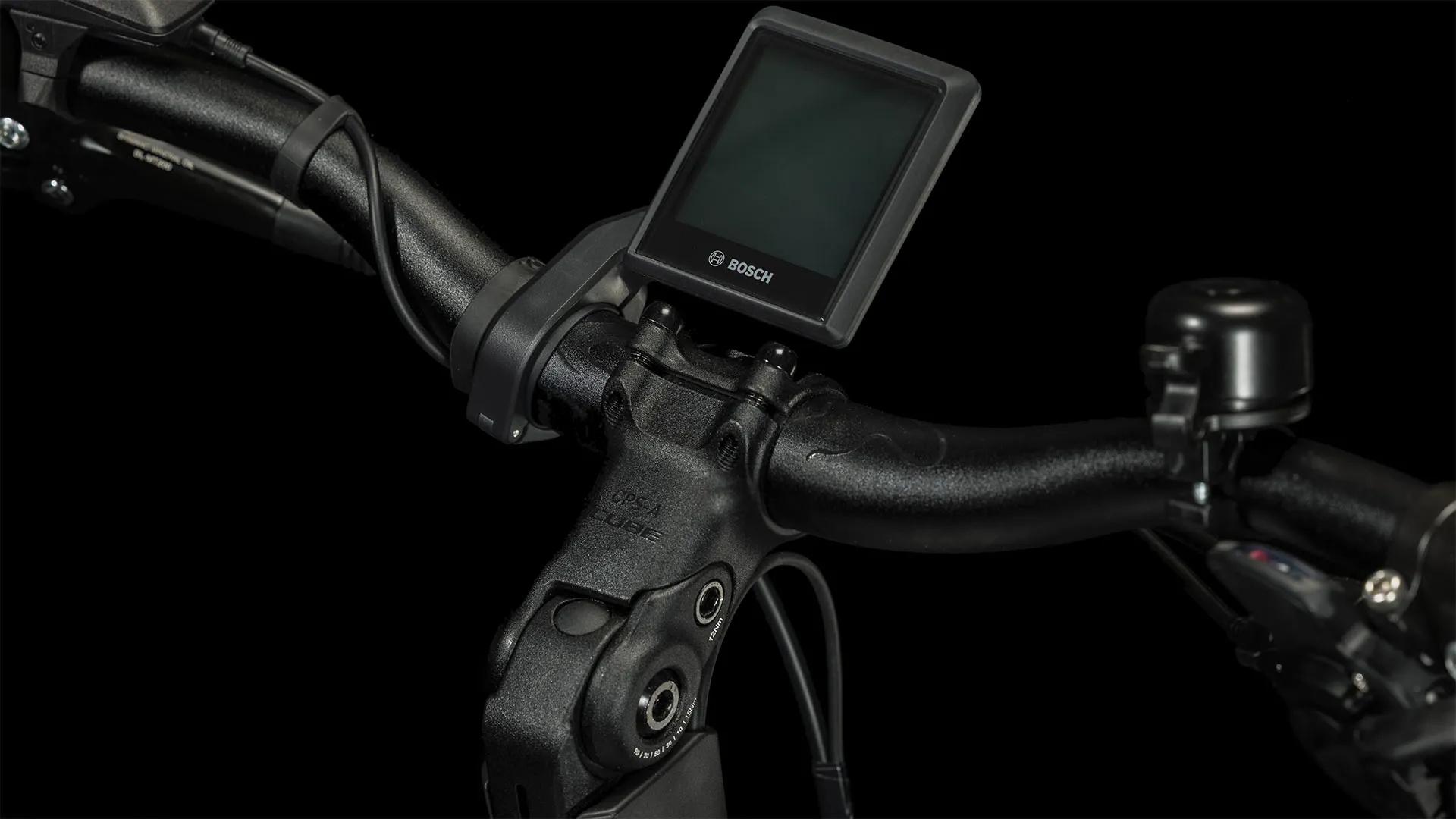

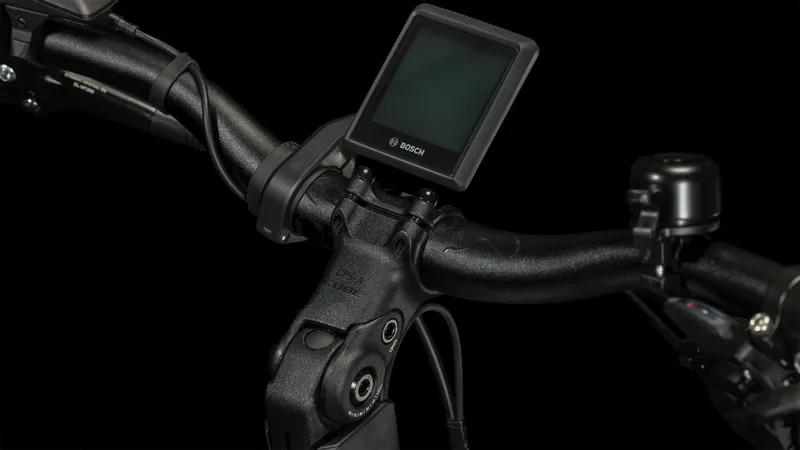

  • DISPLAY
    Bosch Intuvia 100
  • CHARGER
    Bosch 4A
  • BRAKE SYSTEM
    Shimano BR-MT200, Hydr. Disc Brake (180/180)
  • REAR DERAILLEUR
    Shimano Deore RD-M4120-SGS, 10-Speed
  • SHIFTERS
    Shimano Deore SL-M4100-R, Rapidfire-Plus
  • CRANKSET
    ACID E-Crank, 40T, 175mm (EE: 170mm)
  • CASSETTE
    Shimano Deore CS-M4100, 11-42T
  • CHAIN
    KMC X10
  • HANDLEBAR
    CUBE Comfort Trail Bar, 700mm
  • STEM
    CUBE Comfort Stem Pro, 31.8mm, Adjustable
  • GRIPS
    ACID Travel Comfort
  • HEADSET
    M/Z: ACROS AZF-1035, ICR (Integrated Cable Routing), BlockLock 120°, Top Zero-Stack 1 1/2" (ZS 56mm), Bottom Zero-Stack 1 1/2" (ZS 56mm) // EE: ACROS AZX-1040, BlockLock 135°, Top Zero-Stack 1 1/8" (ZS 44mm), Bottom Zero-Stack 1 1/2" (ZS 56mm)
  • FRONT HUB
    Shimano HB-TX505, QR, Centerlock
  • REAR HUB
    Shimano FH-MT400-B, 12mm, Boost, Centerlock
  • RIMS
    Rodi Blackrock 23, 36H, Disc, Tubeless Ready
  • TYRES
    Schwalbe Big Ben, Performance, K-Guard, 55-622

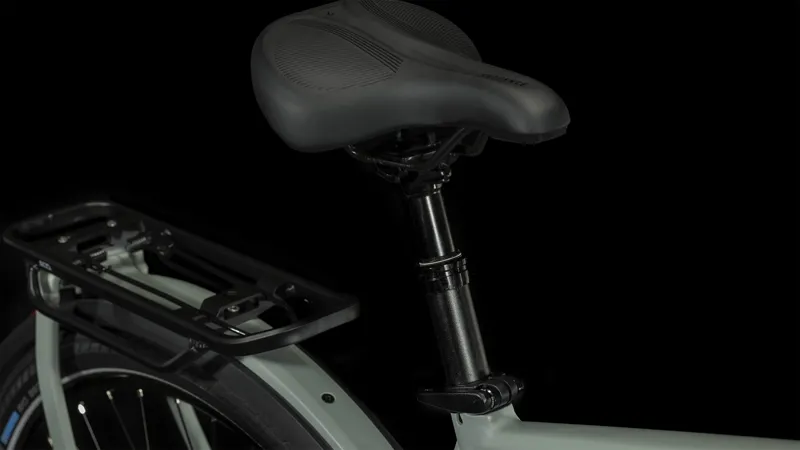

  • SEAT POST
    CUBE Suspension Seatpost HD, 30.9mm
  • SADDLE
    Natural Fit Sequence Comfort
  • PEDALS
    ACID PP Trekking

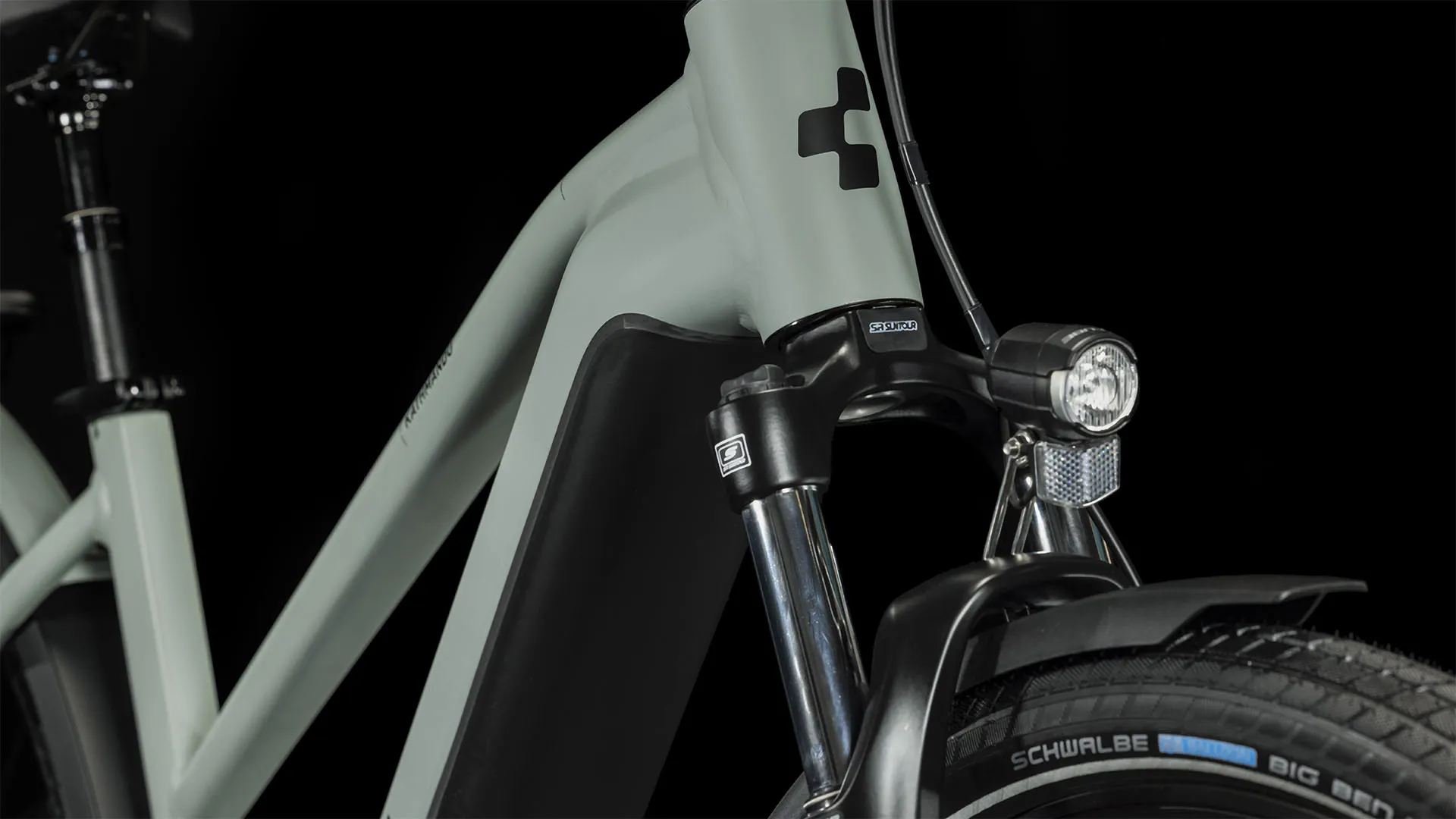

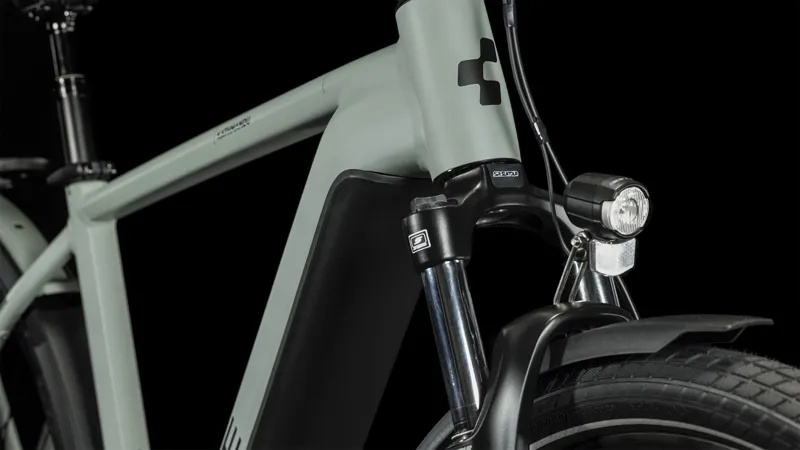

  • FRONT LIGHT
    CUBE Shiny 50 Lux, 12V, DC

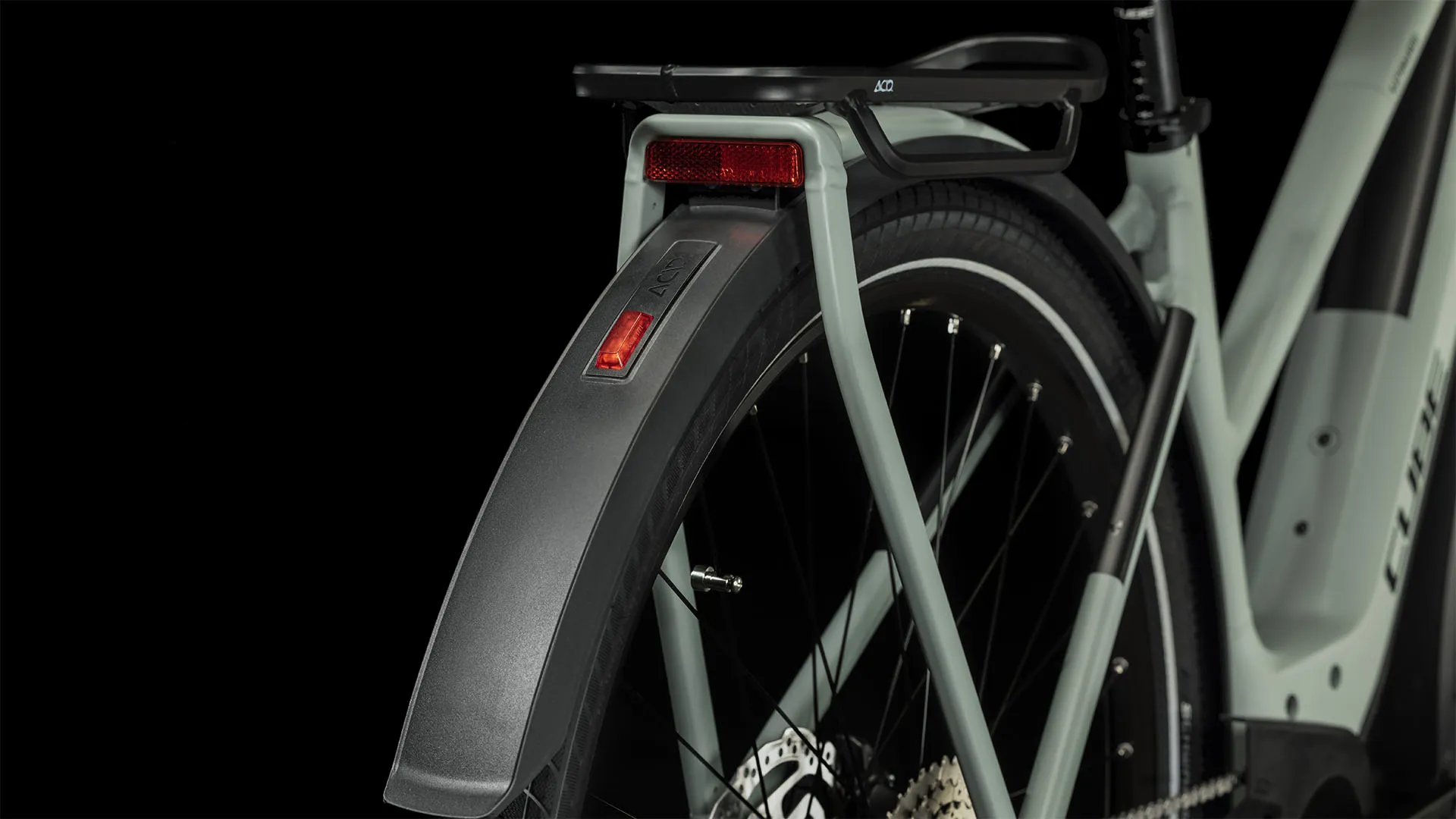

  • REAR LIGHT
    ACID Mudguard Rear Light PRO-E, 12V, DC
  • KICKSTAND
    ACID FM Pure Kickstand
  • MUDGUARDS
    ACID 65 Integrated Carrier 3.0
  • BELL
    Easy Bell

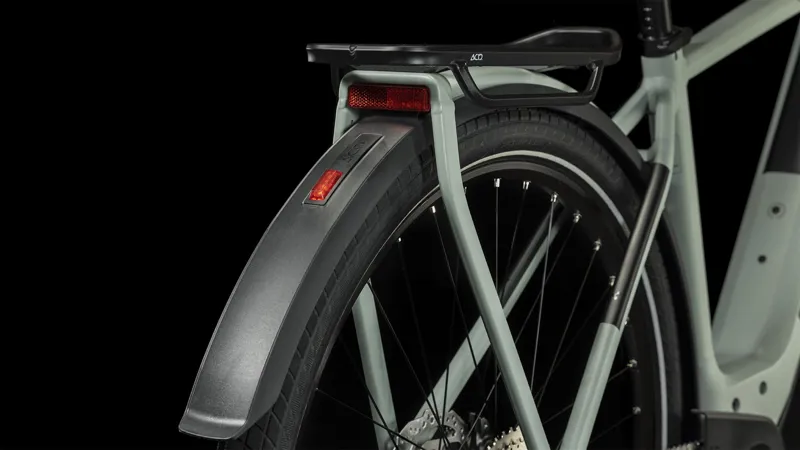

  • CARRIER
    ACID Integrated Carrier 3.0, CUBE Adapter Compatible
  • WEIGHT
    27,3 kg
Sizing Information

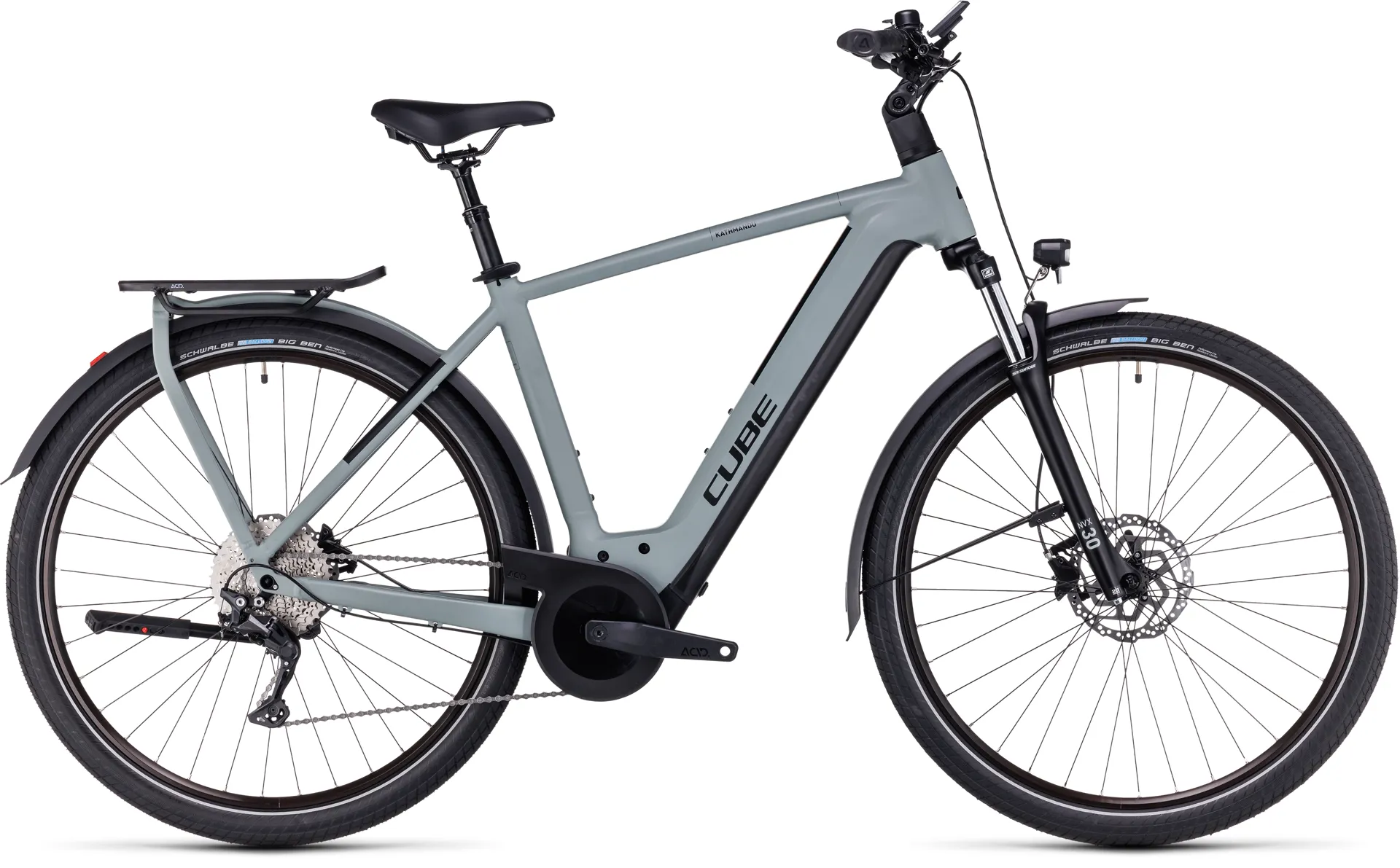

CROSSBAR

GEOMETRY



50 cm / S54 cm / M58 cm / L62 cm / XL
Seat tube480520560600
Top Tube Horizontal634635640650
Seat angle74°74°74°74°
Head tube angle67.5°67.5°67.5°67.5°
Chainstays460460460460
Head tube124124143164
Wheelbase1196119712031215
BB-Height to Hub75757575
Protrusion height - 50mm786815849883
Protrusion height - 80mm797823856889
Reach451452451455
Stack644644661681

ERGONOMICS

50 cm / S54 cm / M58 cm / L62 cm / XL
Length seat post300300300300
Diameter seatpost30.930.930.930.9
Angle stem31°31°31°31°
Crank length175175175175
Diameter tire maximum751751751751
Width tire maximum62626262
Stem length65659090
Handlebar width700700700700

All values are given in millimetres or degrees.

TRAPEZE

GEOMETRY



50 cm / S54 cm / M
Seat tube480520
Top Tube Horizontal633635
Seat angle74°74°
Head tube angle67.5°67.5°
Chainstays460460
Head tube133144
Wheelbase11951198
BB-Height to Hub7575
Protrusion height - 50mm651663
Protrusion height - 80mm677689
Reach447446
Stack652662

ERGONOMICS

50 cm / S54 cm / M
Length seat post300300
Diameter seatpost30.930.9
Angle stem31°31°
Crank length175175
Diameter tire maximum751751
Width tire maximum6262
Stem length6565
Handlebar width700700

All values are given in millimetres or degrees.

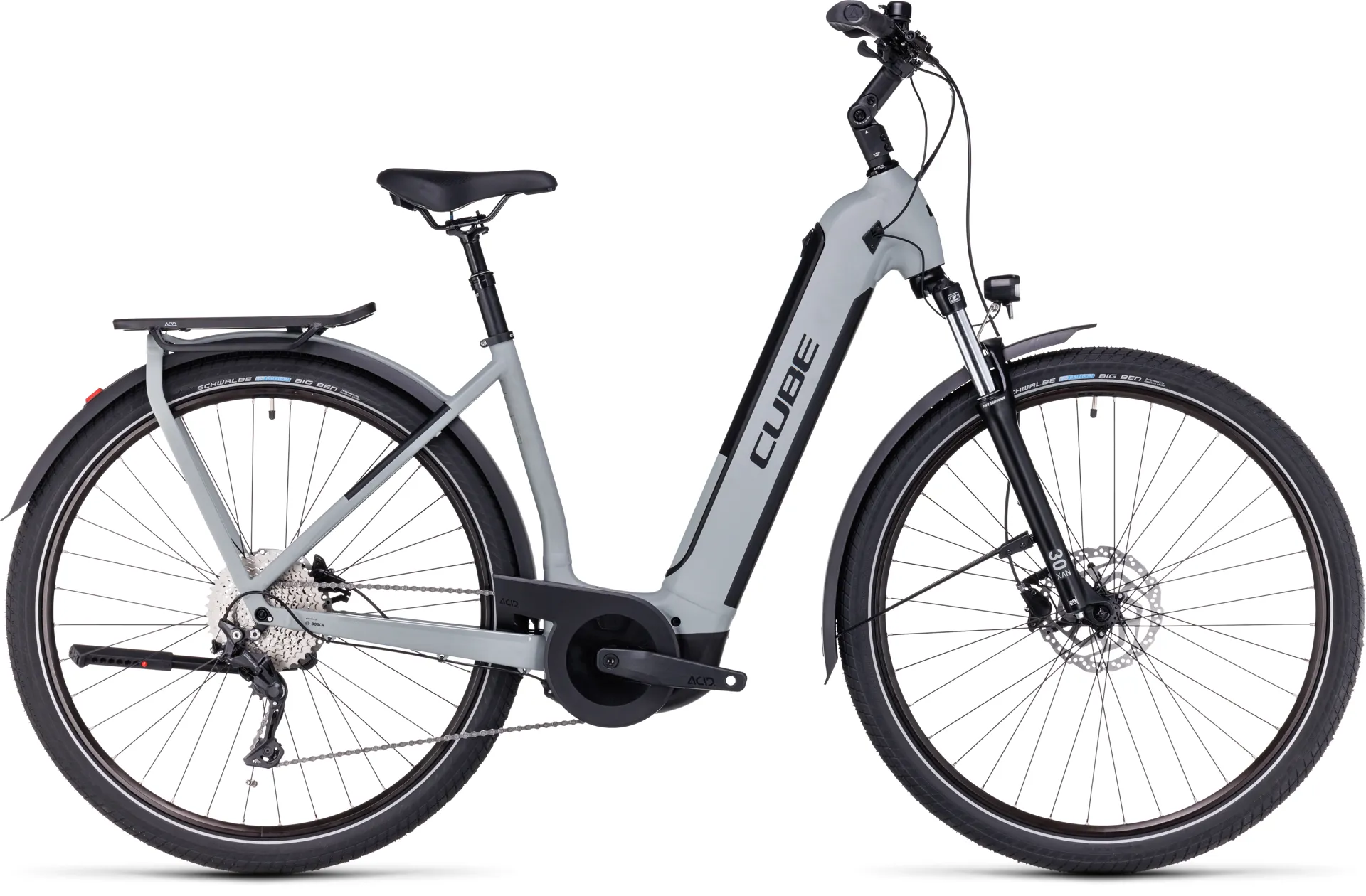

EASY ENTRY

GEOMETRY



46 cm / XS50 cm / S54 cm / M58 cm / L
Seat tube440480520560
Top Tube Horizontal600600610620
Seat angle75°75°75°75°
Head tube angle68.5°68.5°68.5°68.5°
Chainstays490490490490
Head tube150150155160
Wheelbase1168116811791189
BB-Height to Hub75757575
Protrusion height - 80mm495495495495
Reach393393402411
Stack673673678682

ERGONOMICS

46 cm / XS50 cm / S54 cm / M58 cm / L
Length seat post300300300300
Diameter seatpost30.930.930.930.9
Crank length170170170170
Diameter tire maximum751751751751
Width tire maximum62626262
Stem length65909090
Handlebar width700700700700

All values are given in millimetres or degrees.
Professional Opinion

The Kathmandu Hybrid ONE is the bike to take you wherever your imagination leads you. With Bosch's smooth, powerful fourth-generation CX drive unit, a high-capacity battery and Shimano's easy-to-use, legendarily reliable 1x10 gears, you'll be able to make light work of any journey. Across town or across countries, the Suntour suspension fork, suspension seatpost and adjustable stem will keep you comfortable. Powerful Shimano hydraulic disc brakes give you the stopping power you need in all weathers. And a full complement of accessories, from lights and mudguards to the latest generation of our Integrated Carrier, means you're ready for anything.
