Discover the Chamonix C5 HMS

The Chamonix C5 HMS is the ideal bicycle for commuting to and from work, and for leisure.

Discover the Chamonix C5 HMS

The Chamonix C5 HMS is the ideal bicycle for commuting to and from work, and for leisure.
Gazelle

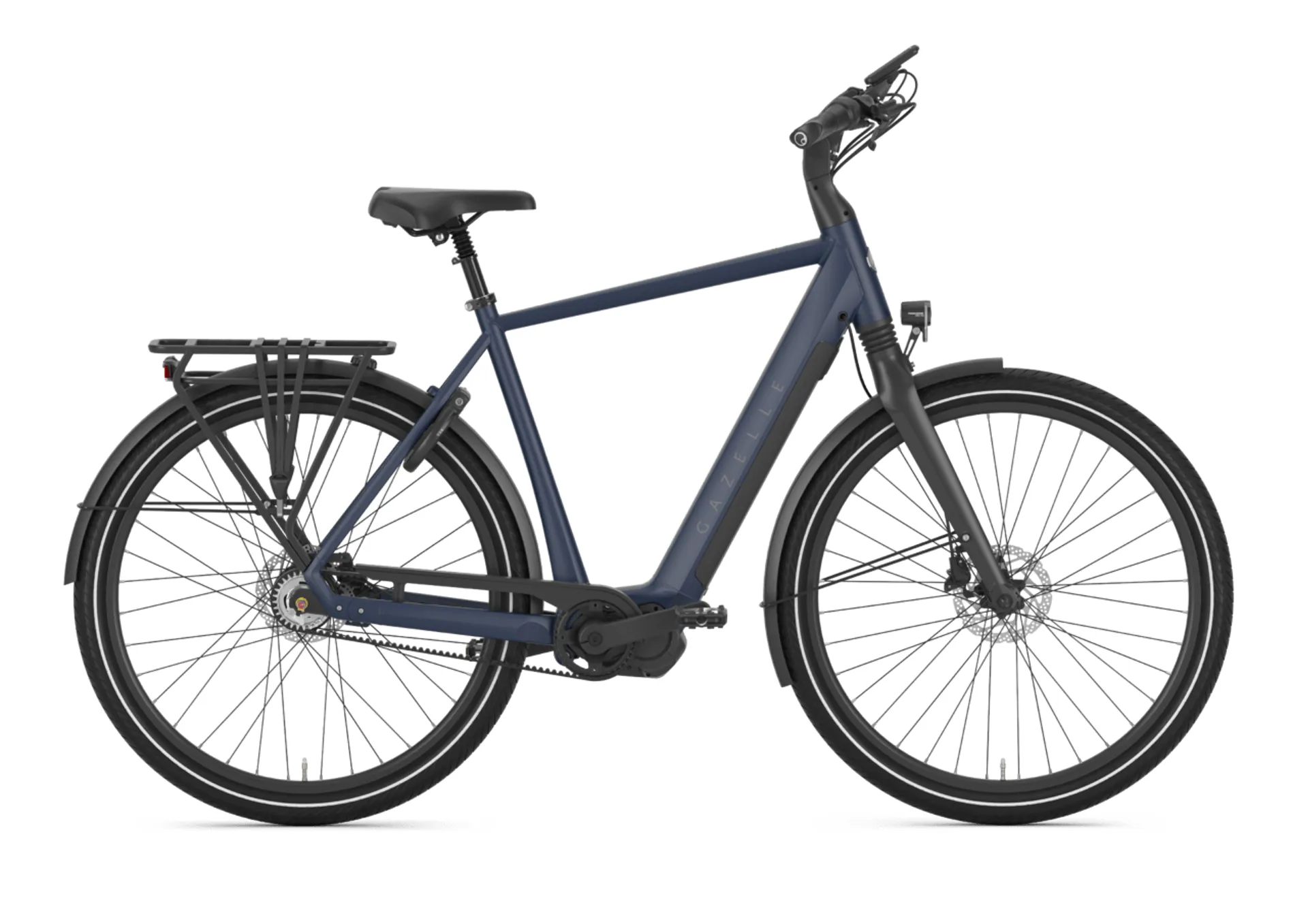

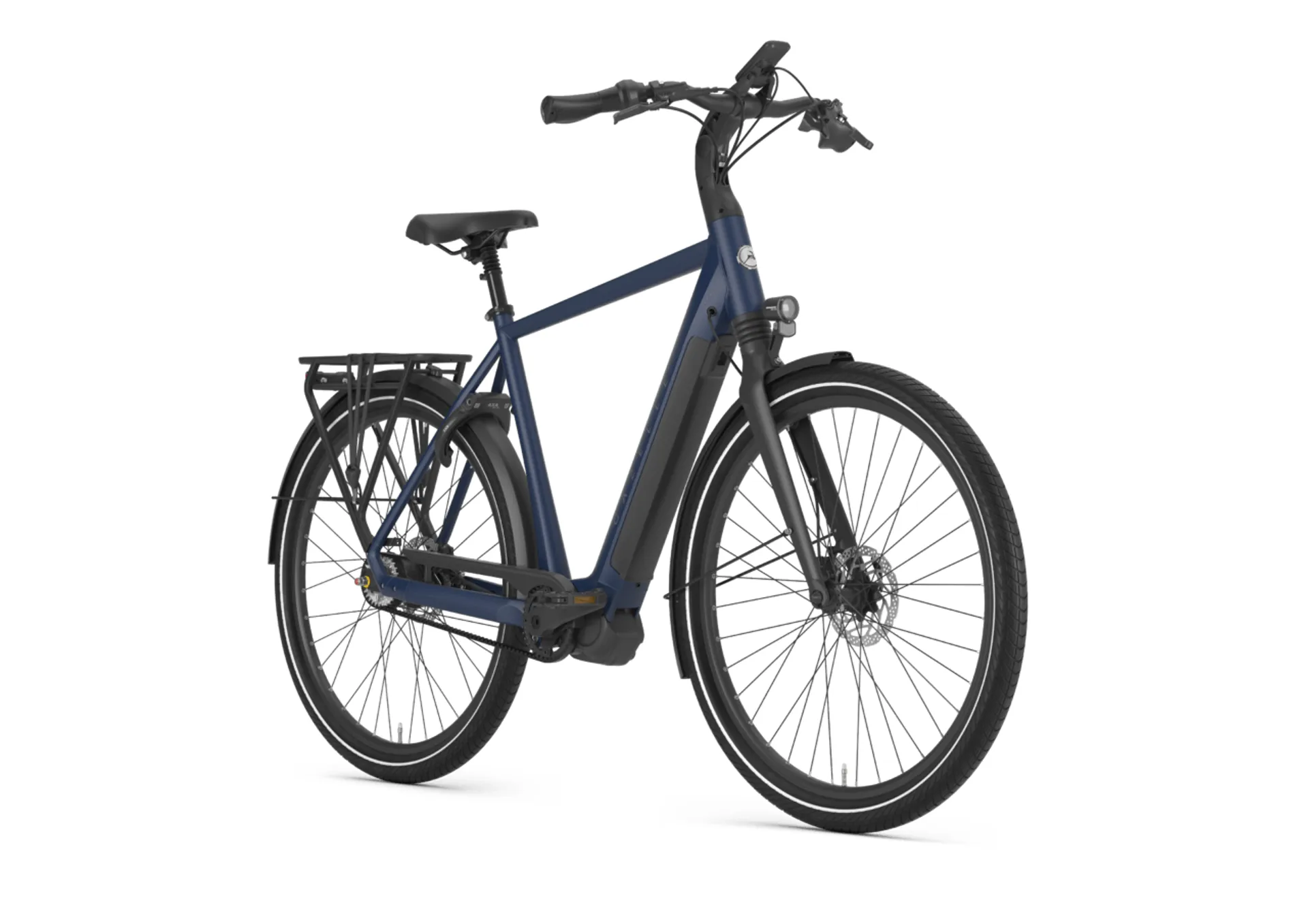

Gazzelle Chamonix C5 HMS 630Wh Electric Bike Midnight Blue

£3,269.00
I'm a Pre-launch Product. Find out more
Pre-Launch

With Pre-Launch, the date when we expect to receive the product ourselves is still a little too hazy to be confident in accepting Pre-Orders.

So, instead, you can submit your email address against the item you are interested in and we will email you as soon as stock arrives on the system.

Estimated Delivery & Collection Dates

Estimated Delivery & Collection Dates are given on Pre-Order and Pre-Launch products. They are for indication purposes only and can change at any time without notice.

The dates we provide are based on indications given by our suppliers. Whenever we get updated information from our suppliers we will endeavour to update the Estimated Delivery & Collection Dates provided on product pages.

We estimate this will be ready for despatch to you or collection via Click & Collect on Undetermined

Hassle free returns & 28 day echange policy.

-Easy *Fast *Fair -

Download Returns PDF

Returns and Exchanges– for electric bikes and accessories

If you need to cancel the order or make an exchange under the distance selling regulations you must notify us within 14 days of receiving the item after which you will have a further 14 days to return the item. To do so please download the return form, complete it and include with the returned item. It couldn't be easier. We will process your exchange/refund as soon as we receive and open your return.

Items must be returned to the store you bought it from or your nearest store if purchased online. Shipping costs are paid by the buyer and are non refundable.

Refunds can only be made to the original card used for payment and if not known or available then we can at best offer a store credit to be used against future purchases.

Items must be returned in their original condition complete with all packaging, manuals, labels etc.

Custom, customised and special orders cannot be cancelled or returned. Riese & Muller eBikes are always configured to customer specifications and are therefore special orders and sales are final.

Used eBike Returns - We don't want you to be stuck with a bike you don't feel is right and so we accept returns for used bikes up to 28 days after purchase on the following conditions: 1. The condition is like new 2. All components and component packaging are present 3. All shipping, customisations and £10/mile of use will be charged for (minimum £100) along with a £50 restocking fee. 4. Used eBikes can only be exchanged and not refunded and this is entirely at our discretion.

Faulty Items
Faults - If your order arrives damaged or developes a fault we will use our wealth of experience as the UKs' very first ebike specialist to solve the issue quickly for you. Based on our support call history less than 16% of cases have required a visit to one of our sores. You can return a faulty item for a full refund within 30 days after which we reserve the right to have the opportunity to repair any faults. If you need any assistance we are here to help (even out of hours) simply contact, your nearest store or use our contact form.

Opened eBike Parts

We cannot accept returned eBike parts if the packaging has been opened. This is because components connected to faulty bikes may be damaged. To avoid disappointment we have a no nonsense professional diagnosis service available at all of our stores for a very reasonable set fee.

Gazzelle Chamonix C5 HMS 630Wh Electric Bike Midnight Blue

Season:2022

Brand:Gazelle

Code:CHAC5HMSBLU

  • Unique cable integration and the handlebar always in the right position thanks to the unique Switch stem
  • Powerful disc brakes that can be applied progressively
  • Practically no maintenance due to the Gates belt drive
  • Always the right gear with the Nexus 5 hub

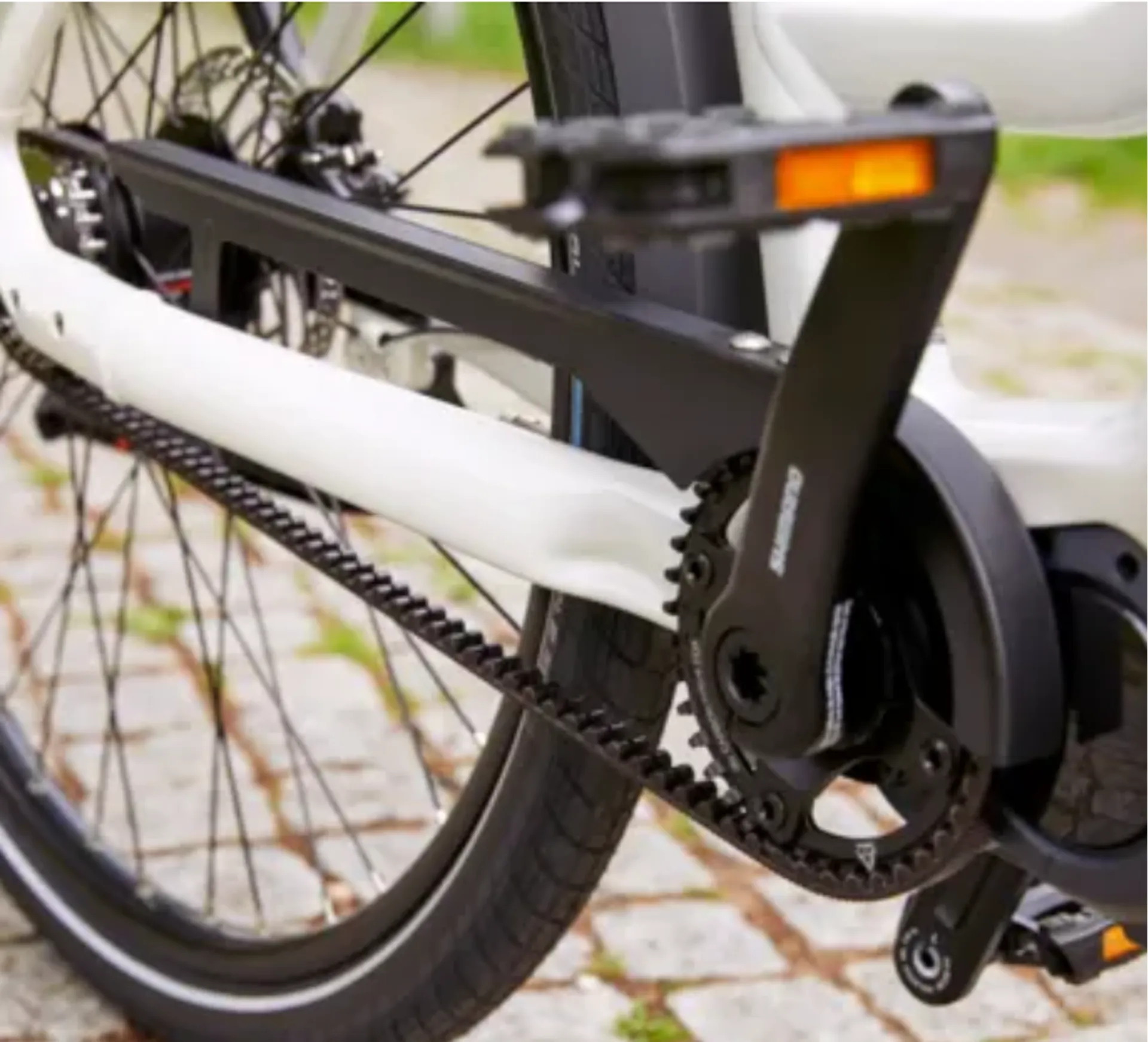

Belt drive

The Gates belt drive is the perfect alternative for the chain. This technology requires little maintenance. In contrast to the chain, you do not have to lubricate or wax it. When cycling the belt is as quiet as a mouse, thereby not disrupting your cycling pleasure. A belt drive is also lighter than a chain. In short; with the belt you are assured of any years of cycling pleasure.

No more battery stress

The Chamonix HMS is fitted with the powerful Shimano STEPS E6100. This mid-mounted motor is ideal for all conceivable trips that you may make with the Chamonix. As you would probably go on some longer trips as well with the Chamonix HMS, you also have the option of choosing a battery with the extra large capacity of 630 Wh. This guarantees endless cycling pleasure.

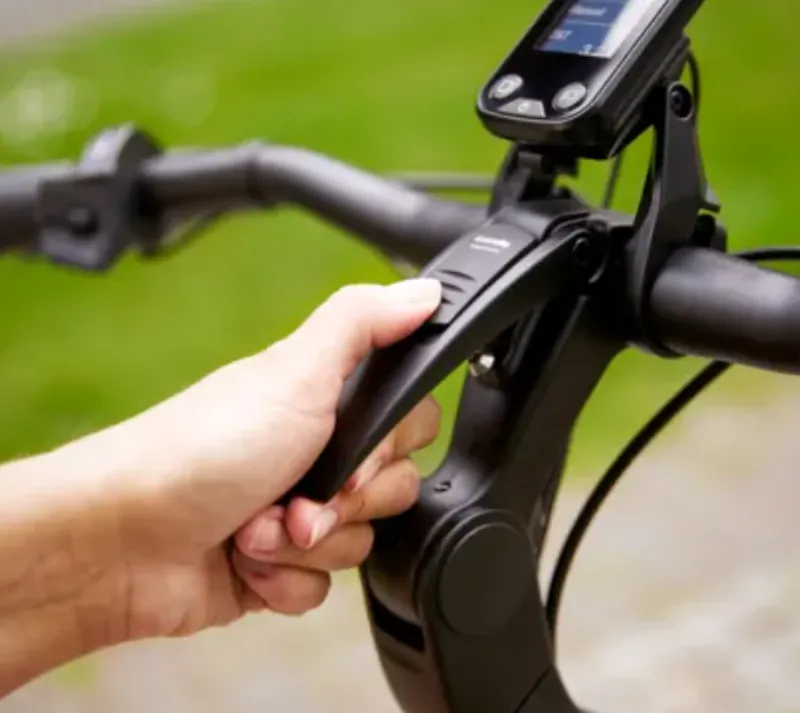

Adjustable handlebar stem

The adjustable handlebar stem ensures always the right sitting posture, regardless of the conditions and intended use. Do you want a sporty or a more comfortable sitting posture on the Chamonix HMS? Within a few seconds you can adjust the handlebar stem to your preferred setting. The cables on the front of the Chamonix HMS are also neatly concealed.


Technical Information
Gear system description5-speed Shimano Nexus
Engine modelShimano STEPS E6100 (60 Nm)
Brake systemhydraulic brakes, 2 piston
ModelChamonix
Colornamefrozen blue, midnight blue
Fork suspension typeinternal to headset
Weight in Lb.55.5
Sitting positionUpright, Active
Frame shapeHigh-step, low-step
Size49, 53, 57, 61, 65
Frame descriptionSporty and stable aluminium frame with 70.5⁰ head tube angle and 71.5⁰ saddle tube angle. Cables are nicely concealed through the unique cable integration system. Battery integrated in the frame for large capacity (630 Wh)
Frame materialAluminium
Fork materialAluminium
Wheelsize28"
RimsMach1 650, Double-walled aluminium for extra strong and efficient cycling performance
TiresSchwalbe Big Apple
Tire colorblack
Handlebar descriptionAluminium, slightly curved model
Adjustable stemYes
Grip typeErgon GC10
GripsPlastic handlebar grips with ergonomic form for a better distribution of pressure on the hands
SaddleBBB Diamond
Seatpost suspensionYes
Ebike system short descriptionShimano STEPS
Engine locationmid-drive motor
Max speed (mph)15,5 mph
Torque60
Engine modelShimano STEPS E6100 (60 Nm)
Ebike sensorsrotation sensor, speed sensor, pedal force sensor
Battery typeLi-ion
Battery positionIntegrated into frame
Battery replaceableYes
Battery systemShimano 630 Wh
Amount of support levels3
Display control unitYes
Walk assistYes
Display ModelShimano Steps LCD center
Display detachableYes
Warranty frame10 years’ guarantee
Warranty fork5 years’ guarantee
Warranty paint5 years’ guarantee
Warranty other parts2 years’ guarantee
Warranty battery2 years’ guarantee
Warranty motor2 years’ guarantee
Warranty diplay2 years’ guarantee
Lock descriptionRing lock with an option for a plug-in cable to attach your bike to a fixed object for extra protection against theft
Lock safety levelART ** certified
Lock TypeAxa Block XXL
Chaincase descriptionAluminum
Kickstand typedrop-down rear stand
Chaincase typeChain guard
Rear carrier descriptionAluminum MIK HD system carrier
Carrier MIK systemYes
